- Performance Collection

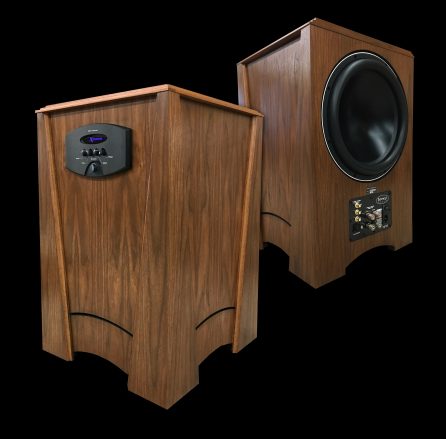

Xtreme XD
The Xtreme XD has the power and speed to keep up with Whisper XDS. Dynamic braking, a new 15” driver with spun aluminum black cone and a massive 35 lb. magnet structure, plus 15" passive radiator and additional ICEpower® amplification make this unit absolutely world class. Bass with BOUNCE, not boom.
Our subwoofers are not just gorgeous pieces of furniture, but have the guts and internal volume to get the job done efficiently. The Xtreme XD features a solid granite black inlay and a new 15” driver with spun aluminum black cone and a massive 35 lb. magnet structure. This active 15" driver features an extended stroke and is coupled with a 15" passive radiator, mounted on the bottom of the gorgeous cabinet.
The front mounted preamp control panel allows continuous adjustment of level, crossover frequency, and phase. A special blend EQ control assures perfect integration with your speaker system. The internal amplifier modules are the renowned ICEpower® design. These extremely reliable, wideband units are of the same type used in our flagship systems.
The 1000 watt Xtreme XD also incorporates a dynamic braking coil which utilizes driver back EMF to counter overshoot as the driver reverses direction or comes to a halt.
Using two or more carefully positioned and phased subwoofers can further reduce distortion, minimize response variation due to room modes and enhance transient response.
Xtreme XD is currently available in the Black Pearl finish.
The Legacy Xtreme is lightning quick, easy to integrate, incredibly flexible, and WOW this thing is beautiful." - Gary Lea, Positive Feedback
-
Fine Tuning
On the front panel of the Xtreme XD you'll notice four controls: Level, Freq., Blend and Phase. These allow an extraordinary amount of control over your subwoofer.
These controls allow you to tailor the sound of the sub to your room and integrate with your main speakers.
-
-
- Product Manual Download Manual
- Application: Articulate sub with heavy impact and deep bass extension
- System Type: Subwoofer mass loaded, pneumatically coupled
- Subwoofer: 15" spun aluminum spun core 560 oz motor structure, dynamic braking
- Radiator: 15" mass loaded downfiring
- Low Frequency Alignment: 6th Order/Back EMF canceling circuit
- Inputs: LFE, L/R RCA, balanced XLR
- Internal Amplificiation: 1000 Watts Ultra efficient ICEpower®
- Frequency Response (Hz, +/- 2dB): 16-100
- Impedance: 10K Ohm Amp Input
- Phase Adjustment: Continuous +/-180
- Blend EQ: +/- 12 dB @45Hz
- Max. SPL: 123 dB @1m
- Low Pass Filter Slope: 18 dB per octave
- Crossover (Hz): 40-100
- Dimensions HxWxD (Inches): 27.375 x 18.25 x 18.25
- Weight: 120 lbs
-
- Article: Best Sound, Home Theater Award at What HiFi India 2020
- Article: Daniel Shores: 2020 GRAMMY Award Nominee & Legacy User
- Article: Sono Luminus
- Article: 20 Great Deep Bass Tracks
- Review: “…a highly resolving, high power subwoofer..." Xtreme XD Subwoofer Review
- Review: "Legacy Xtreme is Easily The Best Subwoofer..."
