Introducing i·V7 - the Flagship Home Theater Amplifier from Legacy Audio
Posted September 2019
Removing dynamic limitations while preserving detail is paramount to the listening experience.

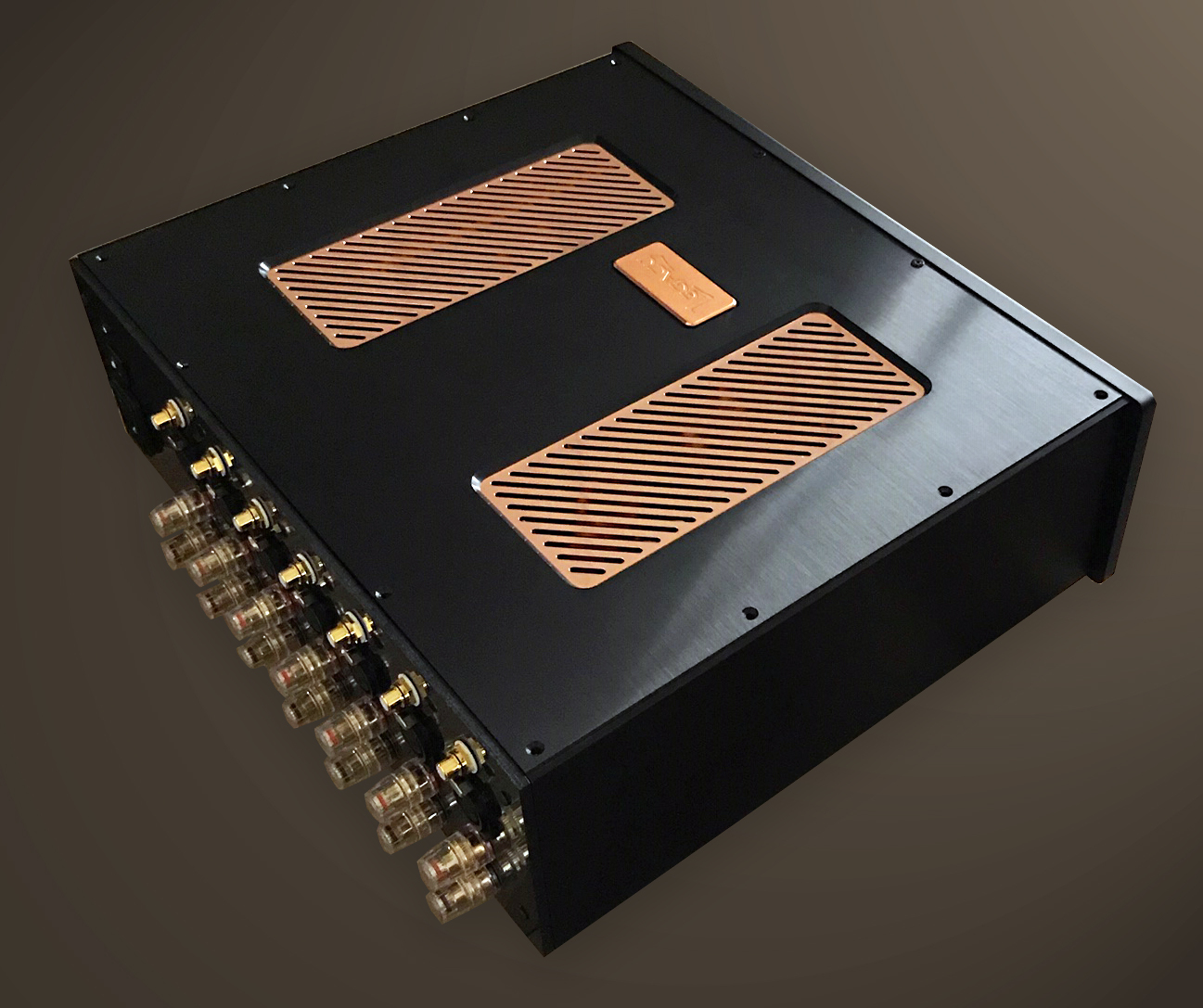

Legacy Audio’s new i·V 7 is the most powerful home theater amplifier to date.
Featuring state of the art ICEedge® technology, the elegant seven channel amplifier approaches 80% efficiency while delivering 600 watts per channel into 8 ohms all seven channels driven. Such exceptional power is the product of very high current (i) and voltage (V) output capabilities providing stability into low impedances with a peak output current capability of 38A. The amplifier supports 12VDC triggered on/off and will also be available in a rack mount 8 channel version for Atmos® installations.
Home theater demands both high current (i) and high voltage (V) output. Say goodbye to heat build-up and transformer hum.
The crystal-clear sound is virtually noise-free and reliability is assured- after all, it’s a Legacy.
660 watts per channel x 7 @ 4 ohms, all channels driven
610 watts per channel x 7 @ 8 ohms, all channels driven
Each channel meets the following specifications:
1.2kW peak power @ 4 Ohm/1kHz with less than 1% distortion
127 dB, A-weighted
7 x Fully balanced XLR, 7 x single-end RCA
5.0 Vp @ 1200W/4 Ohm
38 kOhm for both pin 2+ and pin3-
98 Vp/ 38Ap
750 average, 20Hz to 1kHz
120 dB at 1kHz
17.5" W x 15.6" D x 5.8" H
Maximum recommended power consumption:
2400 Watts @ 120VAC into 20 amp circuit
1800 Watts @ 120VAC into 15 amp circuit
The i·V 7 will begin shipping late Fall, 2019.
