Giant Screen 3D Theater - Peoria Riverfront Museum
Posted October 2012
Legacy Audio Advances Theater Sound At Ultra-High-Definition Giant Screen 3D Digital Theater
In 2012, Legacy Audio introduced the new doubleHelix audio system for state-of-the-art cinemas and large screen theaters. The system was recently installed at the Peoria Riverfront Museum in Peoria, Illinois. Evolving cinema technologies from studios such as Dreamworks® and Pixar® are raising the expectations of theater sound. Reacting to this challenge, Legacy Audio developed a state of the art system with more channels of playback to deliver a more convincing and immersive experience. “The theater represents a unique opportunity to pull out all the stops in the audio and video presentation,” says Aaron McArdle, CEO of ZDI, Inc®, system design integrator for the museum.
The Peoria Riverfront Museum’s two-hundred seat Giant Screen Digital Theater boasts a 70 x 52 ft screen. According to Global Immersion, the UK designer and integrator of the Giant Screen theater’s projection and media server/management system, “The GSX™ Giant Screen Cinema solution is an integrated system featuring two 4K digital cinema projectors. The system is capable of playing DCI (2K: 2048x1080 and 4K: 4096x2160 letterbox/1.85:1 aspect ratio) and Giant Screen (4096 x 3072 resolution/4:3 aspect ratio). The system is also 3D-capable. It is the world’s highest brightness 3D digital cinema system, and the world’s highest resolution digital cinema system.”
The Audio Technology
The audio system reaches beyond conventional theaters, and is designed by Legacy Audio President and Chief Designer, Bill Dudleston. It provides up to 20 steerable sound locations powered by 42 channels of amplification delivering 14,000 watts. The system utilizes Dirac room compensation software hosted by the Datasat AP20 digital processor, which compensates for room reflections and provides system crossover and equalization.
The doubleHelix technology was first utilized in a custom system built for legendary record producer L.A. Reid of Epic Records, X-Factor, Arista, UMG fame. The loudspeaker system features five 3 x 5 x 1.5 ft Legacy doubleHelix speakers splayed along the seventy foot long platform, located some 30 feet above the floor.

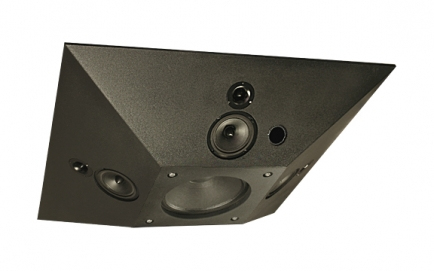

The Giant Screen Digital Theater also exploits 14 surround loudspeakers and an overhead loudspeaker in the shape of an inverted, truncated pyramid that projects sound to all viewers. This overhead speaker provides continuity in ambience and adds drama to flyover effects.
Bill Dudleston expounds- “The doubleHelix is unique in that it offers wideband directivity control. The large cabinets are dipolar in nature (open to the sides) which helps to focus the lower midrange and upper bass range, and provide a longer acoustic throw. This improves intelligibility and allows the off-center seated listener to hear the more distant channels adequately. The special driver array also reduces undesirable bass droning and overhang.”
Each of the five doubleHelix in the front of the theater employs four internal 500 watt ICEpower® amplifiers to drive the digitally steered channels. Included in the system are fourteen identical side and rear channel Deco Pro speakers and an exclusive centrally located overhead channel. The overhead speaker is in the shape of a truncated inverted pyramid with separate speaker components on each of the facets. Total system power in the Peoria Riverfront Museum exceeds 14 kilowatts and meets stringent efficiency requirements.
About the Peoria Riverfront Museum
You’ll find the industrious city of Peoria amidst the prairies of central Illinois – about 150 miles north of where the majestic Illinois and Missouri rivers converge on the great Mississippi. The riverfront city is the international home of Caterpillar Inc., a significant contributor to the P.R.M. project, which broke ground in September of 2010.
The double Helix is capable of high SPL audio of the highest quality while maintaining a controlled radiation pattern via DSP. This super speaker system was originally designed for L.A. Reid and Universal Music Group and is employed in the Michael Jackson Conference Center at SONY/Epic Studios in Manhattan.View Details
The doubleHelix Subwoofer provides extreme low end extension for this high performance system. The subwoofer cells are modular and can be stacked beneath the doubleHelix mains.View Details
