Audio/Home Theater Slant 7
The Slant 7 is ideal for theater and PA systems where high quality sound is a necessity. It can be mounted on the wall or ceiling and provides great dynamics and resolution, while maintaining an “out of the way” foot print.
The Slant 7 is ideal for theater and PA systems where high quality sound is a necessity. It can be mounted on the wall or ceiling and provides great dynamics and resolution, while maintaining an “out of the way” foot print.
Dual 7” silver/graphite midrange drivers are paired with a 4" AMT folded ribbon- perfect for music and speech duties where clarity is a must. The Slant 7 can be mounted on the wall via a french cleat mounting bracket or ceiling.
| Application: | On Wall or ceiling speakers for theater or PA |
|---|---|
| Mounting: | Wall mount with bracket or Ceiling Mount |
| System Directivity: | 45 degrees horizontally, 45 degrees vertically |
| Projection Distance: | 4 to 30 feet |
| Tweeter: | 4" AMT folded ribbon |
| Midwoofer: | Dual 7" Silver/Graphite |
| Low Frequency Alignment: | 8" Passive Radiator |
| Freq. Response (Hz, +/-3dB): | 59 -20k |
| Sensitivity (Room, dB@ 2.83V): | 93 |
| Crossover Freq. (Hz): | 3k |
| Inputs: | 1 pair binding post, recessed cup |
| Dimensions (inches) HxWxD : | 21.85 x 15.98 x 5.91 |
| Weight: | 27 lbs each |
| Internal Amplification: | Optional |
Legacy Pro Slant 7 in Custom Walnut finish

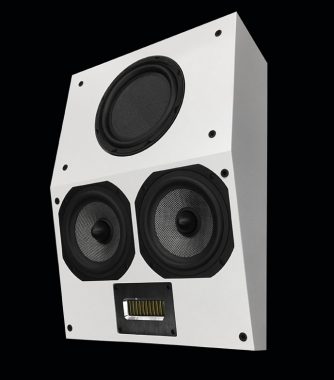

Legacy Pro Slant 7 in White Satin finish
Legacy Pro Slant 7 in White Satin finish
Legacy Pro Slant 7 in custom Walnut finish
Slant 7 Rear View with Recessed Cup in White Satin finish
