Audio/Home Theater Skyline 7

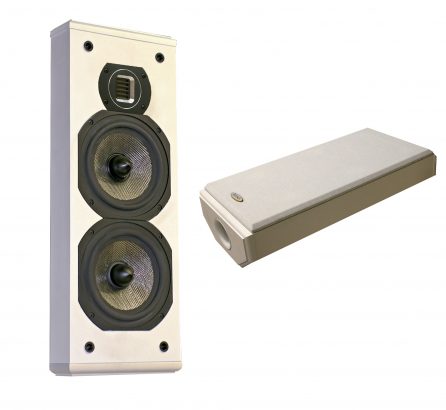

The smallest of the Skyline series- the Skyline 7 features two 7" drivers and a spiral ribbon tweeter in a sleek design that is sure to blend in and compliment its surroundings. The Skyline 7 provides clarity and performance in a package that can be either corner or flat mounted.
The smallest of the Skyline series- the Skyline 7 features two 7" drivers and a spiral ribbon tweeter in a sleek design that is sure to blend in and compliment its surroundings. The Skyline 7 provides clarity and performance in a package that can be either corner or flat mounted.
| System Overview: | Overview PDF |
|---|---|
| Application: | Broad range corner or wall mount monitor for smaller rooms |
| System Type: | 3 driver, 2 way |
| Mounting: | Corner or wall mount bracket provided |
| System Directivity: | 60 degrees horizontally, 50 degrees vertically |
| Projection Distance: | 6-25 feet |
| Tweeter: | 1" spiral ribbon, titanium diaphragm with Neo motor |
| Midrange: | 7" Silver/Graphite woven diaphragm, cast basket, phase compensation plug |
| Midwoofer: | 7" Silver/Graphite woven diaphragm, cast basket, phase compensation plug |
| Low Frequency Alignment: | Ported |
| Inputs: | 1 pair binding post, recessed cup |
| Recommended Amplification: | 25 - 200 Watts |
| Frequency Response (Hz, +/-3dB): | 59-25k |
| Impedance: | 4 Ohm |
| Sensitivity: | 90.5 (2.83 Volts@1m) |
| Crossover Frequency (Hz): | 3k |
| Dimensions HxWxD (Inches): | 23.25 x 8.64 x 5.31 |
| Weight (each): | 22 lbs |
