Audio/Home Theater Silhouette Center Pro
The Silhouette Center PRO, provides no compromise performance in a simple 4.5" deep on wall/ in wall design. The robust driver complement and special electrical network yield the optimum response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.
The Silhouette Center PRO, provides no compromise performance in a simple 4.5" deep on wall/ in wall design. The robust driver complement and special electrical network yield the optimum response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.
On-wall speakers are often dynamically challenged, especially in the lower octaves. This isn't the case with the Legacy Silhouette Center PRO. It provides top-to-bottom performance with plenty of slam. The three-way design features two 8" mass loaded radiators to lay the foundation supporting two high acceleration 7" silver/graphite midrange drivers. Treble remains clear and airy from the 4" Legacy AMT ribbon, boasting a high-temperature pleated Kapton diaphragm and neodymium motor.
The internal crossover divides the spectrum precisely where the wall boundary creates a strong dip in the response of conventional speakers. This compensation in the electrical network allows for the appropriate response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.
The Silhouette Center PRO can be ordered in an on-wall version with installed french cleat mounting brackets or with an oversized outer baffle to allow for in-wall installation. Please consult the manual for dimensions, and specify mounting type upon order placement.
| Product Manual | Download (5 MB) |
|---|---|
| Application: | Low-profile wide range on-wall center |
| System Type: | 3 driver, 2 way |
| Tweeter: | 4" AMT folded ribbon |
| Midwoofer: | Dual 7" Silver/Graphite, cast frame |
| Passive Radiator: | Dual 8" mass loaded radiators |
| Low Freq. Alignment: | B6 Assisted |
| Inputs: | 1 Pair Binding post, recessed cup |
| Recommended Amplification: | 15-250 Watts |
| Freq. Response (Hz): | 55-28k |
| Impedance: | 4 Ohm |
| Sensitivity: | 92 dB (2.83Volts @ 1m) |
| Crossover: | 2.5k |
| Dimensions (inches) HxWxD: | 9.33 x 39.66 x 4.5 |
| Weight (each): | 52 lbs |
| In Wall Dimensions (inches) HxWxD: | Cabinet body: 9.33 x 39.66 x 4.5 Outer baffle: 12.33 x 42.66 x 4.5 |
| In Wall Weight (each): | 57 lbs |

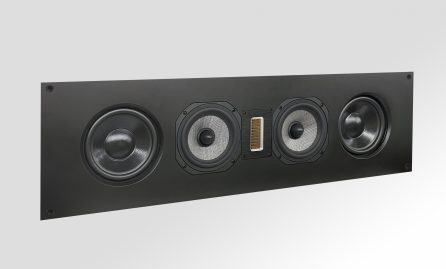

Legacy Silhouette Center PRO in Black Satin finish
Legacy's Silhouette Center PRO featuring french cleat mounting brackets for on-wall applications

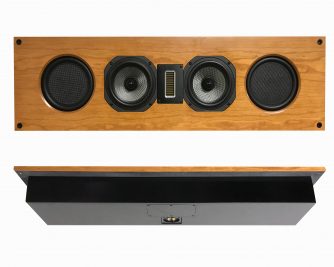

Legacy's Silhouette Center Pro Option with Outer Baffle for In-Wall Mounting
