PRICE:
Price range: $3,500.00 through $4,500.00

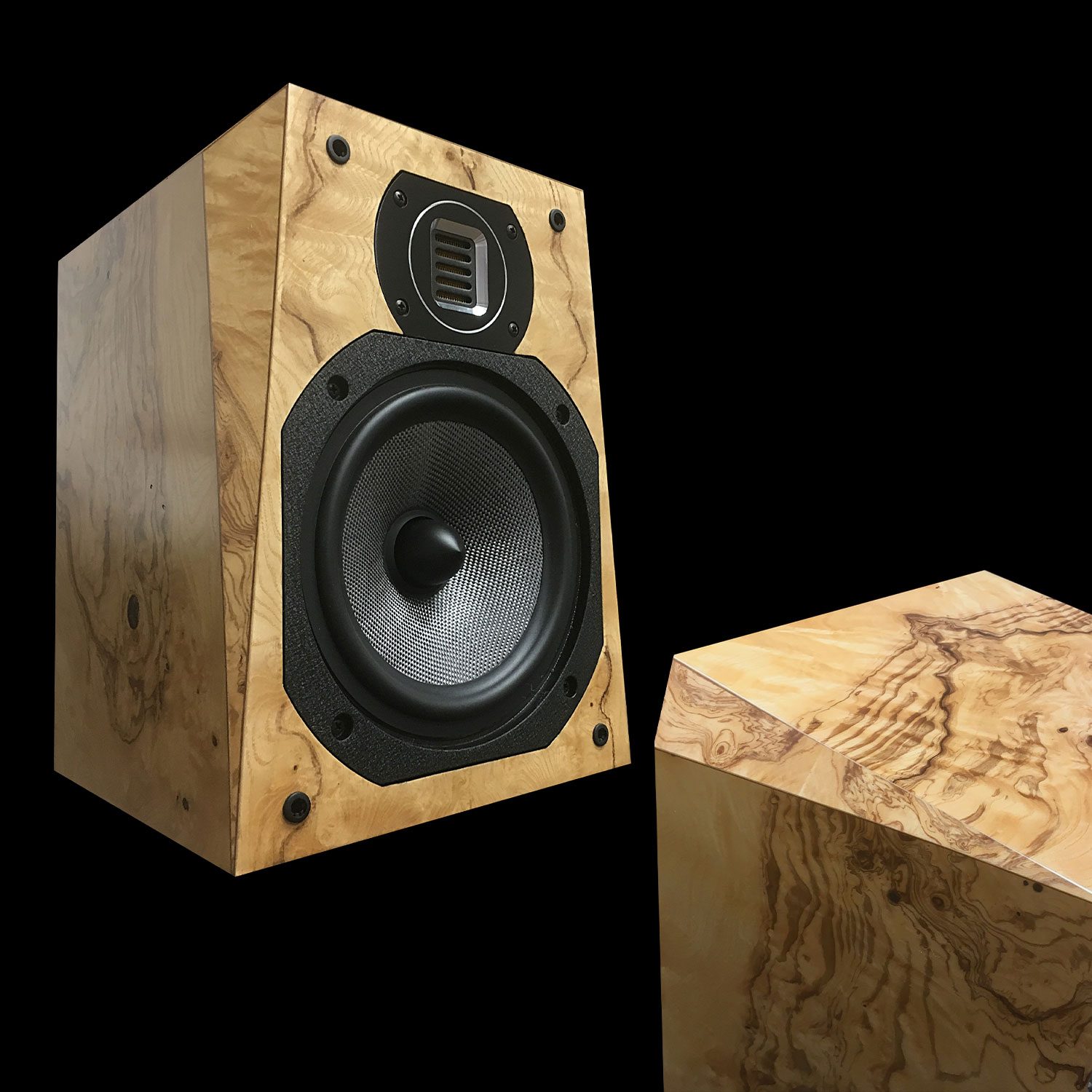

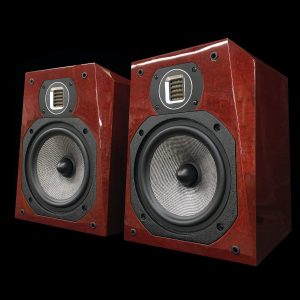

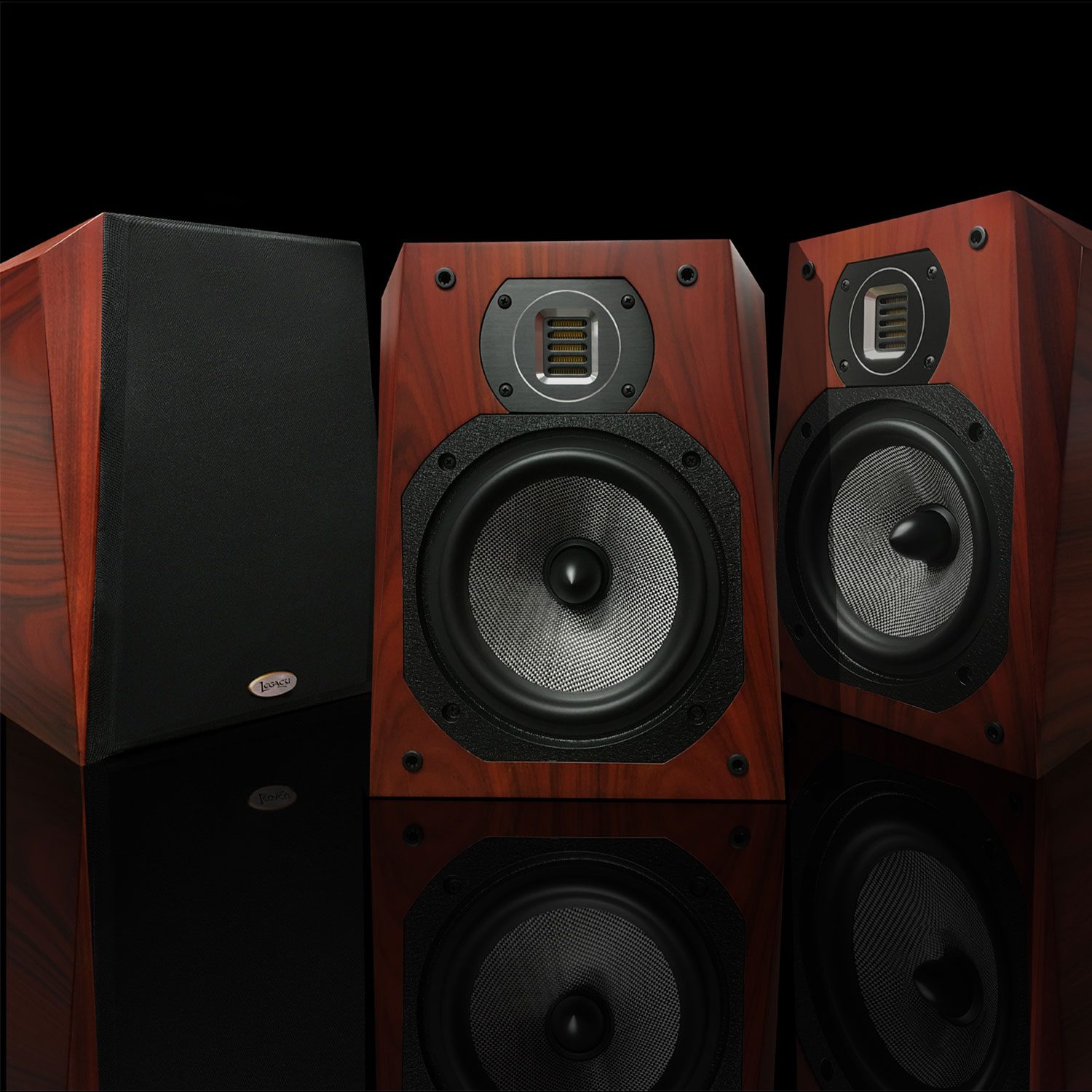

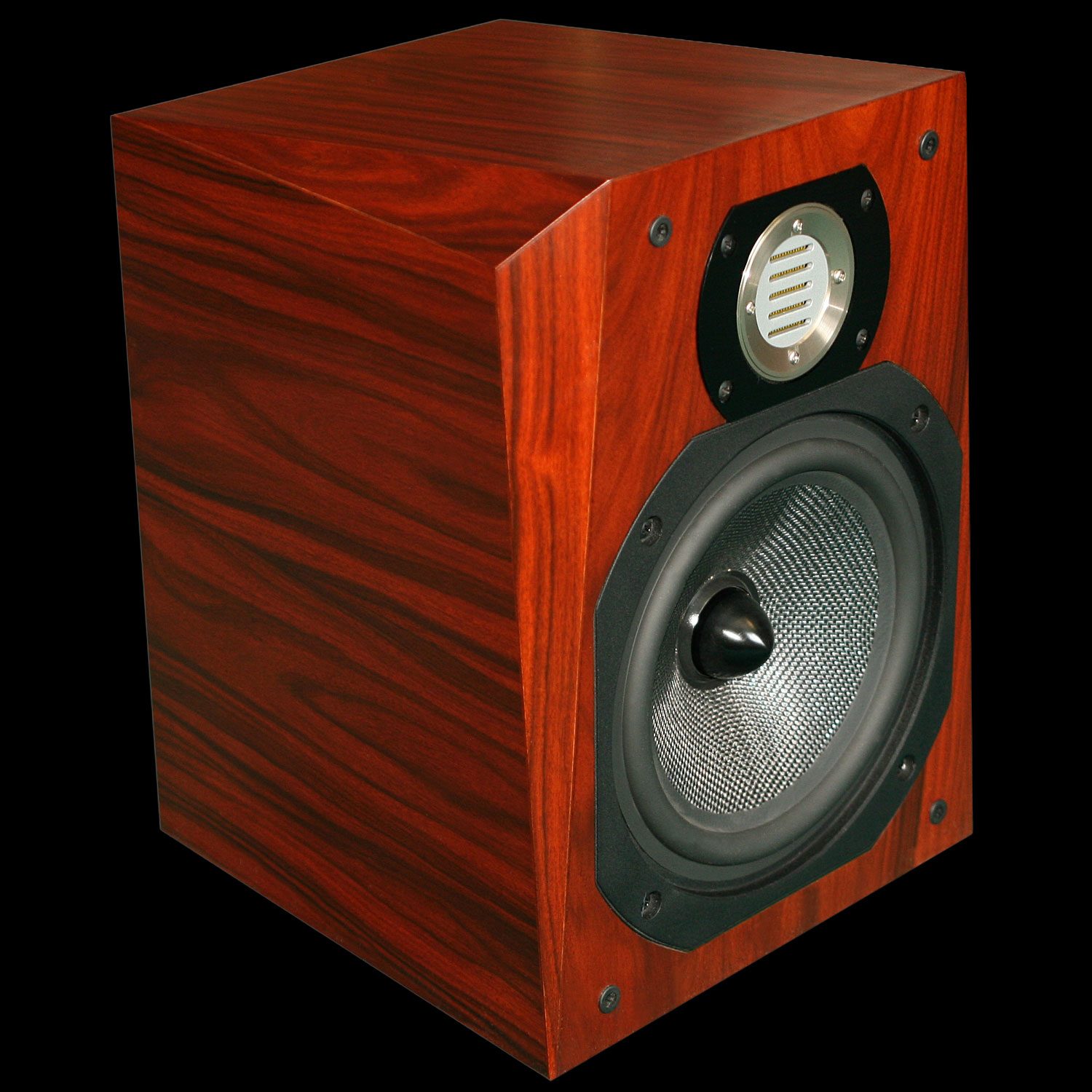

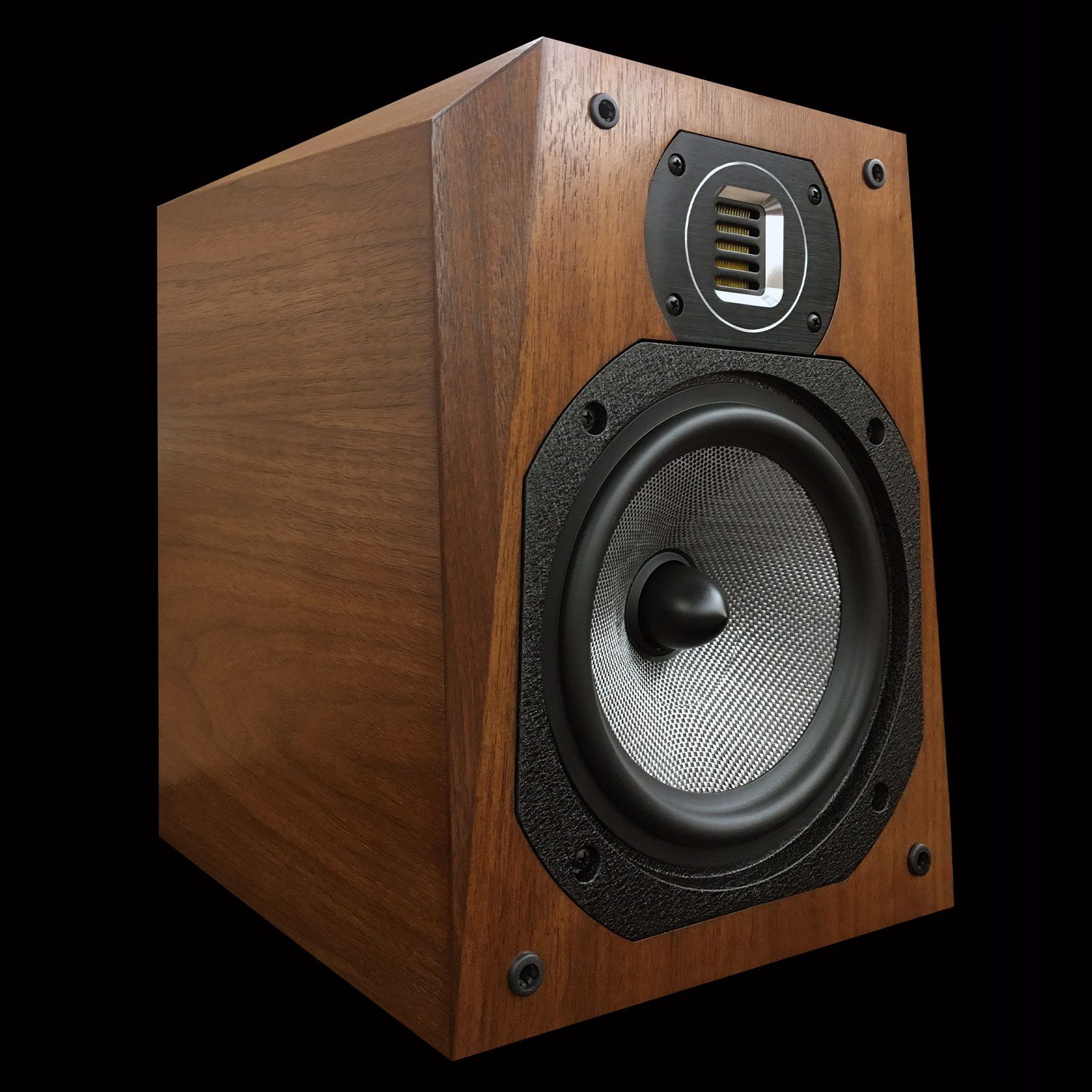

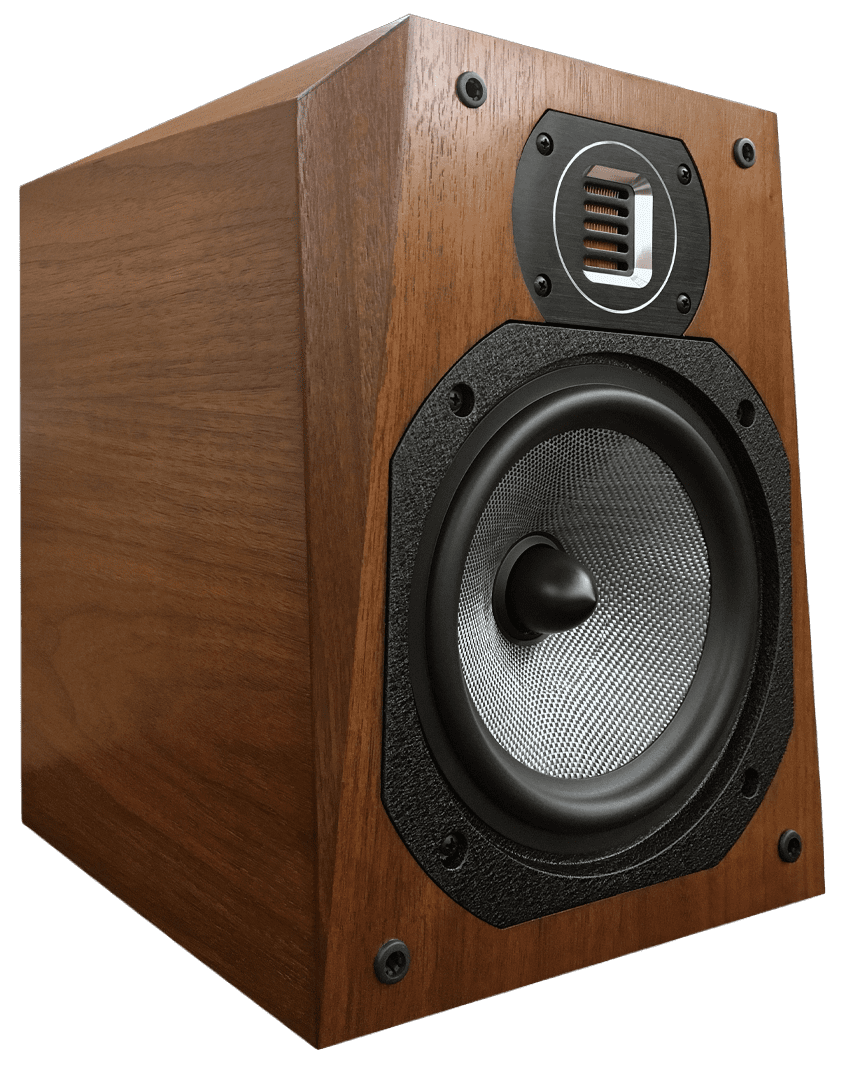

Originally designed as a monitor for a top recording studio, the Legacy Studio HD offers unmatched clarity and dynamics in a compact enclosure. Don’t let its size fool you. The Studio HD is a robust compact monitor featuring an 8” Silver/Graphite bass/midrange driver and a 1” dual pole AMT folded ribbon for a perfect balance of power and articulation.
A-Stock Model Available!
A-Stock Model Available!The Legacy Studio HD: Professional Reference Monitors for Discerning Ears

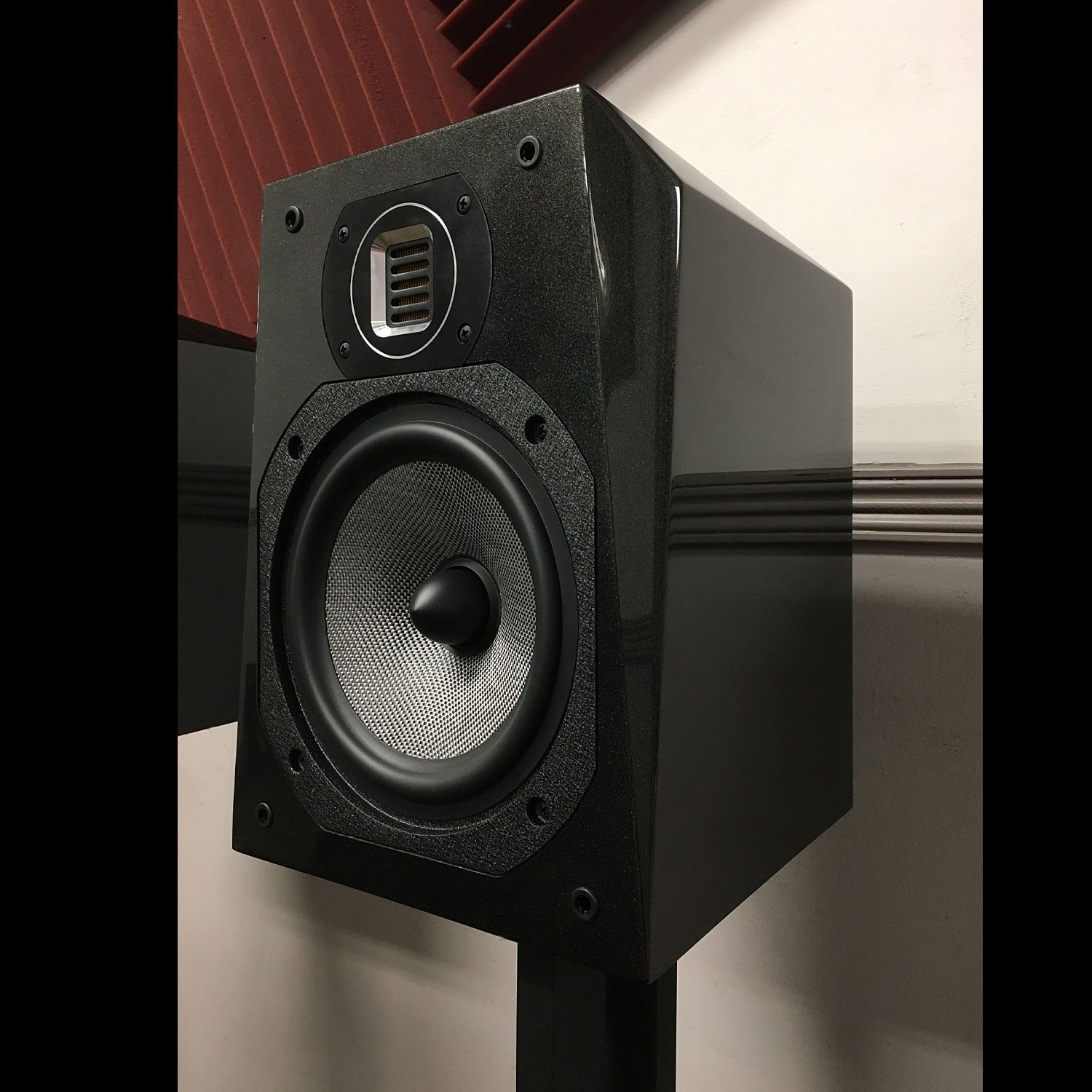

Designed initially for a top recording studio, the Legacy Studio HD is a high-performance monitor that delivers an open, dynamic, and accurate sound. The sound is open and airy, yet a kick drum “feels” like a kick drum. Vocals are robust and effortless. You can hear lungs fill with air before the first note is sung.

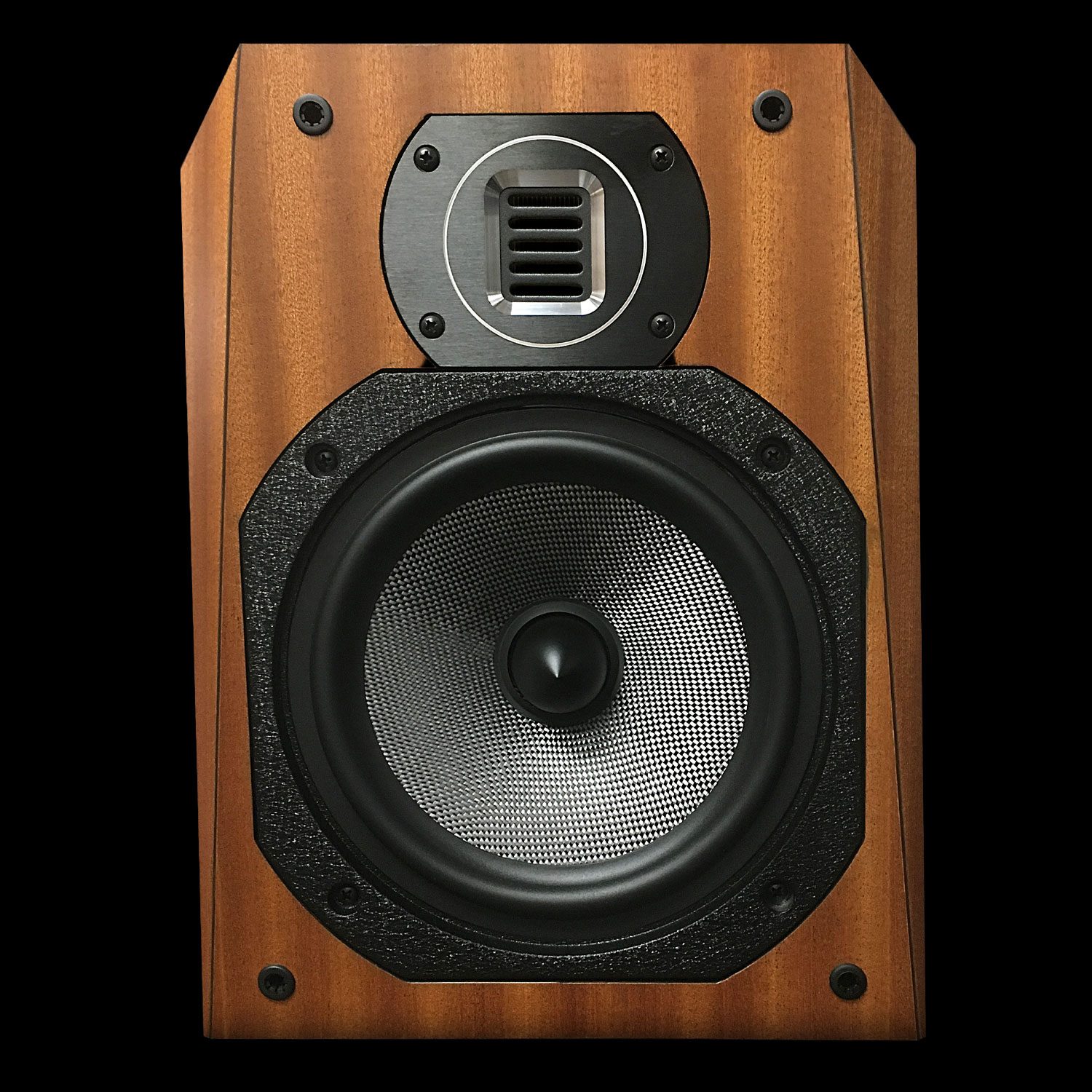

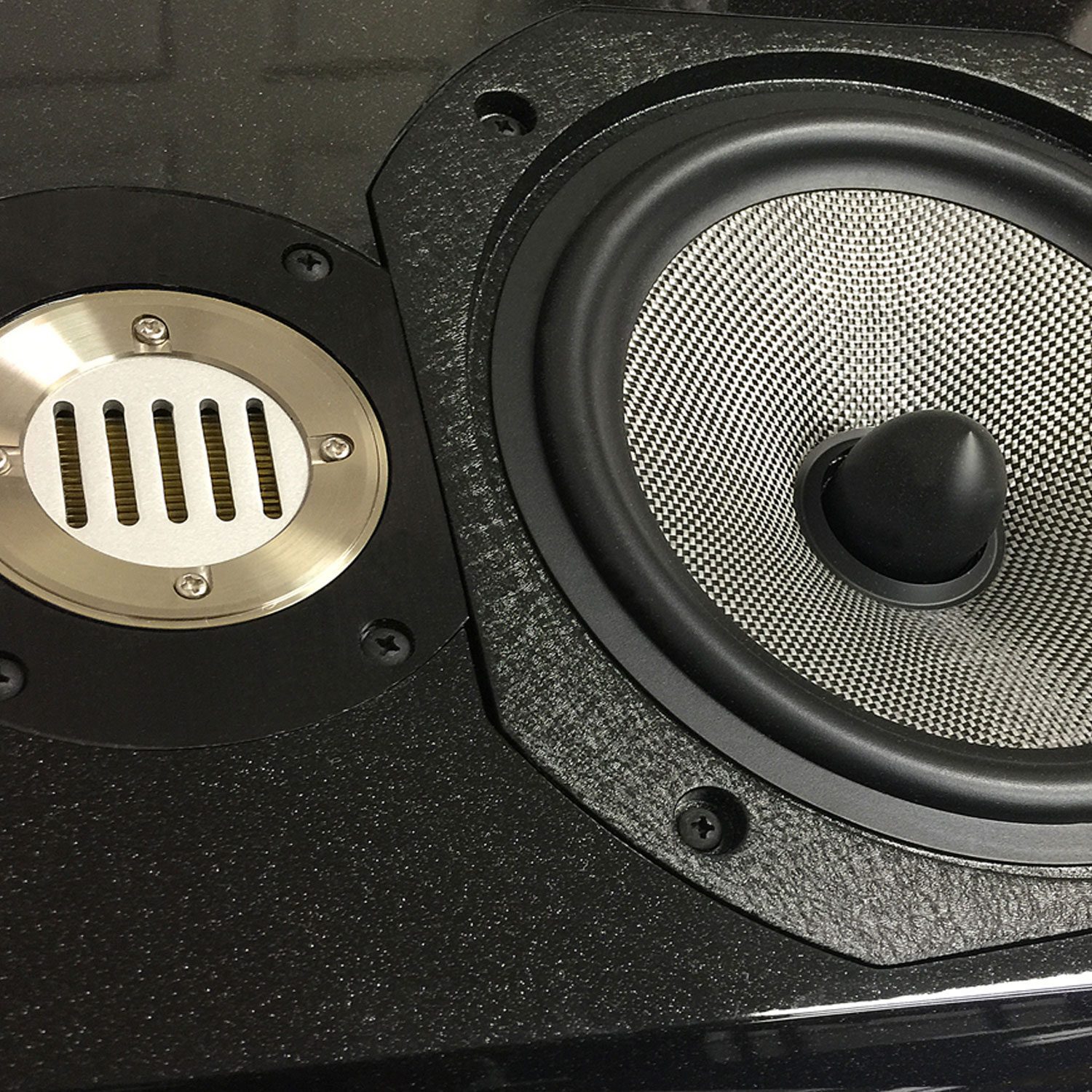

Its compact design belies its robust build and powerful performance. These professional reference monitors feature an 8-inch Silver/Graphite woven diaphragm woofer and a 1-inch dual pole AMT folded ribbon tweeter, the same tweeter found in Legacy Audio’s flagship models.

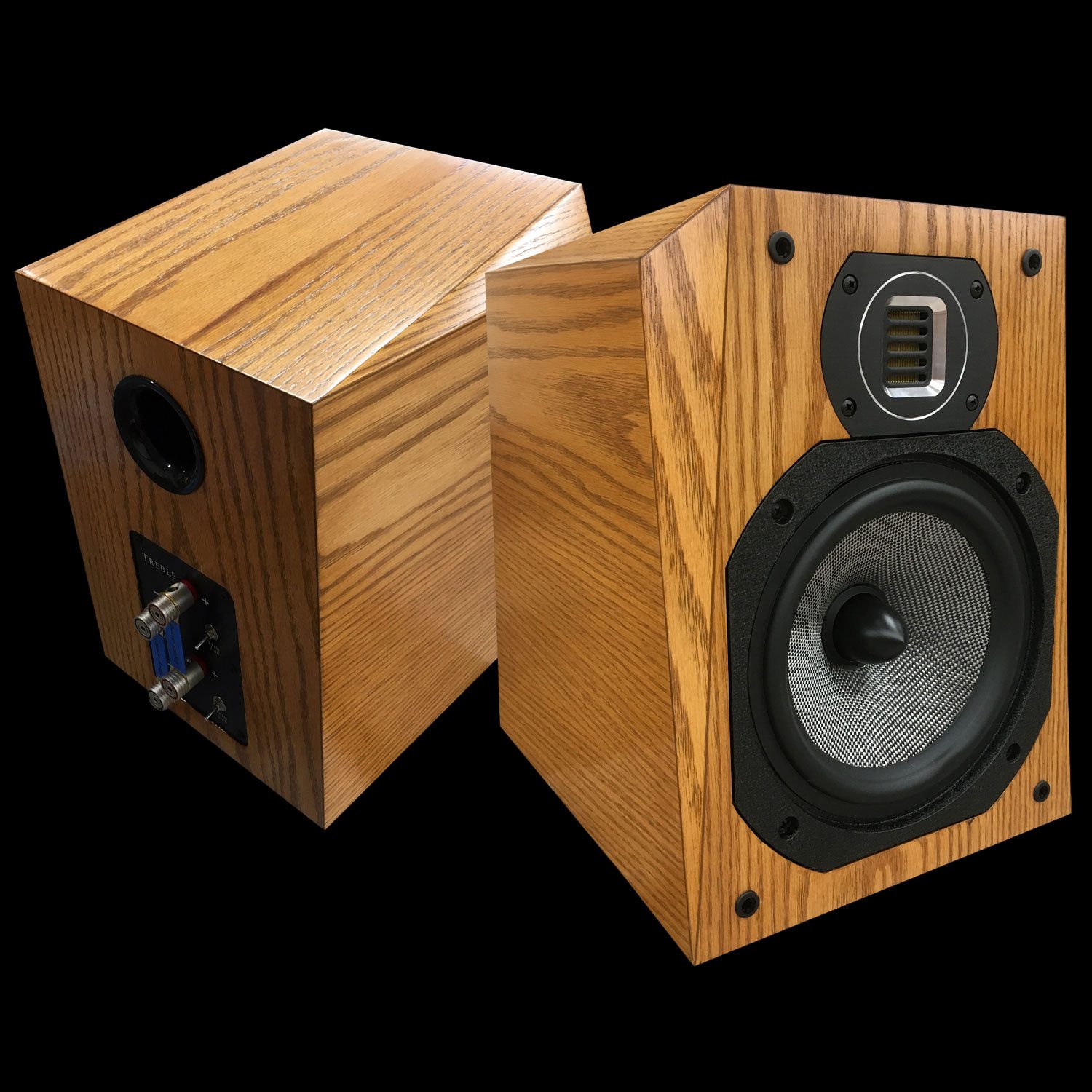

The Studio HD’s meticulous engineering provides a flat frequency response from 41 Hz to 30 kHz, ensuring critical accuracy for mixing and mastering. The rear-ported cabinet, constructed from dense 1.125″ MDF, and independent high- and low-frequency contour switches allow for precise room adjustments, making them a versatile tool for any studio or home environment.
Studio HD excels as both a left and right main speaker, as well as a surround speaker for Atmos® systems. Coupled with the Metro XD subwoofer, Studio HD offers a building block approach to true high-end audio.
| Specification | Detail |
|---|---|
| Product Manual | Download Manual |
| Application | Studio grade reference monitor |
| System Type | 2 Driver, 2 Way |
| Tweeter | 1″ dual pole AMT folded ribbon |
| Midwoofer | 8″ Silver/Graphite woven diaphragm, cast basket, phase compensation plug |
| Frequency Alignment | B4 Reflex, rear ported |

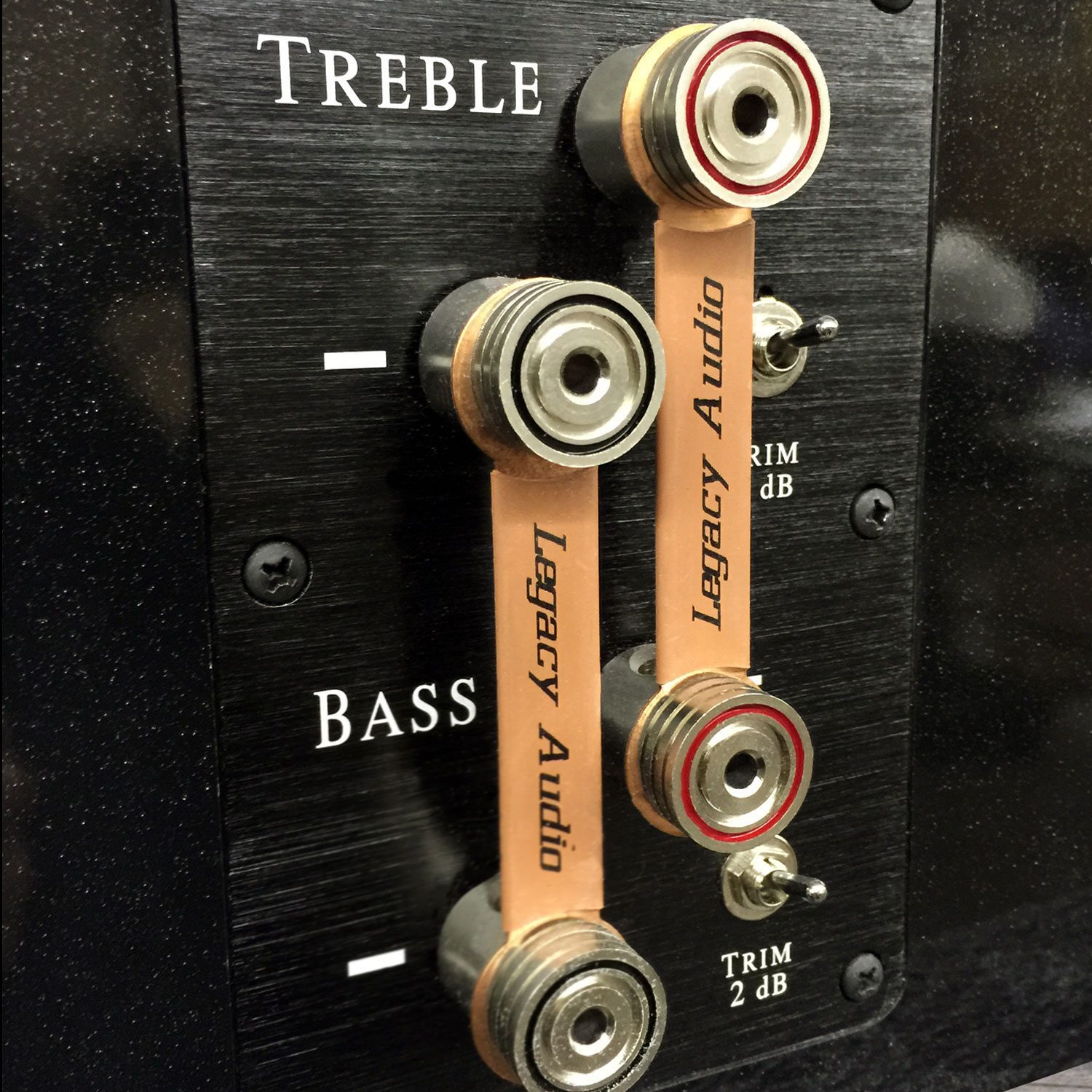

| Inputs | 2 pair binding posts for Treble and Bass |
| Recommended Amplification | 15 watts or above |
| Frequency Response (Hz +/- 2dB) | 41-30k |
| Impedance | 4 Ohm |
| Sensitivity | 91 dB (2.83V @ 1m) |
| Crossover | 2.8k |
| Dimensions (HxWxD, inches) | 13 x 10.8 x 10.8 |
| Weight | 30 lbs each |
| Shipping Weight | 74 lbs per pair |

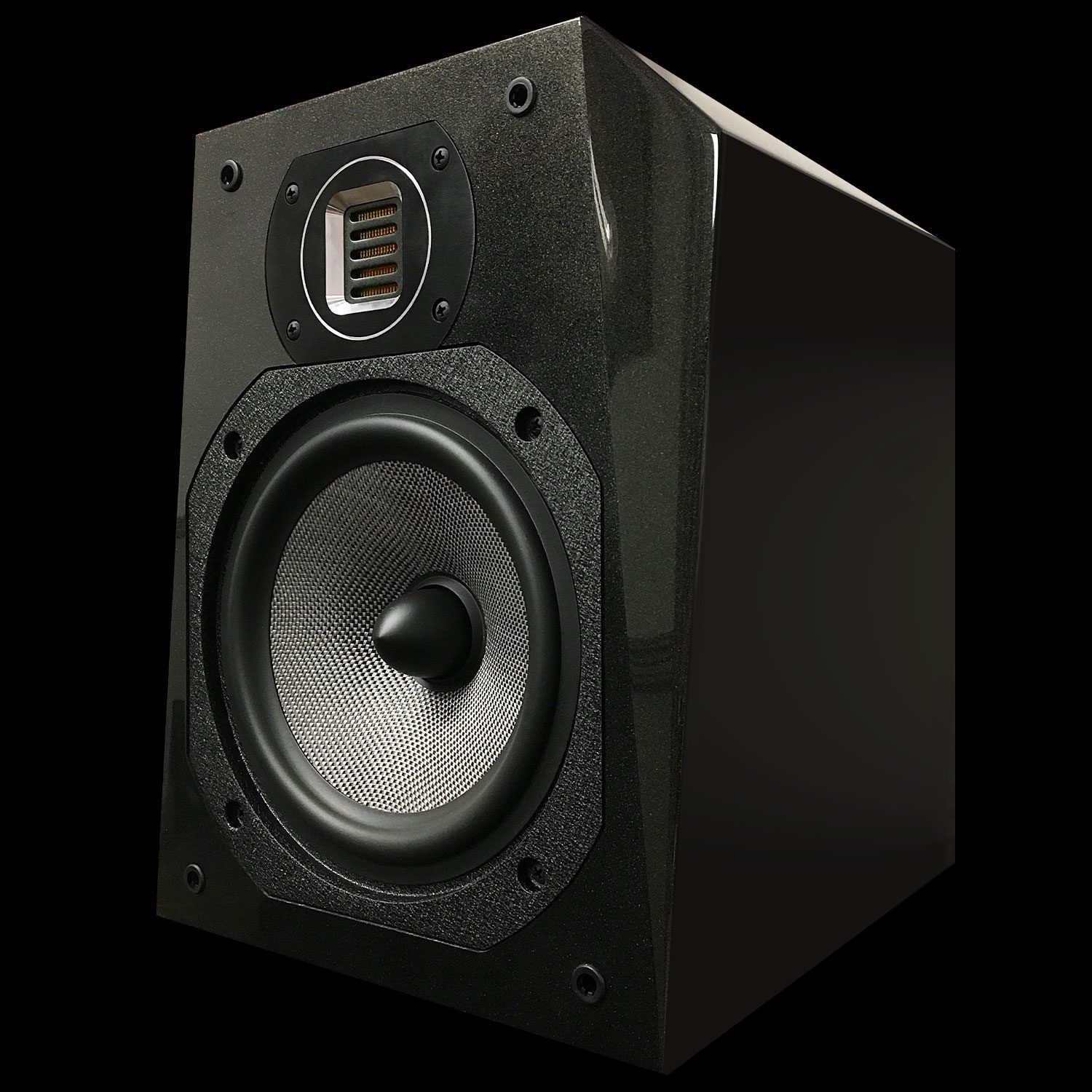

PEARL
PEARL

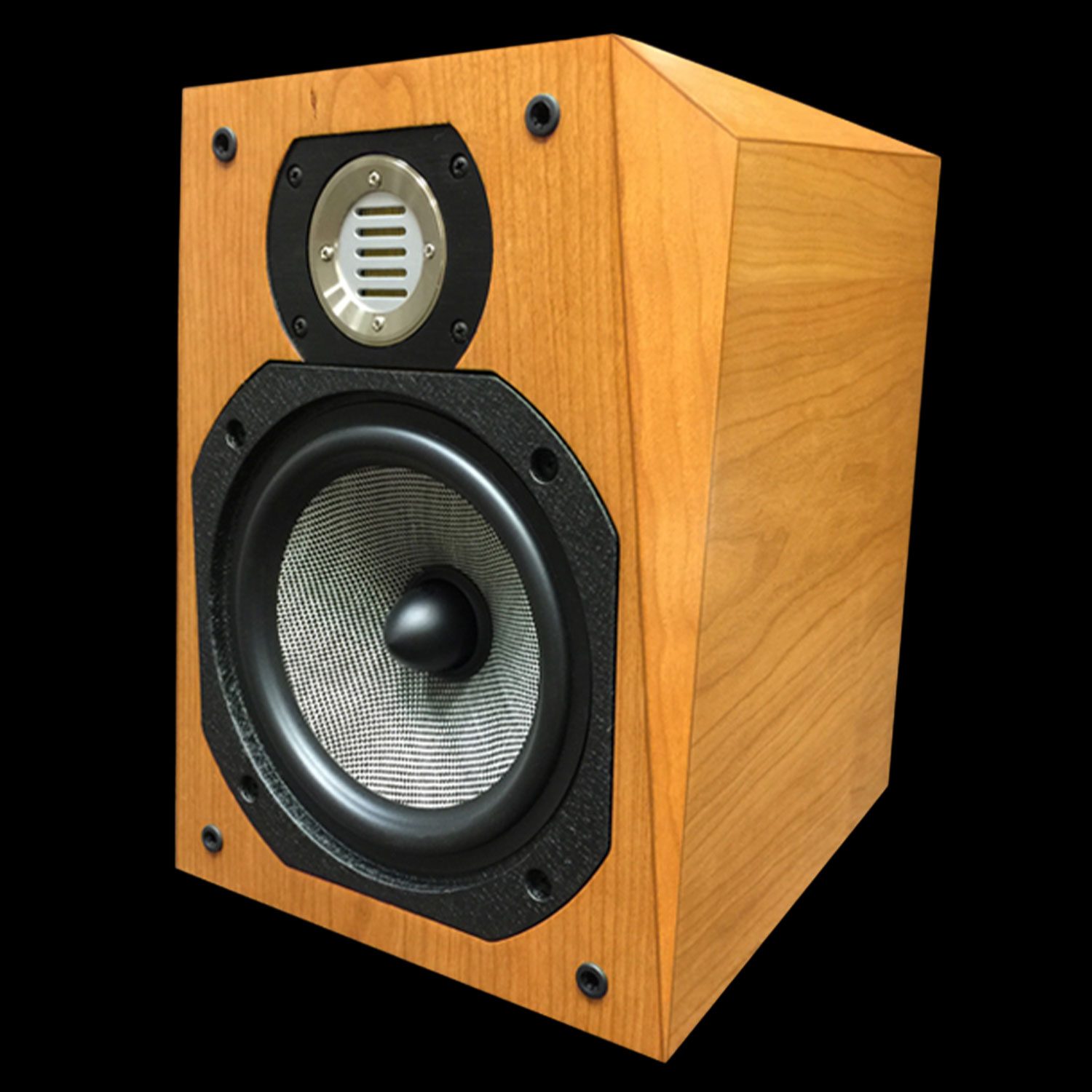

NATURAL SATIN
GLOSS CABERNET
ASH BURL

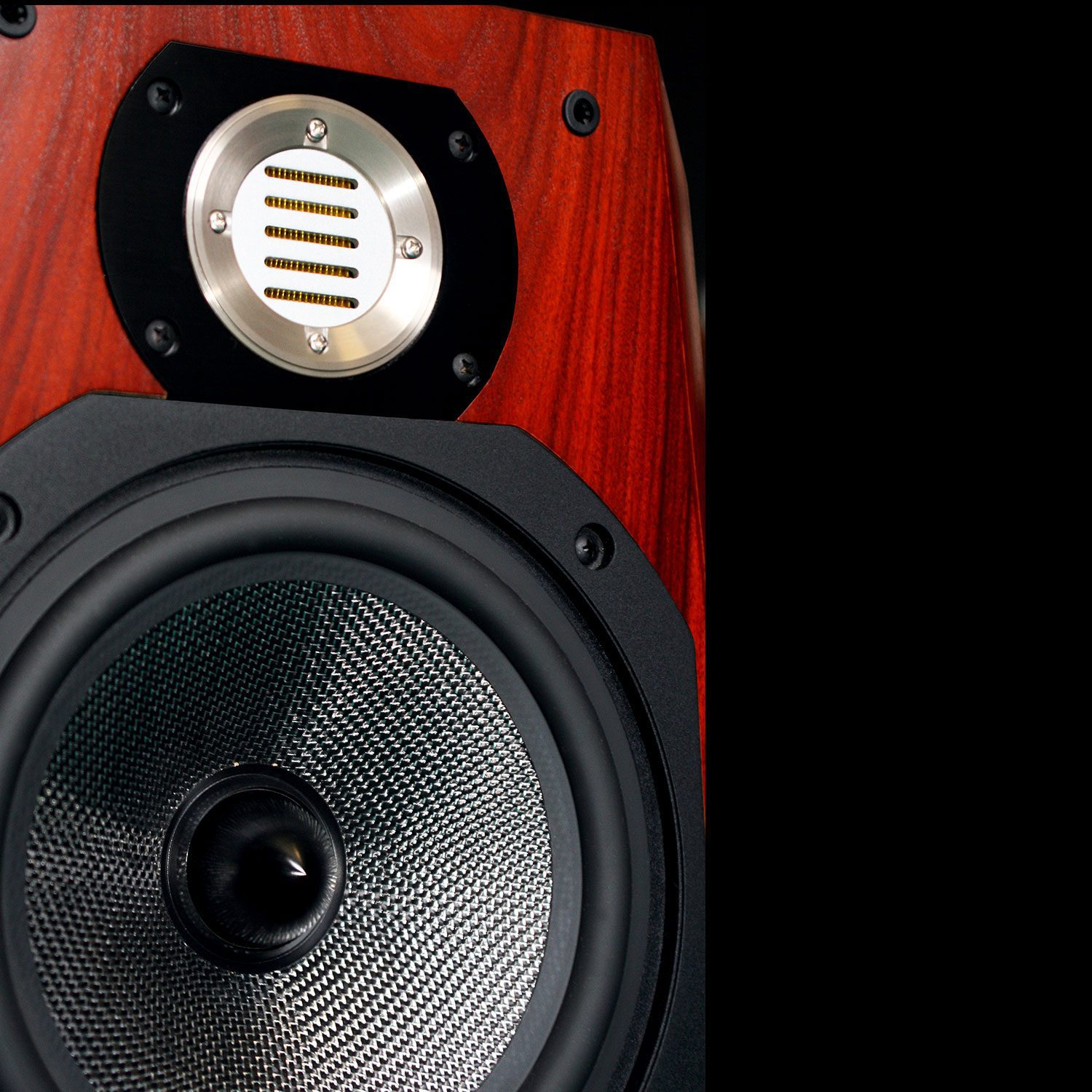

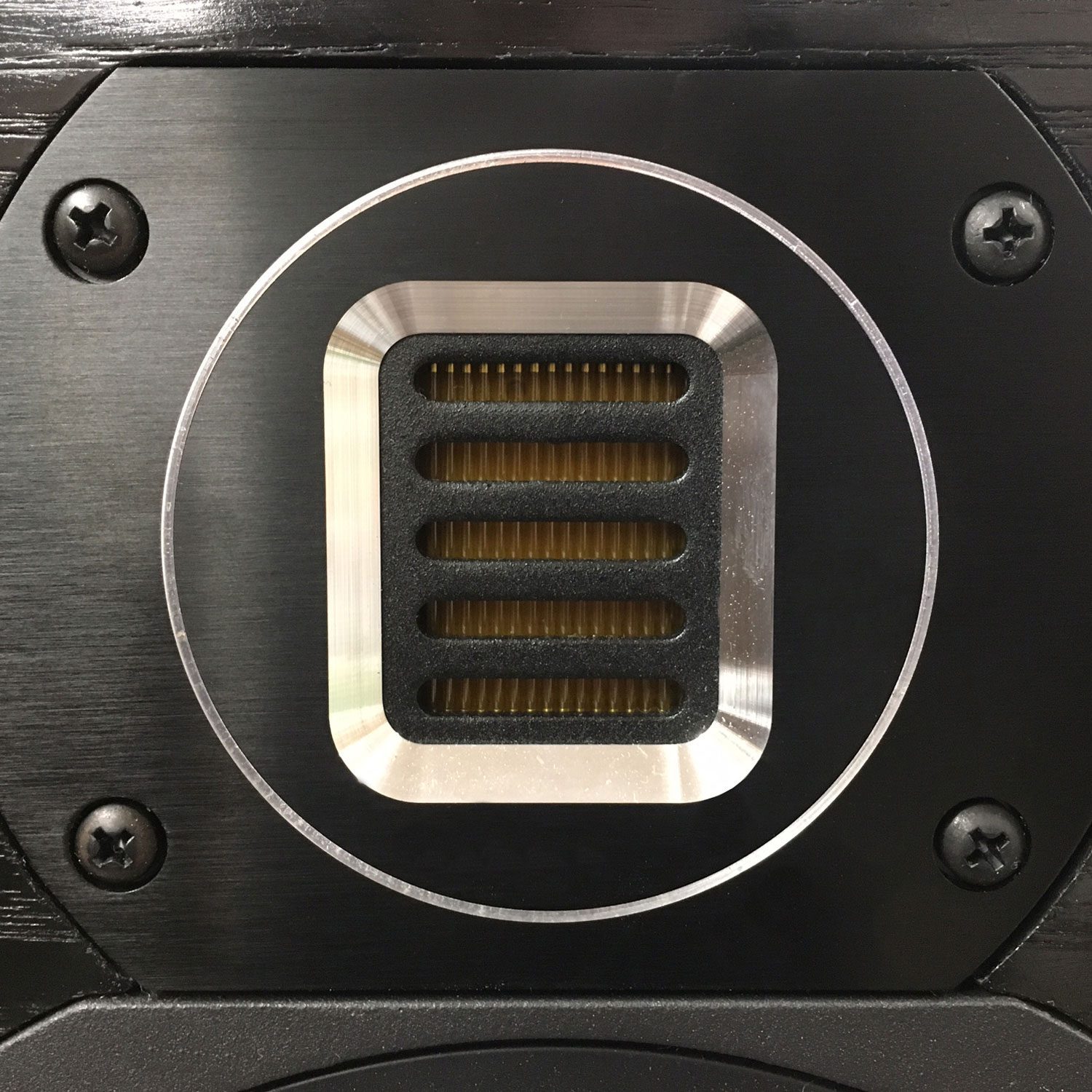

The Legacy 1” dual pole AMT folded ribbon delivers airy and clear highs up to 30 kHz and is the same award-winning Legacy AMT found in the larger Focus SE & Aeris floor-standing speakers.

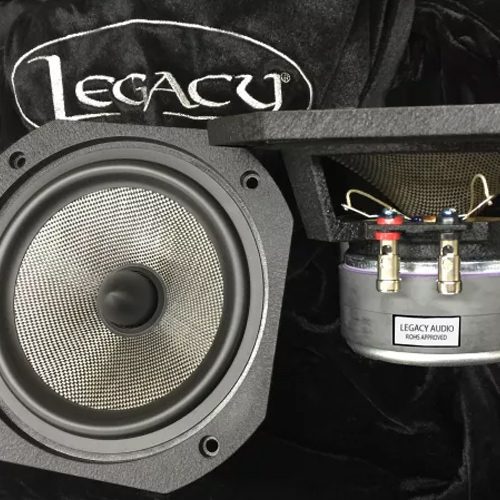

Studio HD features a proprietary 8” woven Silver/Graphite bass/midrange driver with a cast basket. The woofer is designed to prevent acoustic interference across the larger surface area of the driver. Thanks to the deep tuning of this ultra-efficient driver, the range of the Studio HD is impressively large.
