PRICE:
Price range: $14,500.00 through $17,000.00

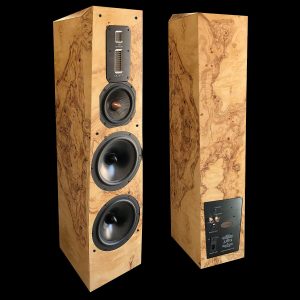

The Legacy Audio Signature XD floor standing loudspeaker brings the highest level of performance to an elegant and slim five-driver tower speaker with a four-way configuration. Though occupying little more than one square foot of floor space, the internally powered 48″ Legacy Signature XD delivers tremendous clarity and impact with 650 watts of internal amplification.
A-Stock Model Available!
A-Stock Model Available!Introducing the Legacy Signature XD: A New Standard in High-Fidelity Audio
The Legacy Signature XD stands as a testament to uncompromising audio engineering, delivering a peerless listening experience for the most discerning audiophiles and hi-fi enthusists. These Legacy Audio tower speakers are a meticulously crafted, self-powered speaker system designed to reveal the full depth and detail of your music.
Precision-Engineered 5-Driver System
At the core of the Signature XD’s sonic excellence is a sophisticated 5-driver speaker system. The upper register is articulated with extraordinary clarity by our proprietary Dual AMT tweeter configuration. A 1-inch and a 4-inch pleated diaphragm provide four times the air displacement and acceleration of conventional tweeters, resulting in unparalleled transient response and tonal purity.
Vocals are rendered with lifelike accuracy by a 7-inch graphene-filled carbon fiber midrange driver. Its robust magnetic structure, copper phase-plug, and shorting ring ensure a transparent and natural presentation of the crucial vocal range. The foundation of the system is a pair of 10-inch woofers featuring rigid aluminum diaphragms, which provide powerful and articulate bass down to the lowest frequencies.
Flexible Amplification and Room Integration

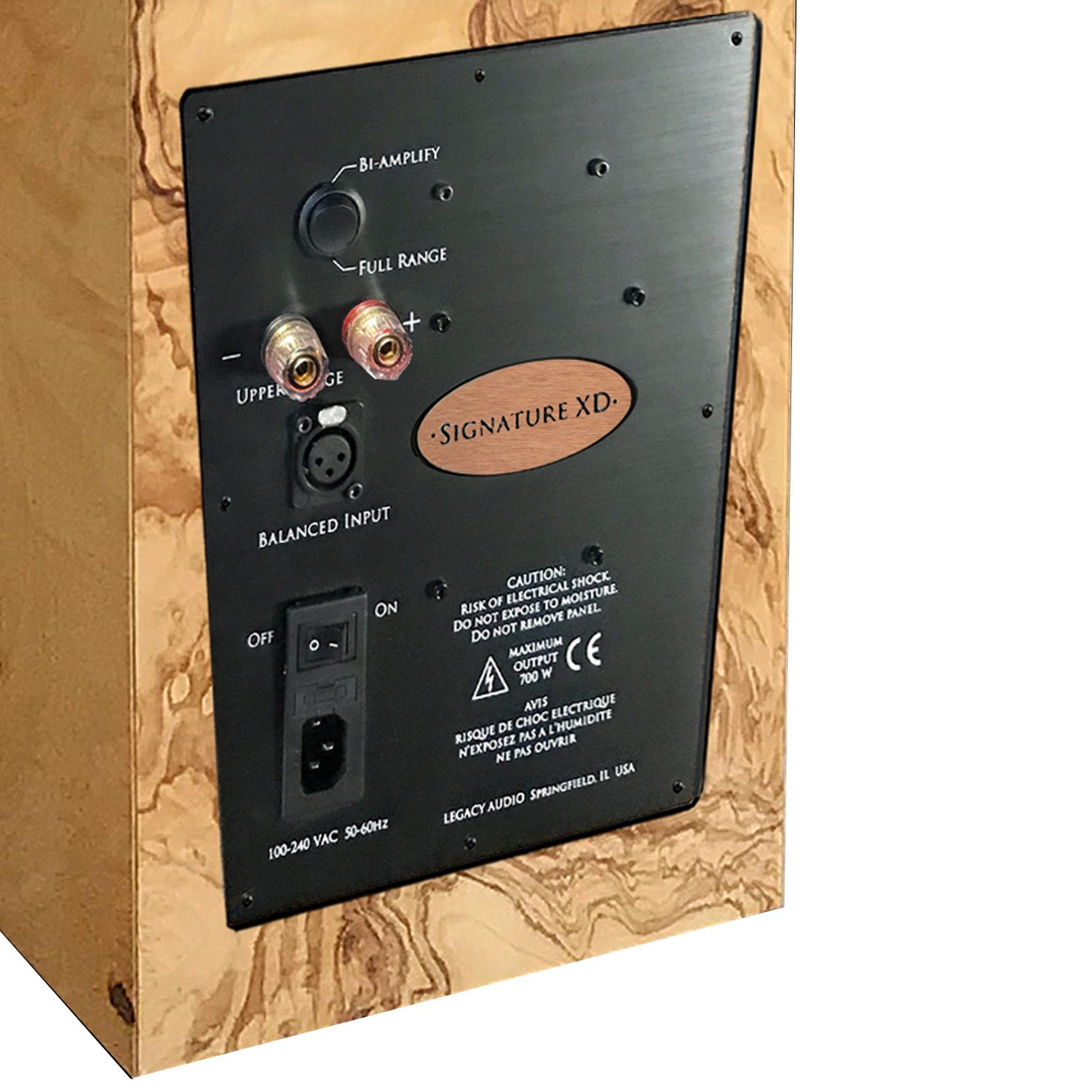

The Signature XD’s internal, pristine amplification ensures optimal performance from every driver. Its unique design also offers unparalleled flexibility. A selectable crossover network allows you to bypass the internal amplification for the upper section, enabling seamless integration with external amplification of your choice—a feature particularly valuable for users of high-end tube or Class A amplifiers.
The sealed enclosure design mitigates room-induced coloration, allowing the speakers to be placed closer to a front wall without compromising sonic integrity. This proprietary design, coupled with carefully implemented crossover points, minimizes early reflections and coloration. For the ultimate in system control and performance, the Legacy Wavelet processor can be utilized to unlock bi-amplification and advanced room correction.
The Legacy Signature XD represents the pinnacle of audio reproduction—a true mastering grade speaker system designed for listeners who demand nothing less than absolute fidelity.
| Product Manual | Download Manual |
| Application | Sealed enclosure, low sensitivity to room placement |
| System Type | 5 driver, 4 way |
| Tweeter | Dual Air Motion Tweeter System – 1” AMT super tweeter, silver HF wire |
| Midrange | Dual Air Motion Tweeter System – 4” AMT tweeter |
| Midrange | 7” Graphene-filled carbon fiber cone with cast frame |
| Subwoofer | Dual 10” spun aluminum diaphragm, rubber surround, long throw suspension with case frame |
| Low Frequency Alignment | Sealed, dynamic damping |
| Inputs | Preamp level: XLR/RCA with adapter |
| High Level | 1pr of 5-way binding posts |
| Internal Amplification | 650 watts clean amplification |
| Recommended Amplification | 10 watts minimum bi-amping upper range |
| Freq. Response (Hz, +/-2dB) | 22-30K |
| Impedance | 4 Ohm |
| Sensitivity | 92 dB (2.83V @ 1m) |
| Crossover (Hz) | 180, 2.8K, 8K |
| Dimensions HxWxD (inches) | 48 x 12 x 13.75 |
| Weight (each) | 110 lbs each |

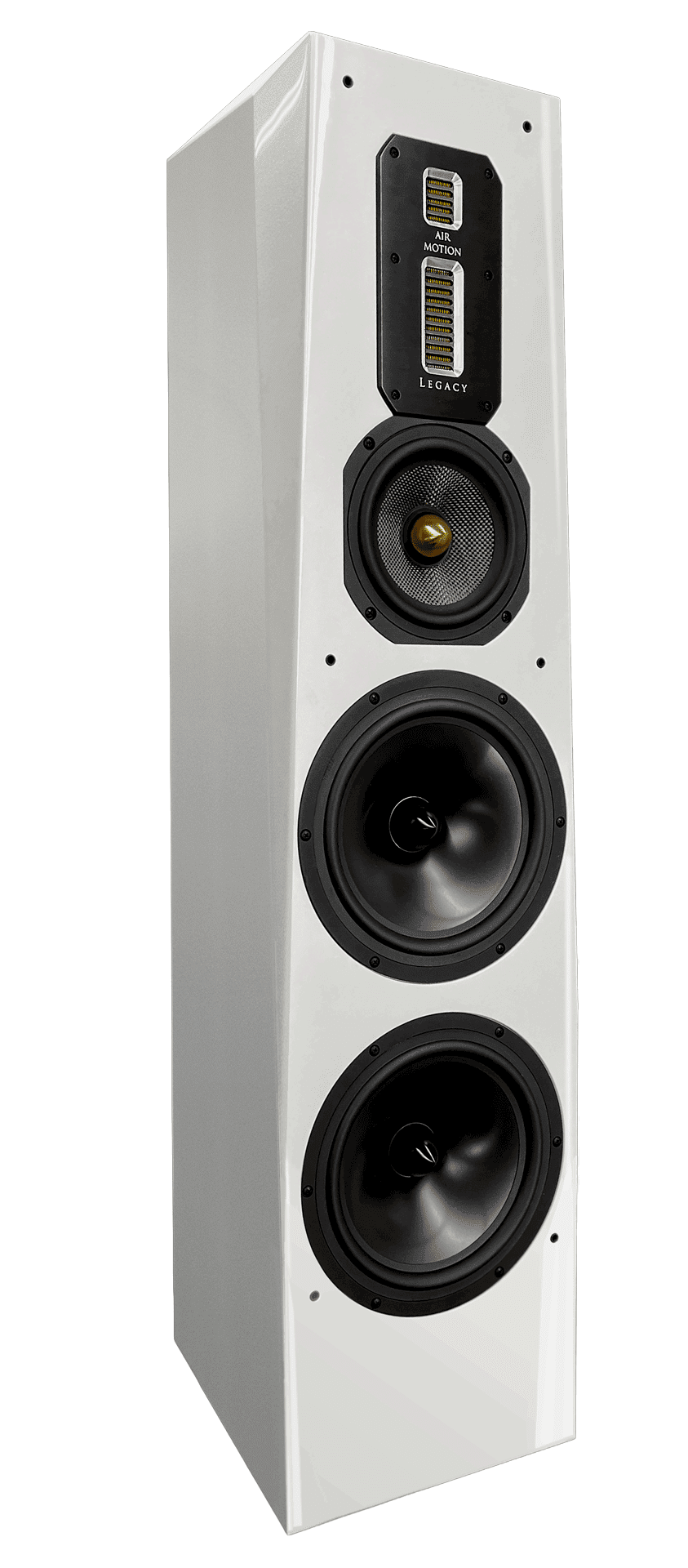

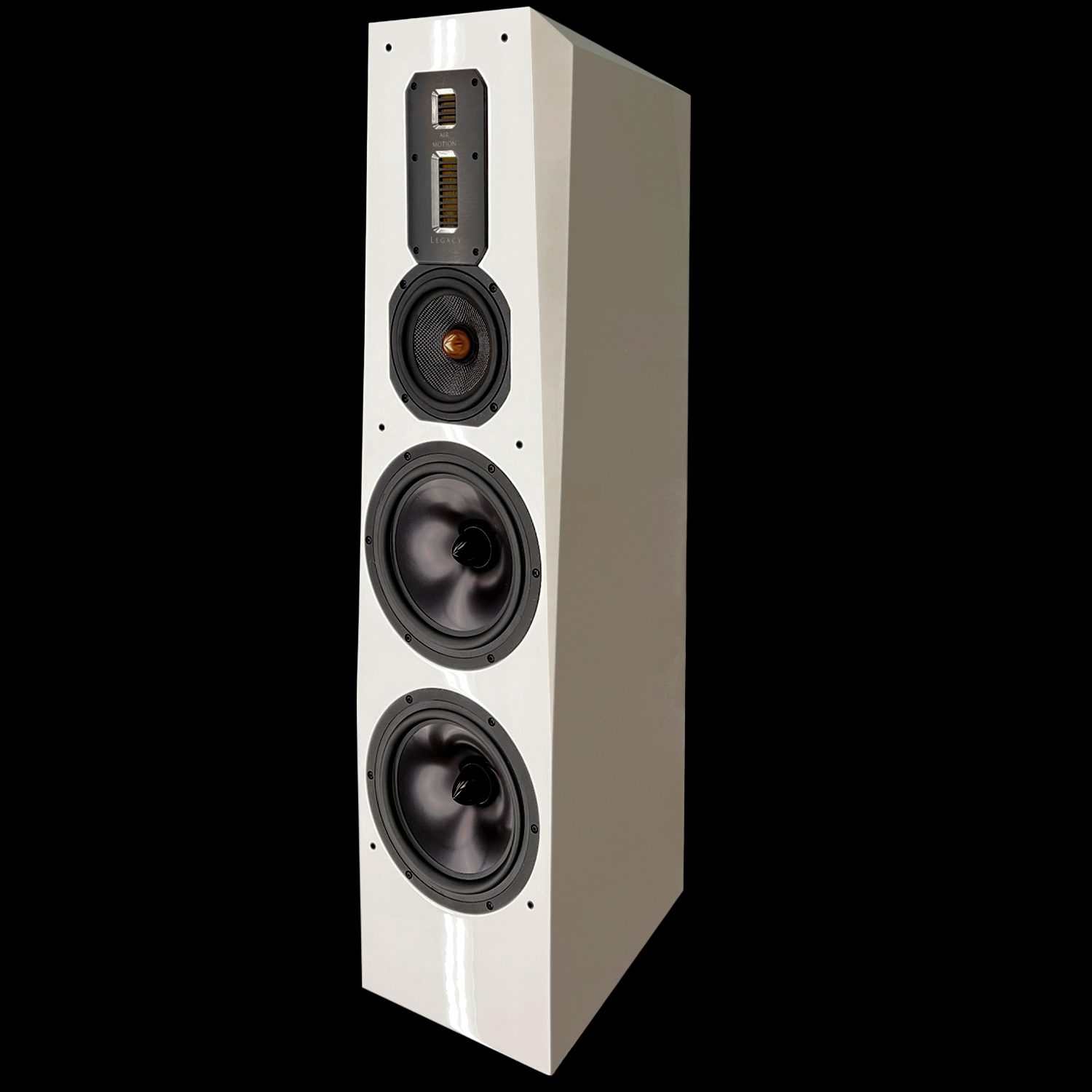

PEARL
PEARL
NATURAL SATIN
GLOSS CABERNET
ASH BURL
Signature XD employs dual 10” woofers, paired to reduce distortion, while the sealed alignment couples to the floor boundary to achieve highly controlled low frequency extension. Due to it’s sealed box alignment, the Signature XD can be placed very close to the back wall. Taut bass lines emerge with solid punch and no over-hang.
The ribbon drivers of the Legacy Dual Air Motion Tweeter system are the very same used in the Legacy Focus series (positioned the same listener height) and employ planar and folded diaphragms suspended in a neodymium magnetic force. A natural fullness in the treble is exhibited that reminds us why we love high-end audio so much.
