PRICE:
Price range: $4,500.00 through $5,500.00

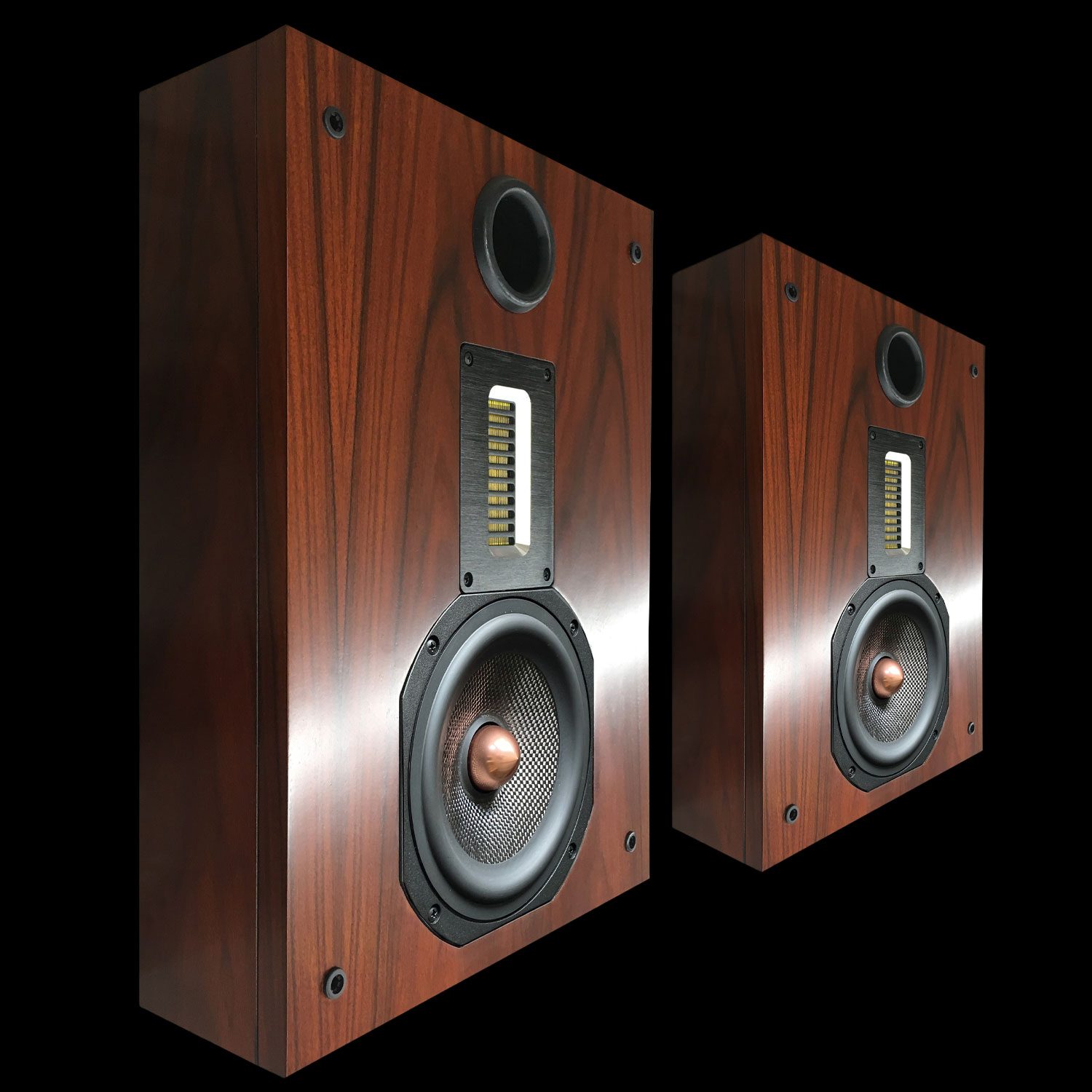

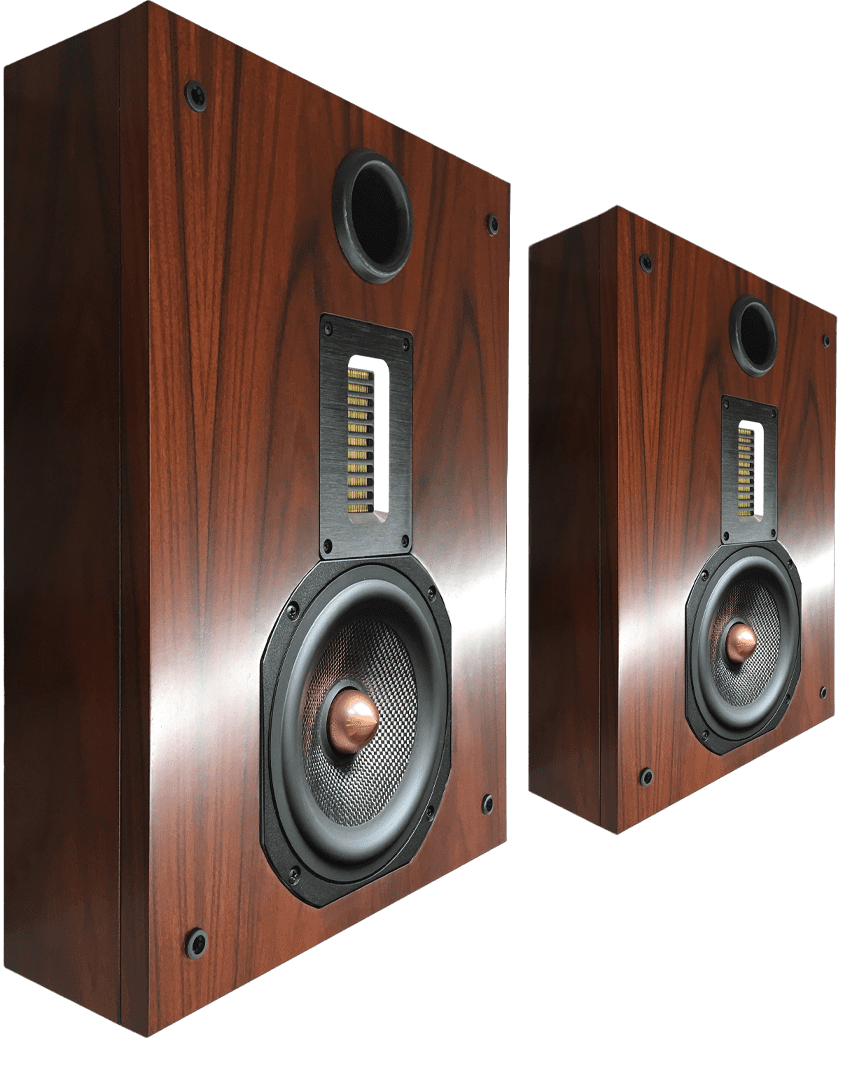

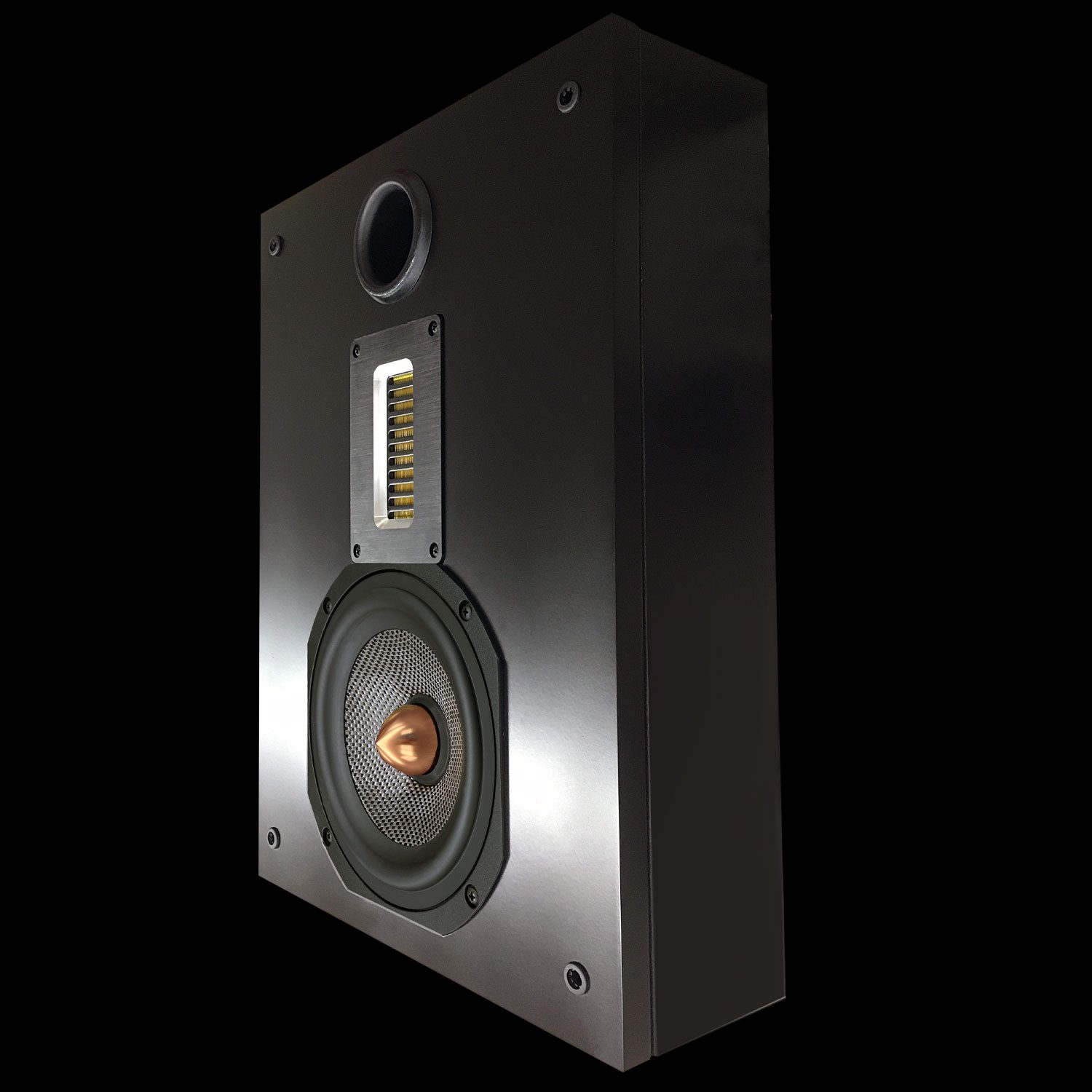

Looking for incredible performance from your two channel or surround system, but short on floor space? The Legacy Pixel On-Wall is the most compact Legacy on wall speaker. It delivers superb frequency response from 60Hz-28kHz making it perfect for surround sound, Dolby Atmos and even left and right channel duties in a two channel system.
Remastered Model Available!
Remastered Model Available!High-Fidelity Audio for Your Walls: The Legacy Pixel On-Wall Speakers

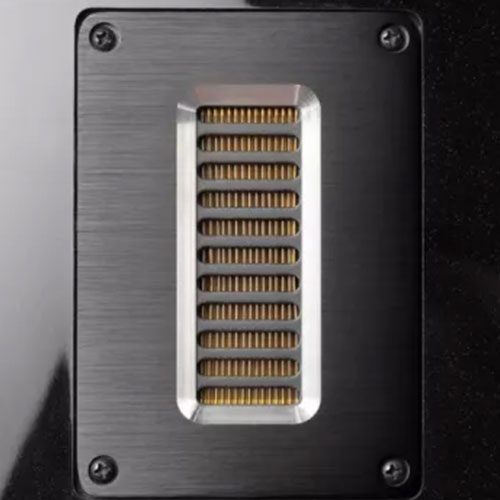

Pixel features the Legacy 4” high velocity AMT- the same driver found in our Dual AMT featured in the flagship Legacy speakers, to deliver a fully extended and airy top end.

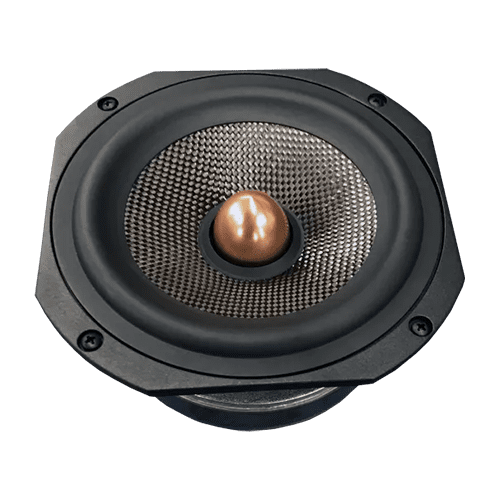

The Pixel’s 7” graphene filled carbon fiber midrange with an acoustically coupled port is the same as our legendary Focus SE speakers, and provides excellent midrange clarity. Hanging Pixel on your wall is as easy as hanging a picture, thanks to the included aluminum bracket concealed by the cabinet body.
Pixel seamlessly matches with other Legacy floor standing speakers in the surround sound system and is an excellent alternative to Studio HD when stands are not an option, but high quality audio for picture and music is a necessity. To complement its performance capabilities, the Pixel’s cabinetry is available in a variety of wood finishes, or simple black or white satin allowing it to discretely fit in with any décor.
The Pixel On-Wall can also be ordered as the Pixel Pro In-Wall with an oversized front baffle, allowing it to be mounted inside the wall. Please consult the manual for the various mounting options available to you.
| Product Manual | Download Manual |
| Application: | Low profile, multipurpose on-wall surround |
| System Type: | 2 driver, 2 way |
| Mounting: | Wall mount with bracket |
| Tweeter: | 4″ AMT folded ribbon |
| Midwoofer: | 7″ graphene filled carbon fiber |
| Low Frequency Alignment: | B4 reflex, ported |
| Inputs: | 1 pair binding posts, recessed cup |
| Recommended Amplification: | 25 watts or above |
| Freq. Response (+/- 2dB): | 60-28k |
| Impedance: | 4 Ohm |
| Sensitivity: | 90 dB (2.83 Volts @1m) |
| Crossover Frequency (Hz): | 2.5k |
| Dimensions (HxWxD, inches) | 17.8″ H x 13.06″ W x 4.41″ D |
| Weight: | 26 lbs each |
| Shipping Weight: | 62 lbs per pair |
PEARL
PEARL
NATURAL SATIN
GLOSS CABERNET
ASH BURL
Pixel features the Legacy 4” high velocity AMT- the same driver found in our Dual AMT featured in the flagship Legacy speakers, to deliver a fully extended and airy top end.
The Pixel’s 7” graphene filled carbon fiber midrange with an acoustically coupled port is the same as our legendary Focus SE speakers, and provides excellent midrange clarity.
