PRICE:
Price range: $3,000.00 through $4,000.00

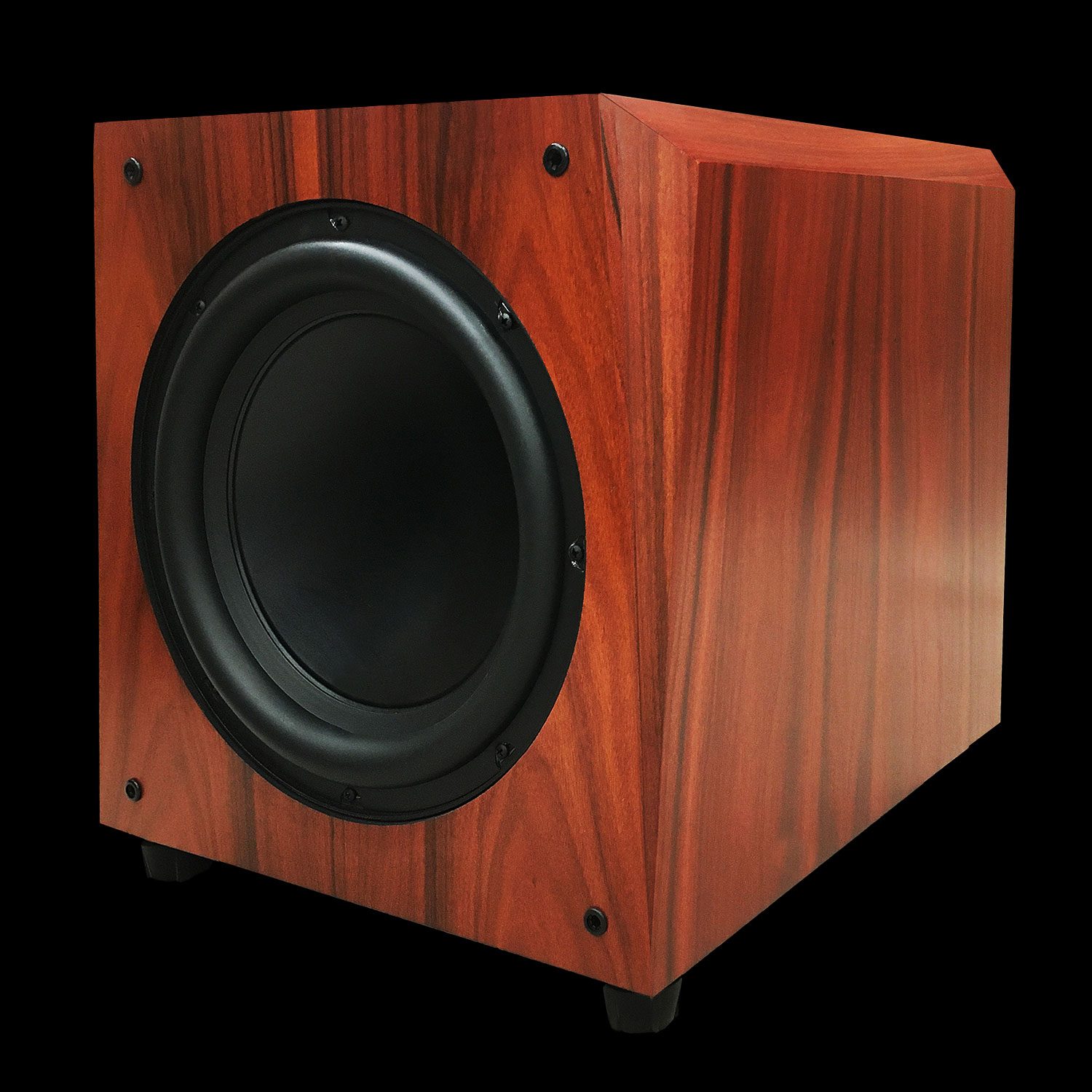

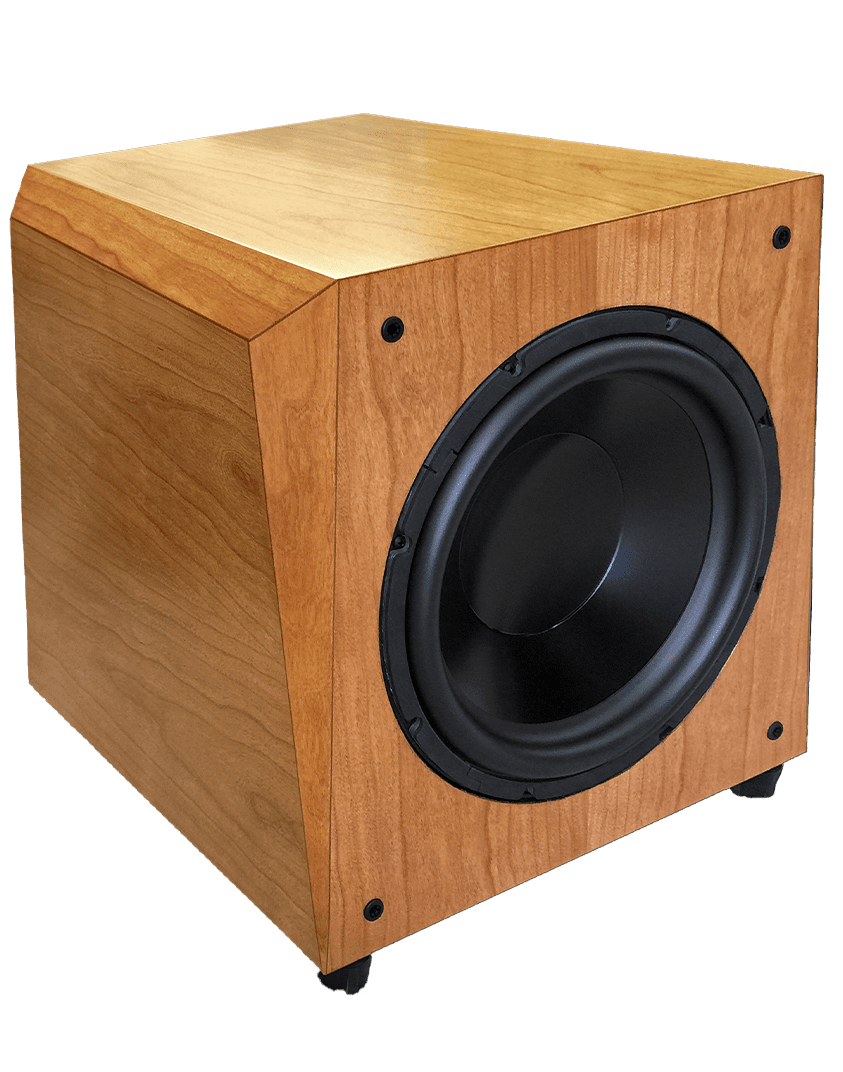

The Metro XD subwoofer is ideal for studios, small home theater systems, or smaller rooms. Its diminuative 16″ cube is capable of an astounding 118dB of output. A perfect complement for systems with low end drivers smaller than 10″.
B-Stock Model Available!
B-Stock Model Available!The Legacy Metro XD: Compact Subwoofer, Massive Bass
The Legacy Metro XD subwoofer is a high-output, compact solution for adding deep and impactful bass to your audio system. This Legacy Audio subwoofer utilizes a 12-inch long-throw driver powered by 700 watts of clean amplification.

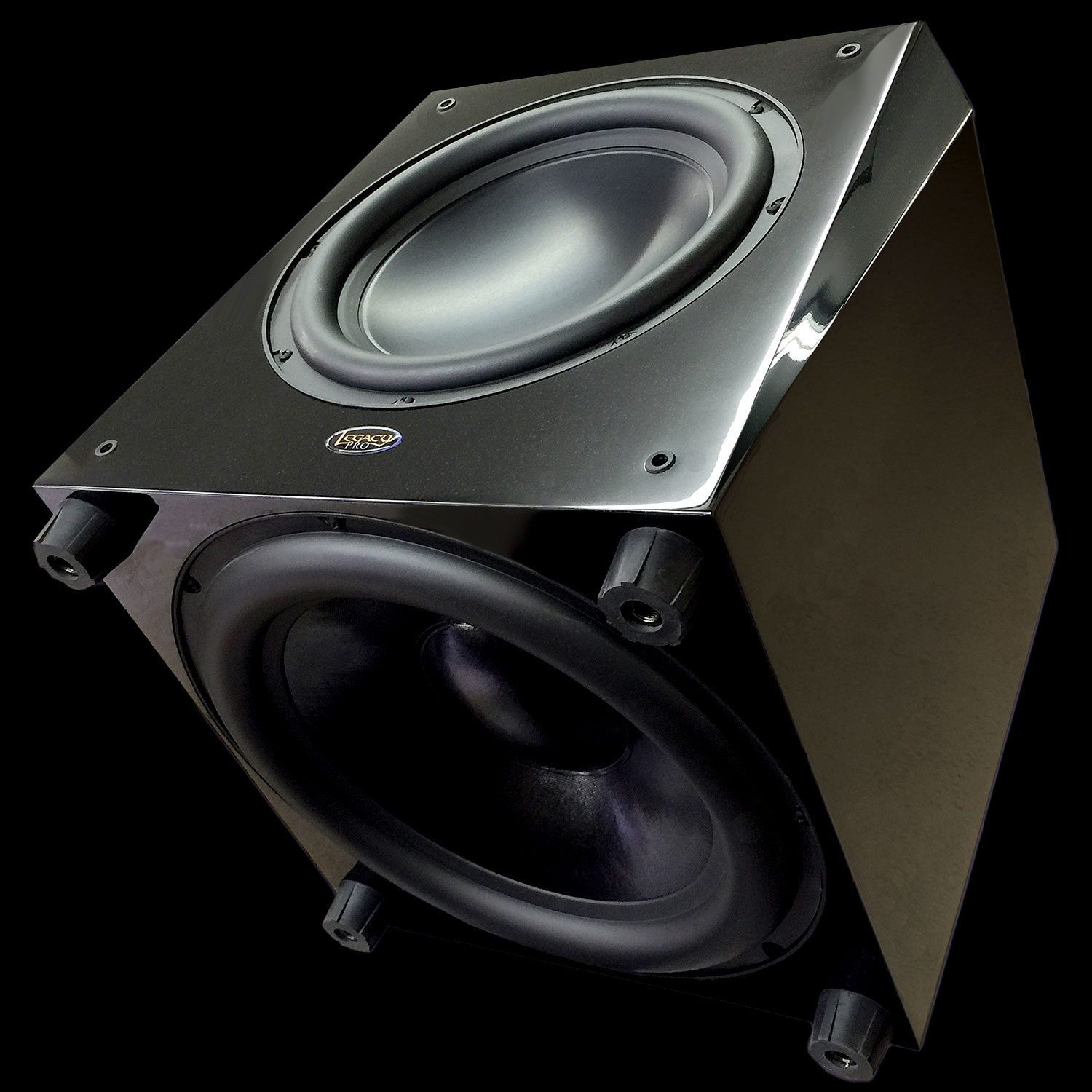

To achieve its remarkable extension, the Metro XD employs a 15-inch down-firing radiator, providing the piston area needed for powerful low-frequency effects. Its compact size makes it a perfect choice for home theaters and two-channel systems where space is a concern.
The Metro XD delivers deep, clean, and musical bass from a surprisingly small footprint, making it the best compact high-output subwoofer on the market.
| Product Manual | Download Manual |
| Application | Compact sub with deep powerful bass |
| System Type | Subwoofer, pneumatically coupled |
| Subwoofer | 12″ spun aluminum diaphragm, 480oz motor structure, cast frame, 3″ dual 4 layer voice coil |
| Sub-Bass Radiator | 15″ mass loaded down firing |
| Low Frequency Alignment | 6th Order |
| Inputs | LFE, L/R RCA, balanced XLR |
| Internal Amplification | 700W |
| Freq Response (Hz, +/- 2dB) | 20-150 |
| Impedance | 10k Ohm amp input |
| Phase Adjustment | Cont. +/-180 |
| Blend EQ | (+/- 12dB@45Hz) |
| Max SPL | 118 dB @ 1m |
| Low Pass Filter Slope | 18 dB per octave |
| Crossover (Hz) | 40-150 |
| Dimensions (inches) | 16 x 16 x 16 |
| Weight | 68 lbs |
| Shipping Dimensions (inches) | 22.63 x 22.5 x 21.75 |
| Shipping Weight | 112 lbs |

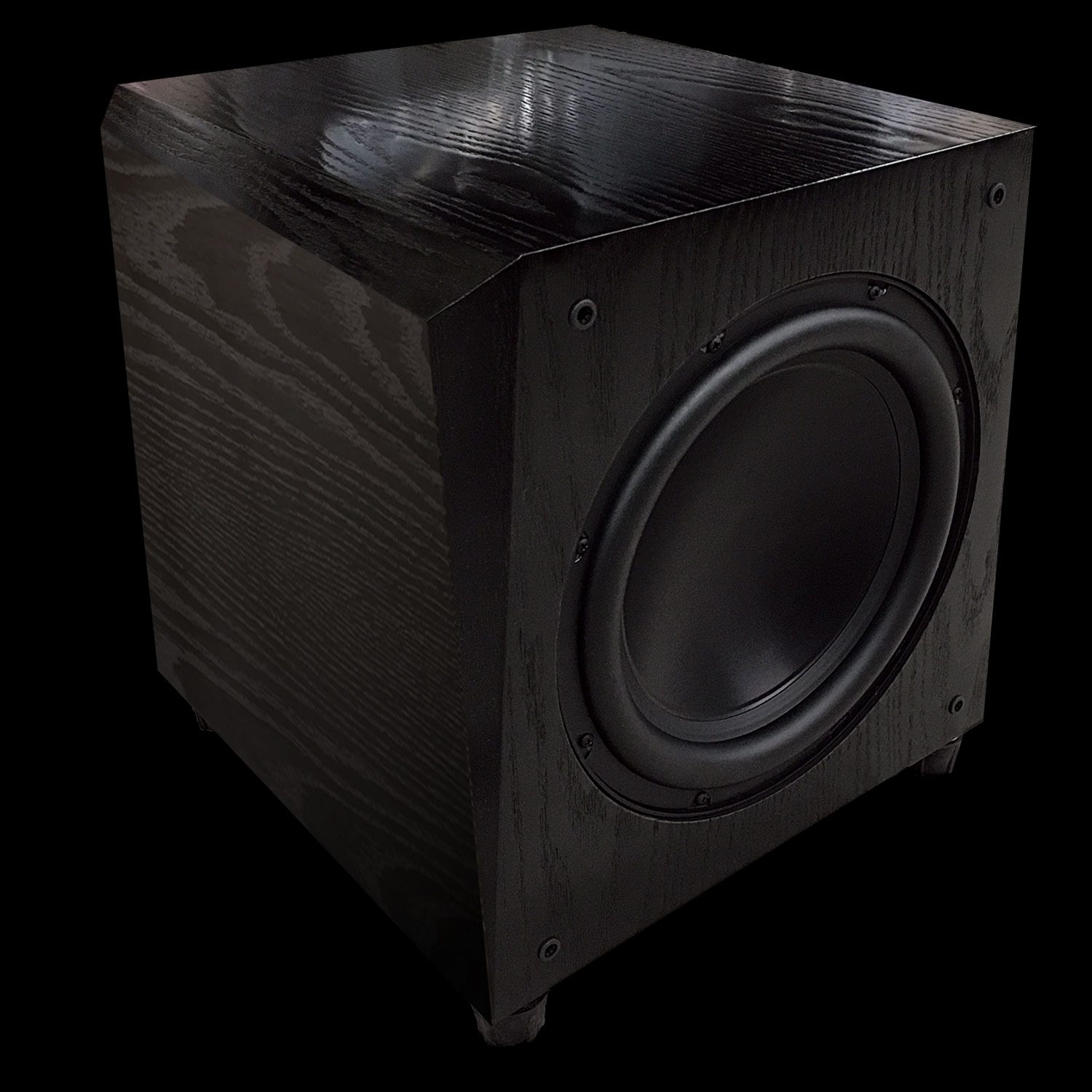

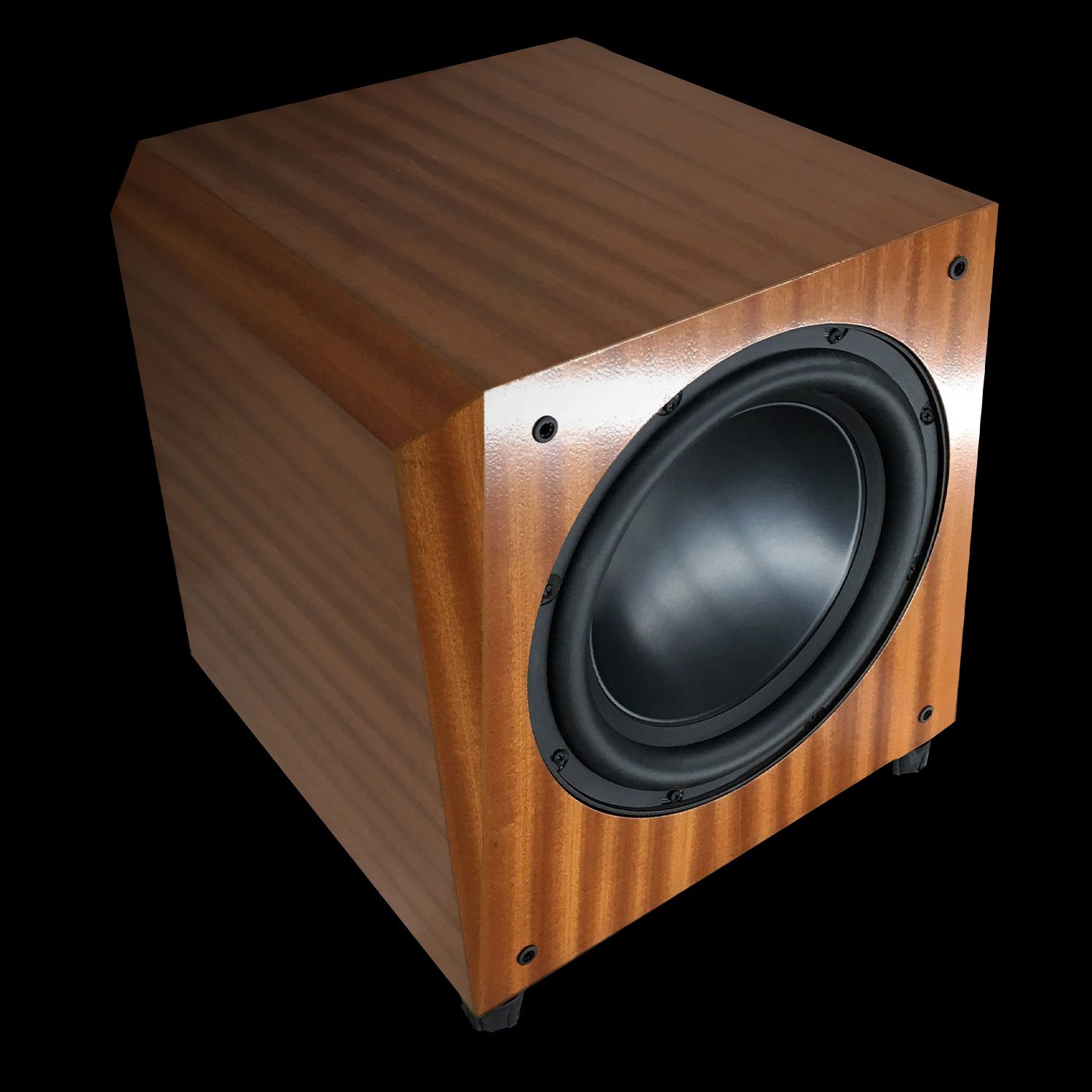

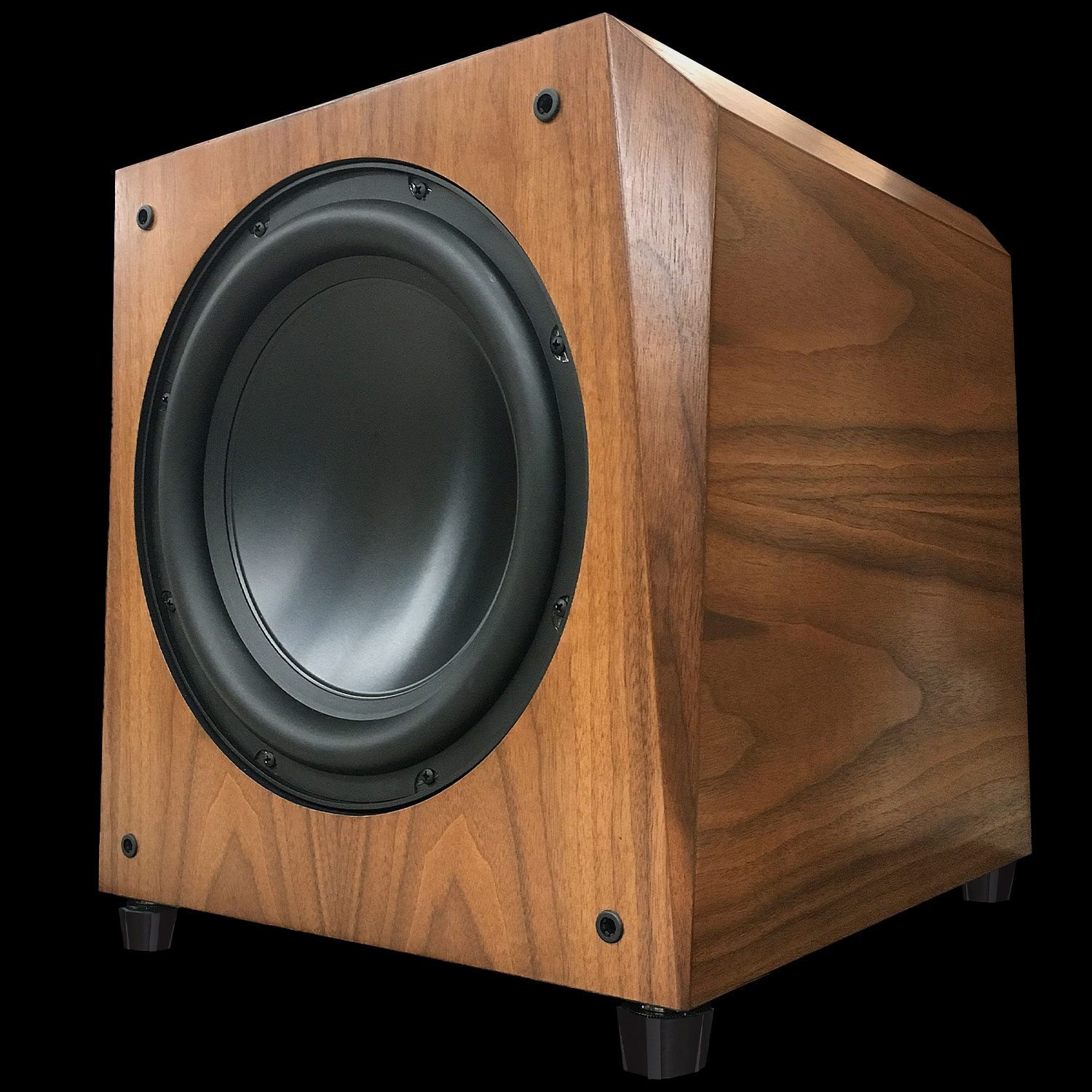

PEARL
PEARL
NATURAL SATIN
GLOSS CABERNET
ASH BURL

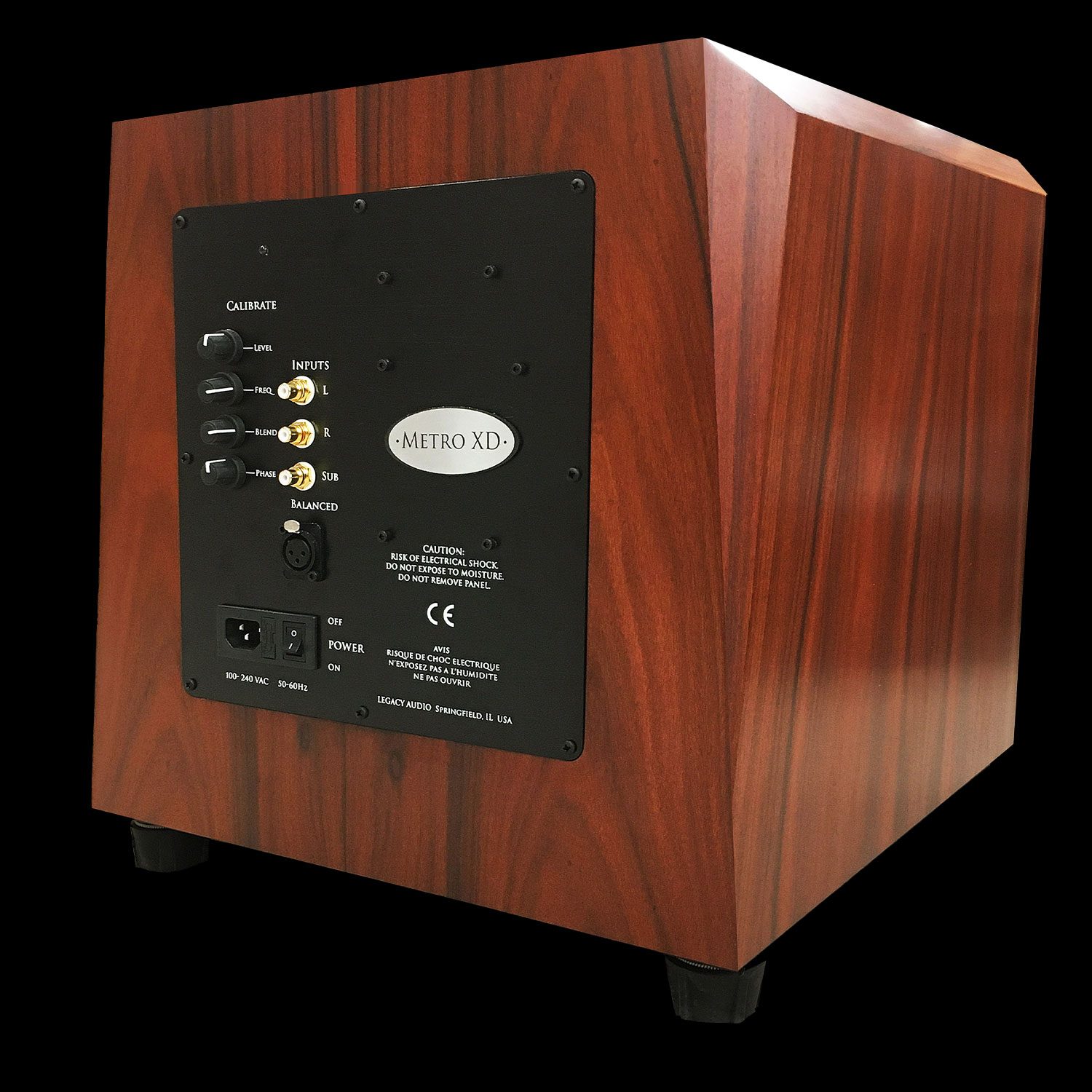

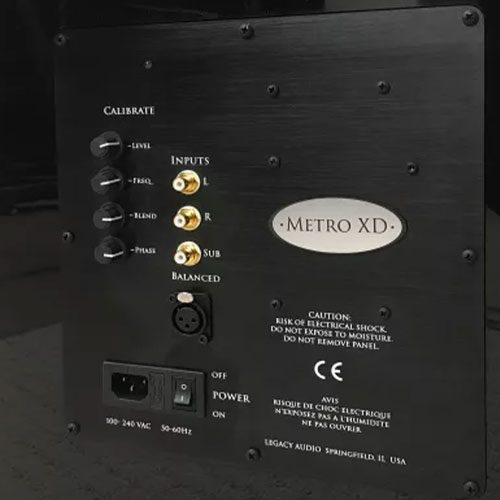

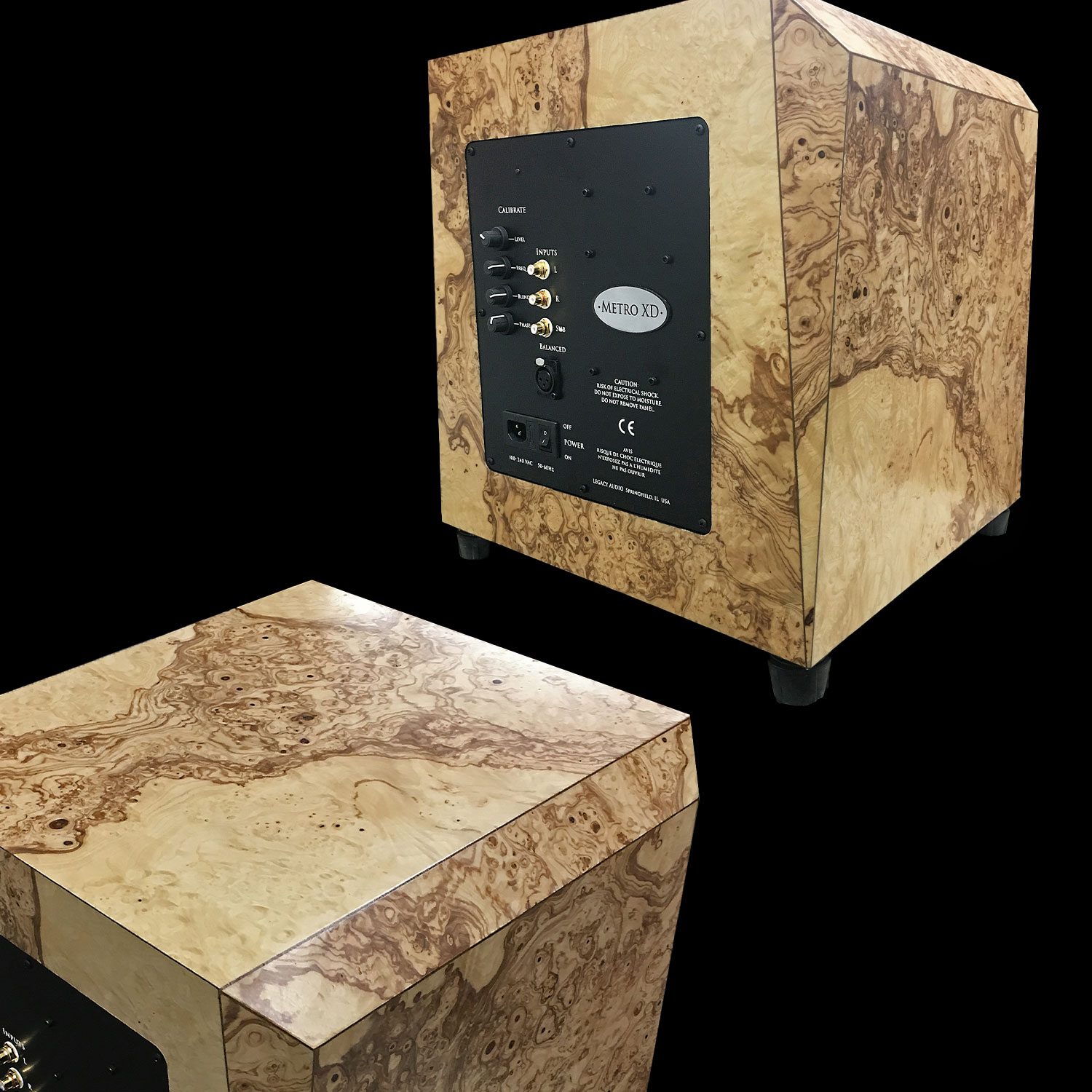

Metro XD provides variable level control, continuous phase adjustment and a wide range of crossover frequencies. It also features our unique blend control to finesse the transition area from your main speakers.

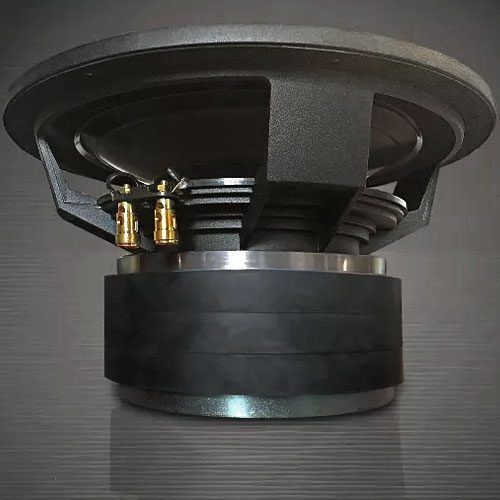

This driver is engineered for maximum excursion and powerful bass. Its dual 3-inch, four-layer voice coil and massive 480-ounce motor work together to for superior damping and cone control. The internal ICEpower® amplifier is precisely matched to the voice coils for optimal performance.
