PRICE:
Price range: $4,000.00 through $10,000.00
Take advantage of the increased dynamic capability of high resolution recordings with the Legacy iV series amplifier. You will enjoy a lower noise floor in your recordings, stronger crests, and increased dynamic resolution. Models available from 2 to 8 channels.

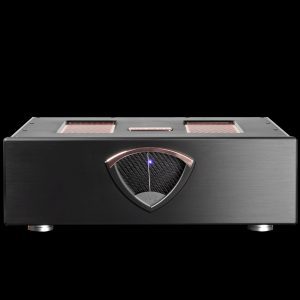

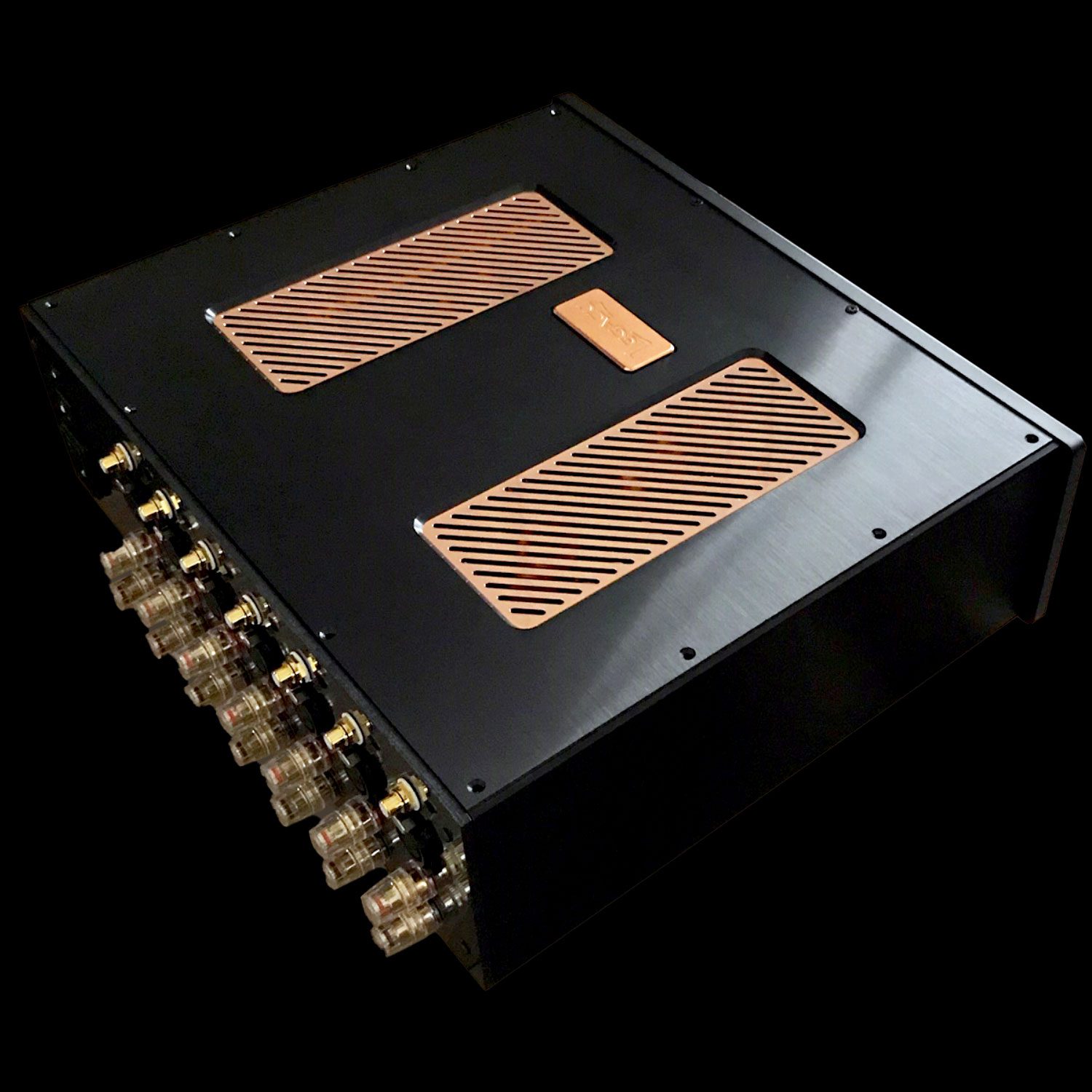

Powerful and Efficient Amplification: The Legacy iV Series
The Legacy iV series amplifiers provides an ideal blend of power and efficiency for stereo audio systems. These Legacy Audio amps utilize advanced technology to deliver over 670 watts per channel into 4 ohms. Their high-current output ensures stability with low-impedance loads, delivering a clean and dynamic sound. The iV series amplifiers are high-performance multi-channel amplifiers providing virtually noise-free listening experiences, making them a reliable and powerful choice for a wide range of speakers.
iV Series Features:
- Short circuit protection
- 38A peak output current
- Thermal protection
- Triggered On/Off
- Standby switch

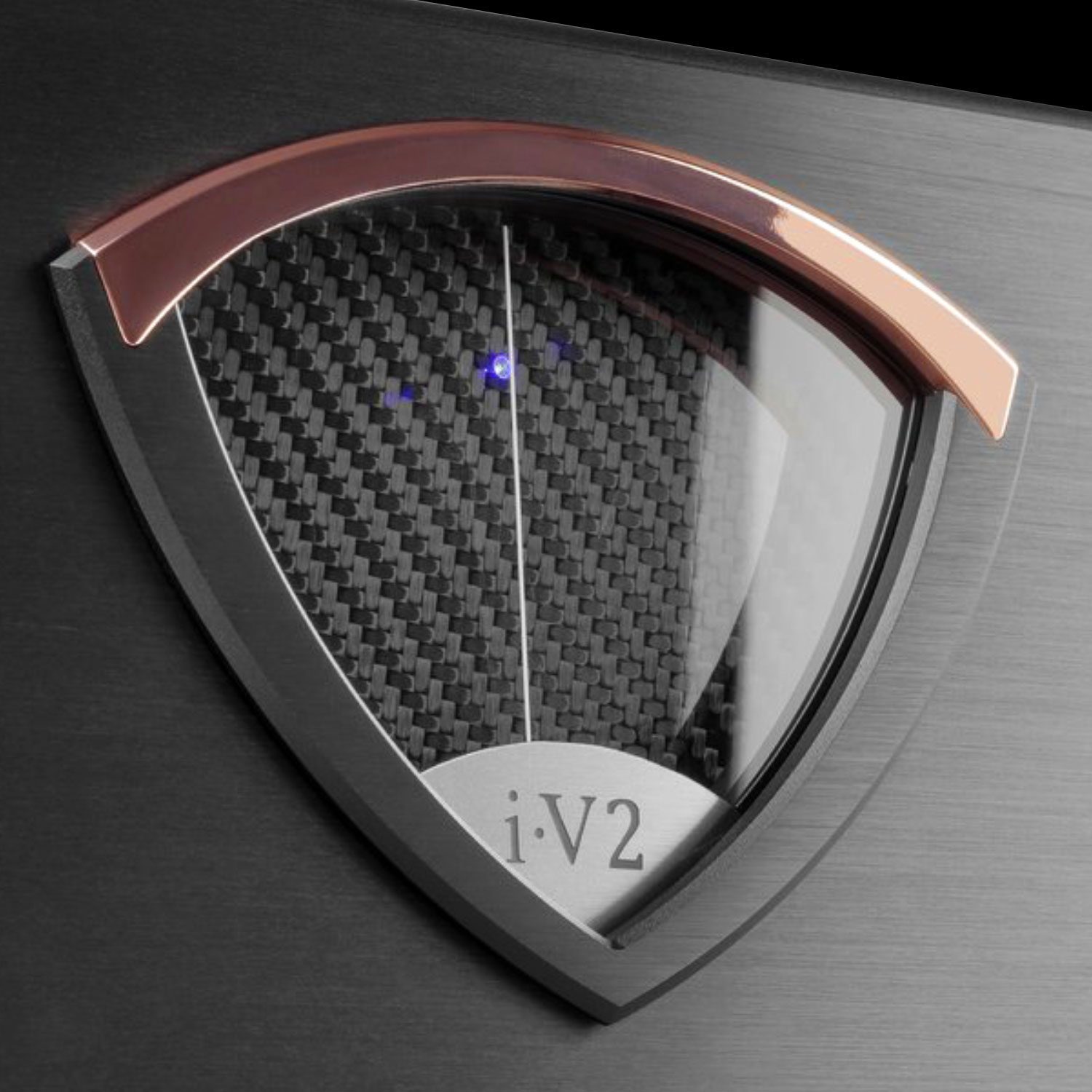

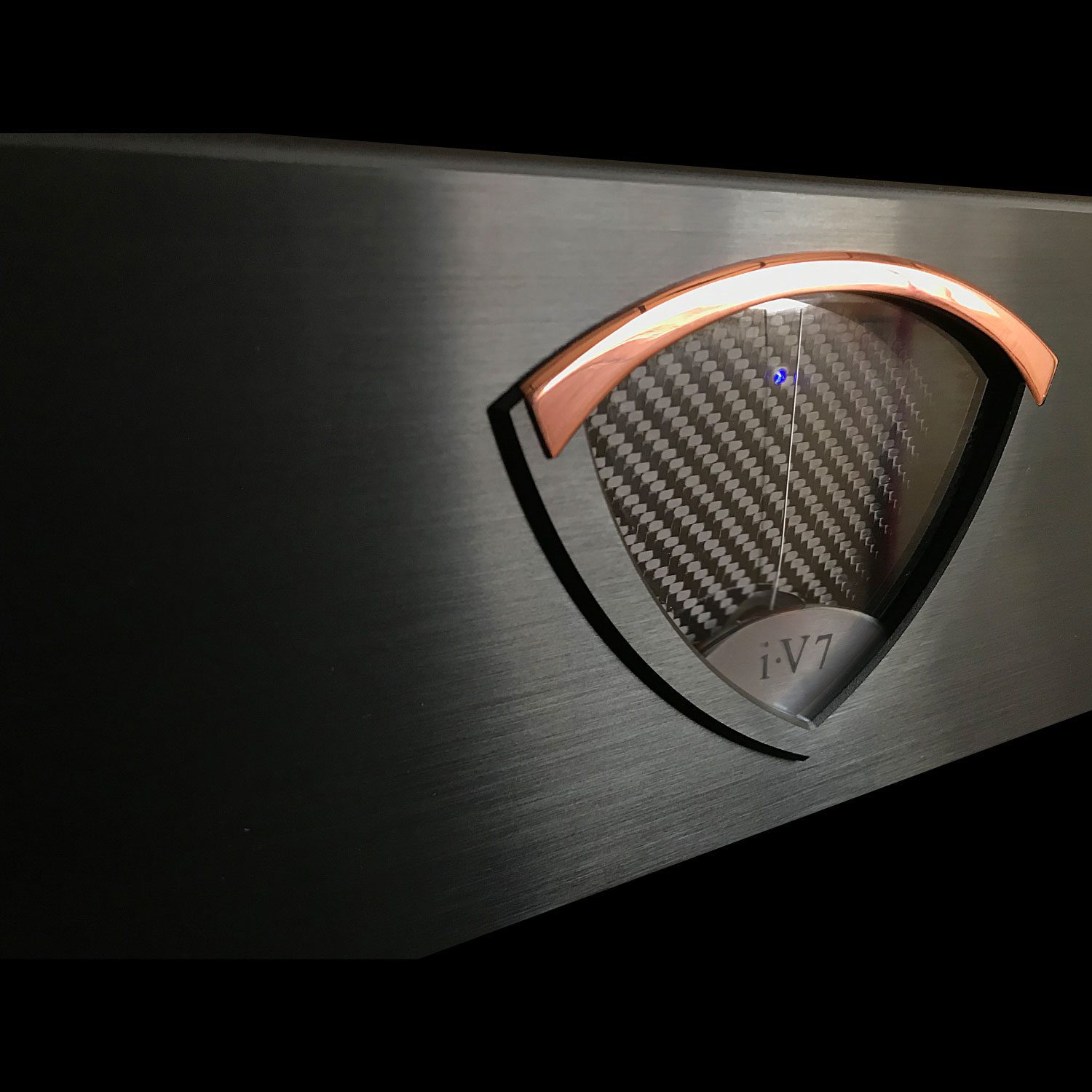

- Front panel status indicator
The Legacy iV series amplifiers are available in two to eight channel configurations. For a dedicated module for each channel, please check out the iV ULTRA series amplifiers.
| Product Manual | Download Manual |
| Power Rating: | 660 watts per channel @ 4 ohms, all channels driven 610 watts per channel @ 8 ohms, all channels driven |
| Peak Power: | 1.4 kW peak power from any channel @ 4 Ohm/1kHz with less than 1% distortion |
| Over Current Protection: | Breaker reset for excessive sustained current |

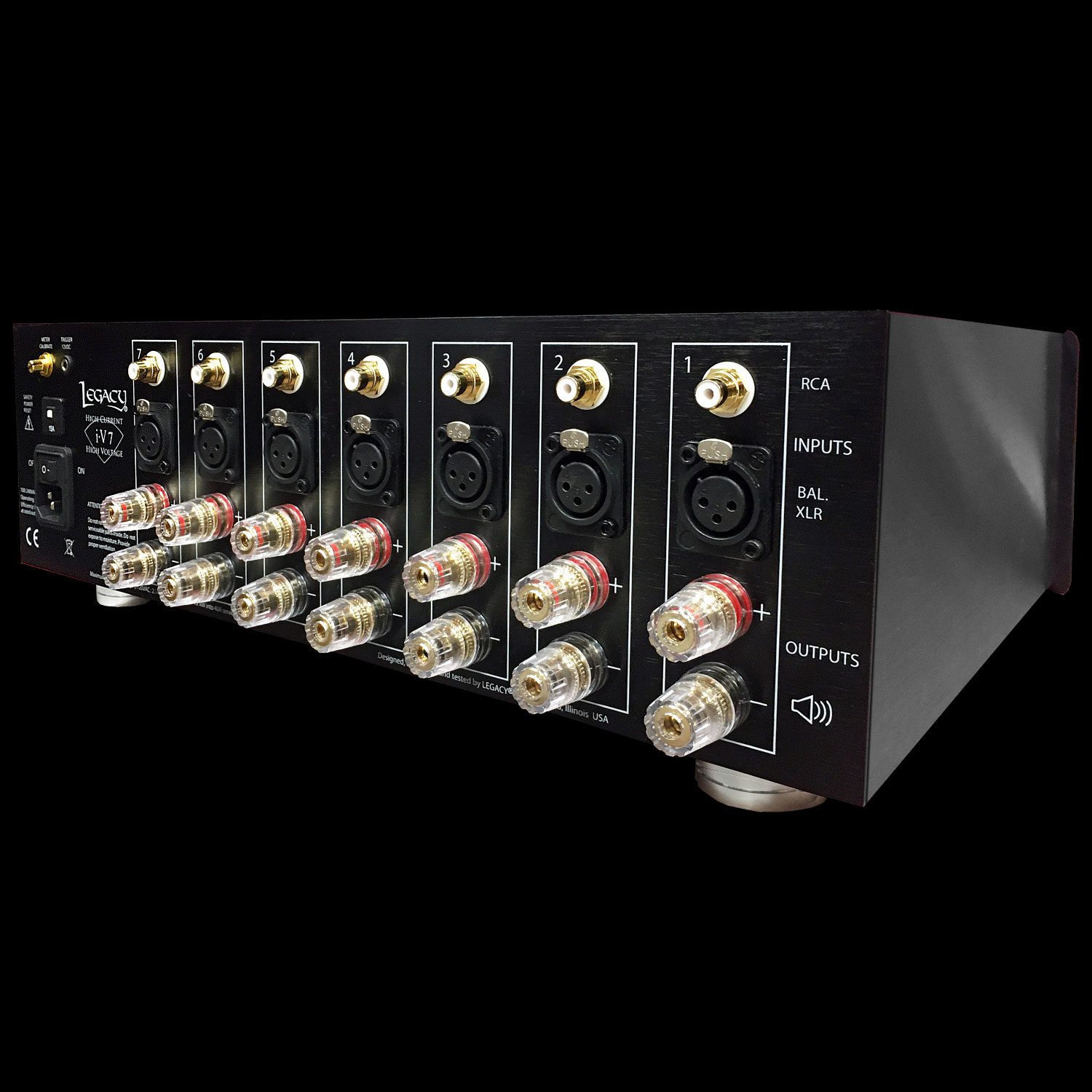

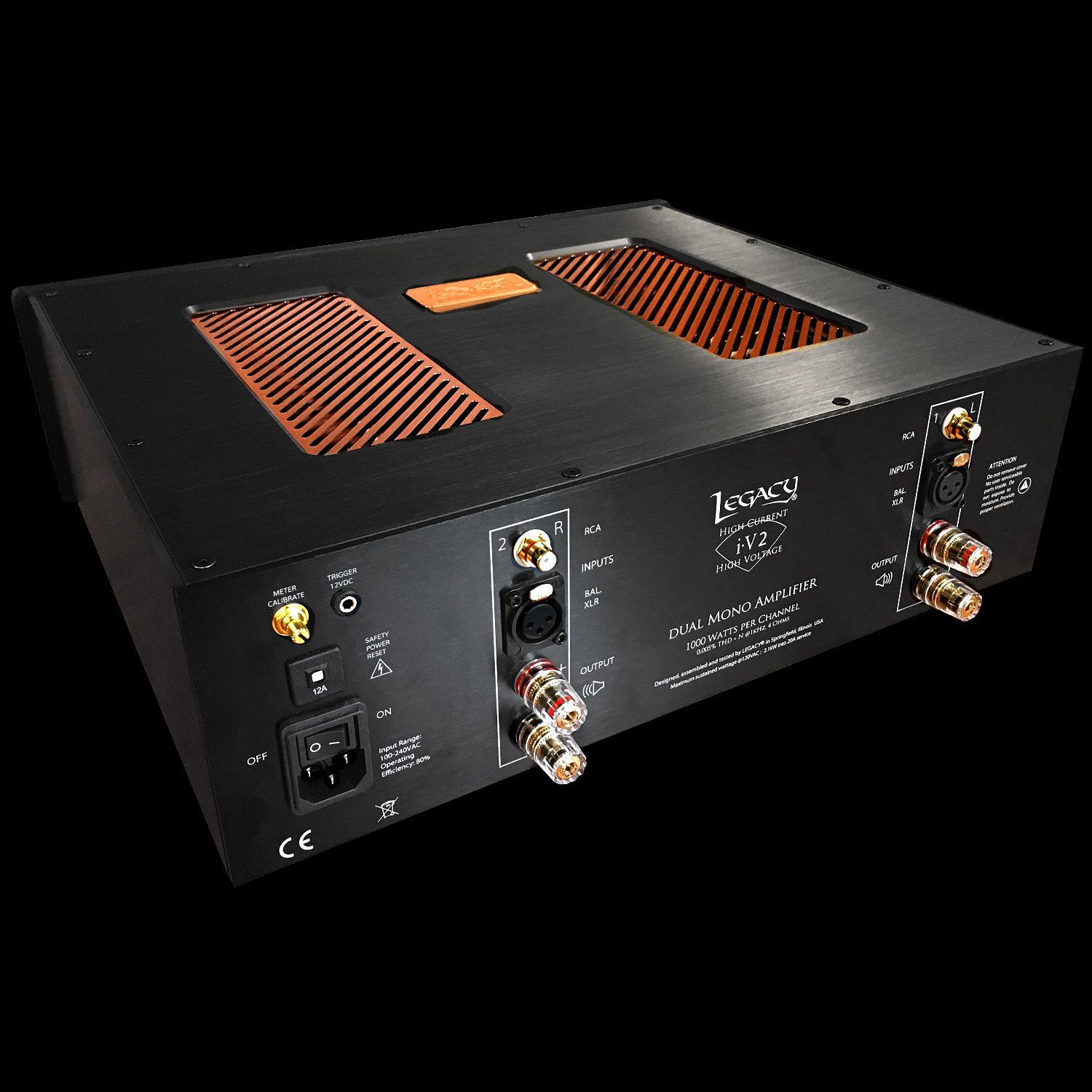

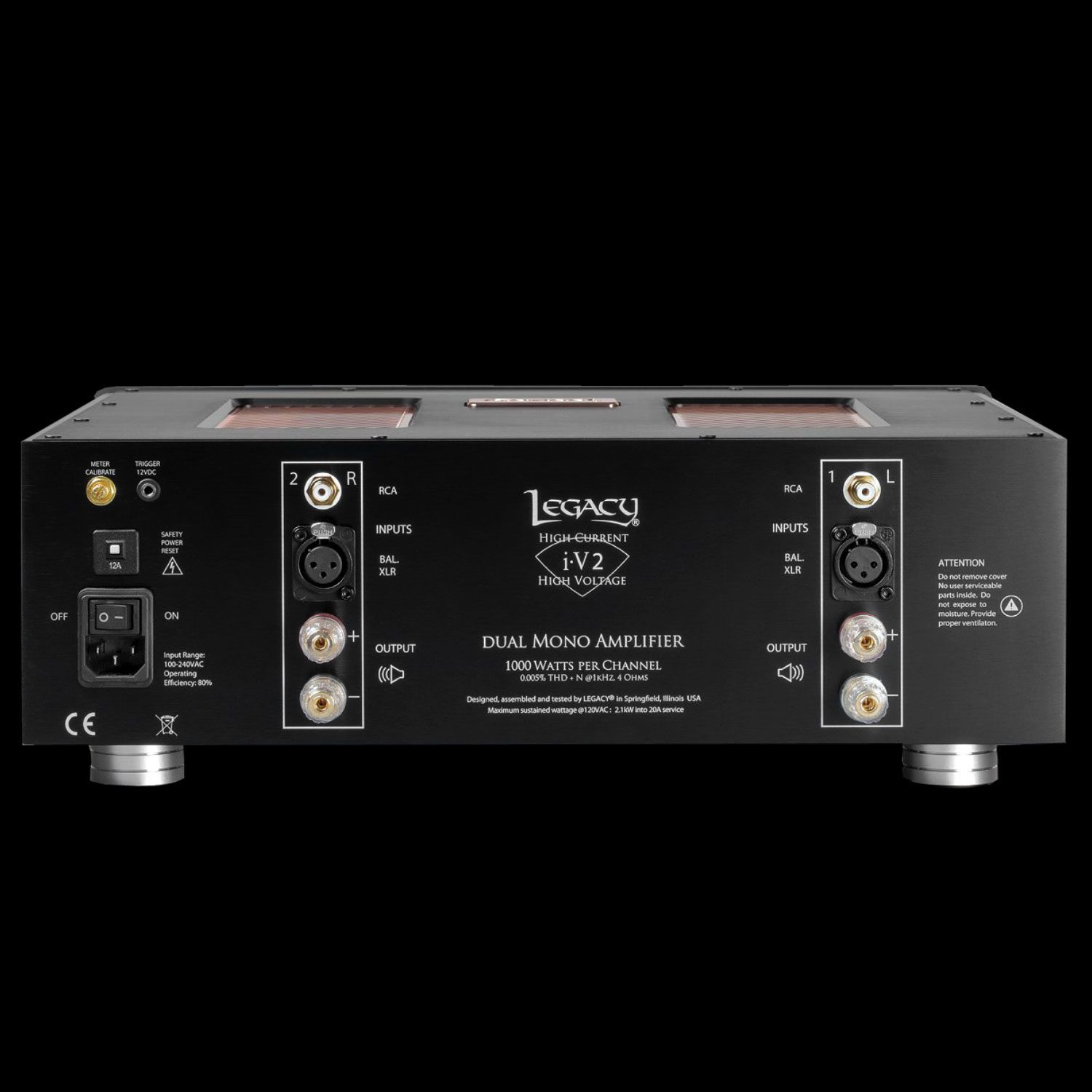

| Inputs: | Fully balanced XLR, single-end RCA |
| Outputs: | Gold plated safety approved five-way binding posts |
| Damping factor: | 750 average, 20Hz to 1kHz |
| Voltage Gain: | 25.8 dB |
| Dynamic Range: | 127dB, A- weighted |
| Voltage/Current: | 98 Vp / 38Ap |
| Input Sensitivity: | 5.0Vp @ 1200W/4 Ohm |
| Input Impedance: | 38 kOhm for both pin 2+ and pin 3- |
| Channel Separation: | 120 dB at 1kHz |
| Unit Dimensions: | 17.5″ W x 15.6″ D x 5.8″ H |
| Unit Shipping Weight: | iV2:28 lbs each iV3: 30 lbs each iV4: 32 lbs each iV5: 35 lbs each iV6: 36 lbs each iV7: 37 lbs each iV8: 39 lbs each |
| Notes: | A conventional single AC cord is provided. |
