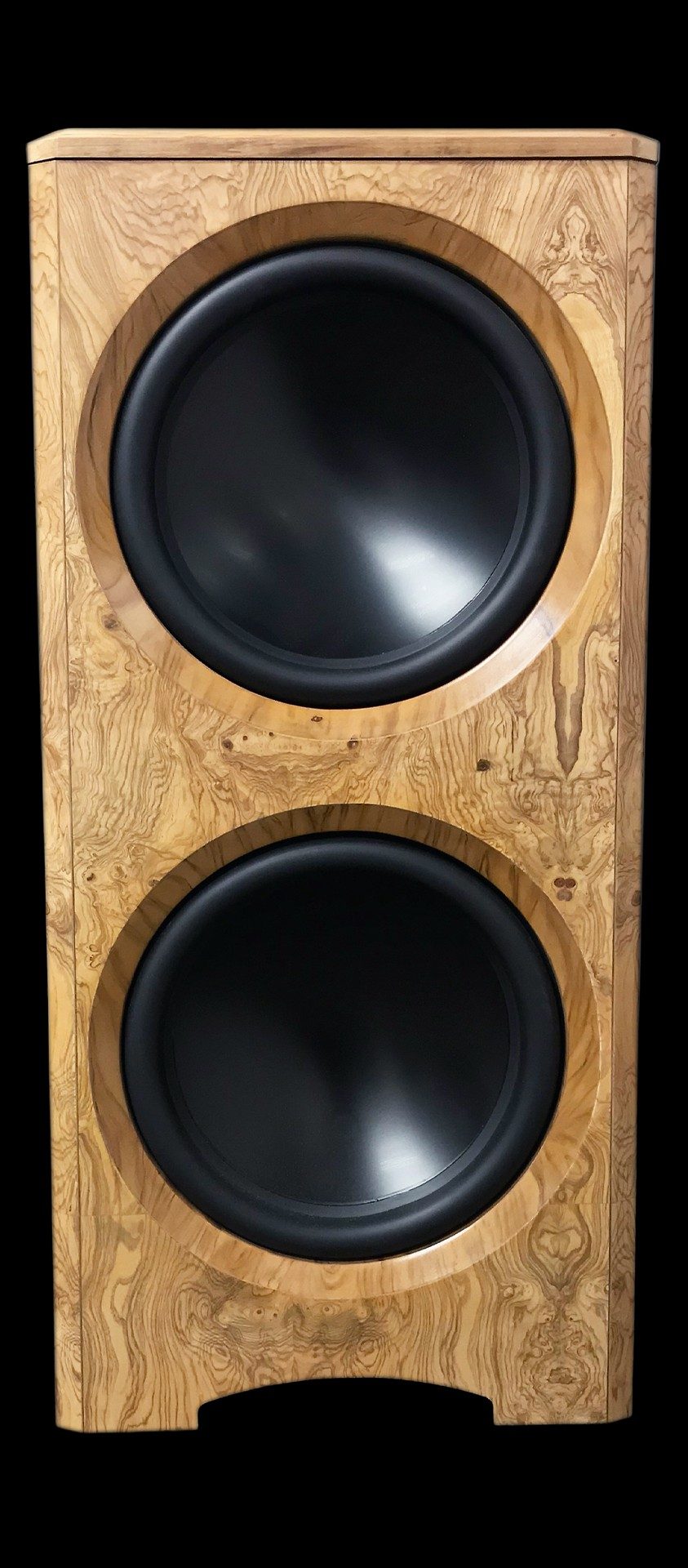

Legacy Goliath XD Subwoofer - high output powered sub for home theaters and studios.
Masters COLLECTION
Goliath XD

PRICE:

Price range: $12,500.00 through $14,500.00

The ultra-high performance Goliath XD subwoofer will match the dynamic range of even the most efficient speakers. Massive motors on dual 15″ spun aluminum diaphragm woofers provide world class performance and will handily deliver 130 dB of low distortion output. Bass pressure in rooms will rise and fall so quickly that room boom and droning is not an issue. Kettle drums will roll and thunder, kick drums will have visceral punch and pedal notes will surge.

You might also like

Feel the Deepest Bass with the Legacy Goliath XD Subwoofer

The Legacy Goliath XD subwoofer is an unyielding force of low-frequency reproduction, designed for audiophiles who demand absolute authority in bass. The dual 15″ woofers are powered by 1400 watts of clean, high efficiency internal amplification.

The Legacy Audio Goliath XD employs a pair of custom-weighted passive radiators to achieve the deepest possible extension without any port noise. With its robust construction and ultra-long-throw drivers, the Goliath XD delivers a clean, powerful, and deeply impactful bass that transforms both music and movies.

This dual 15-inch subwoofer is the ultimate choice for a truly immersive and tactile bass experience.

Product Manual Download Manual
Application Highly Articulate reference grade dual sub-woofer system
System Type Mutually coupled, dynamically stabilized
Subwoofer Dual 15″ Spun aluminum diaphragm, cast frame, ultra long throw suspension

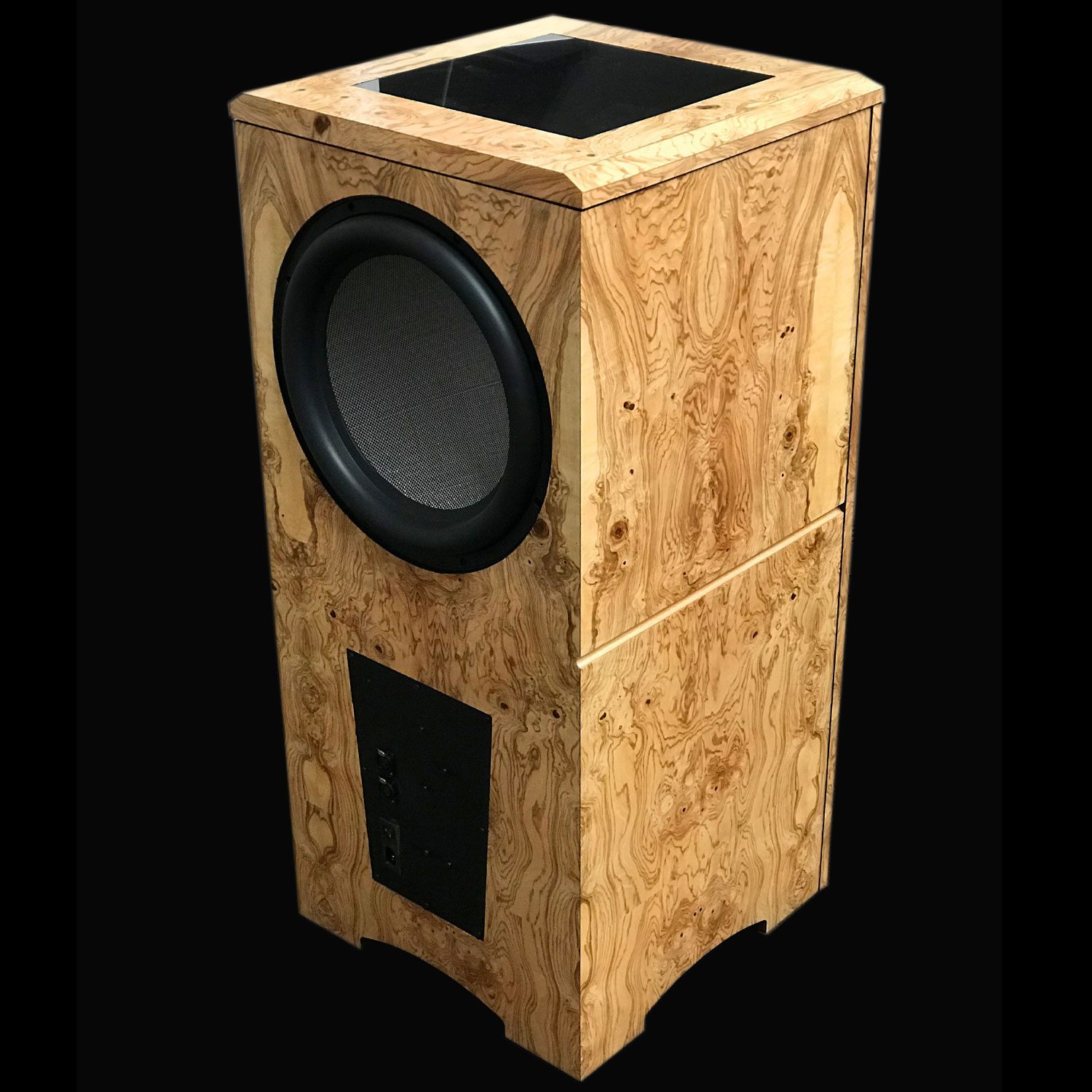

Radiator Dual 15″ mass loaded, bottom & rear firing
Low Frequency Alignment 8th Order/Back EMF cancelling
Inputs Dual XLR balanced
Internal Amplification Dual 700W (1400W total) ultra efficient amplifiers
Frequency Response (Hz, +/- 2dB) 12-150 Hz
Impedance 10K Ohm amp input
Phase Adjustment Available via external processor
Blend EQ Available via external processor
Max. SPL 130 dB @ 1m
Low Pass Filter Slope Linkwitz-Riley 6/12/24/48 dB per octave
Crossover (Hz) 30-200
Dimensions (WxHxD) 18.125 x 40.125 x 19.125
Weight 190 lbs
The following finishes are available
Standard Colors

BLACK OAK
MEDIUM OAK

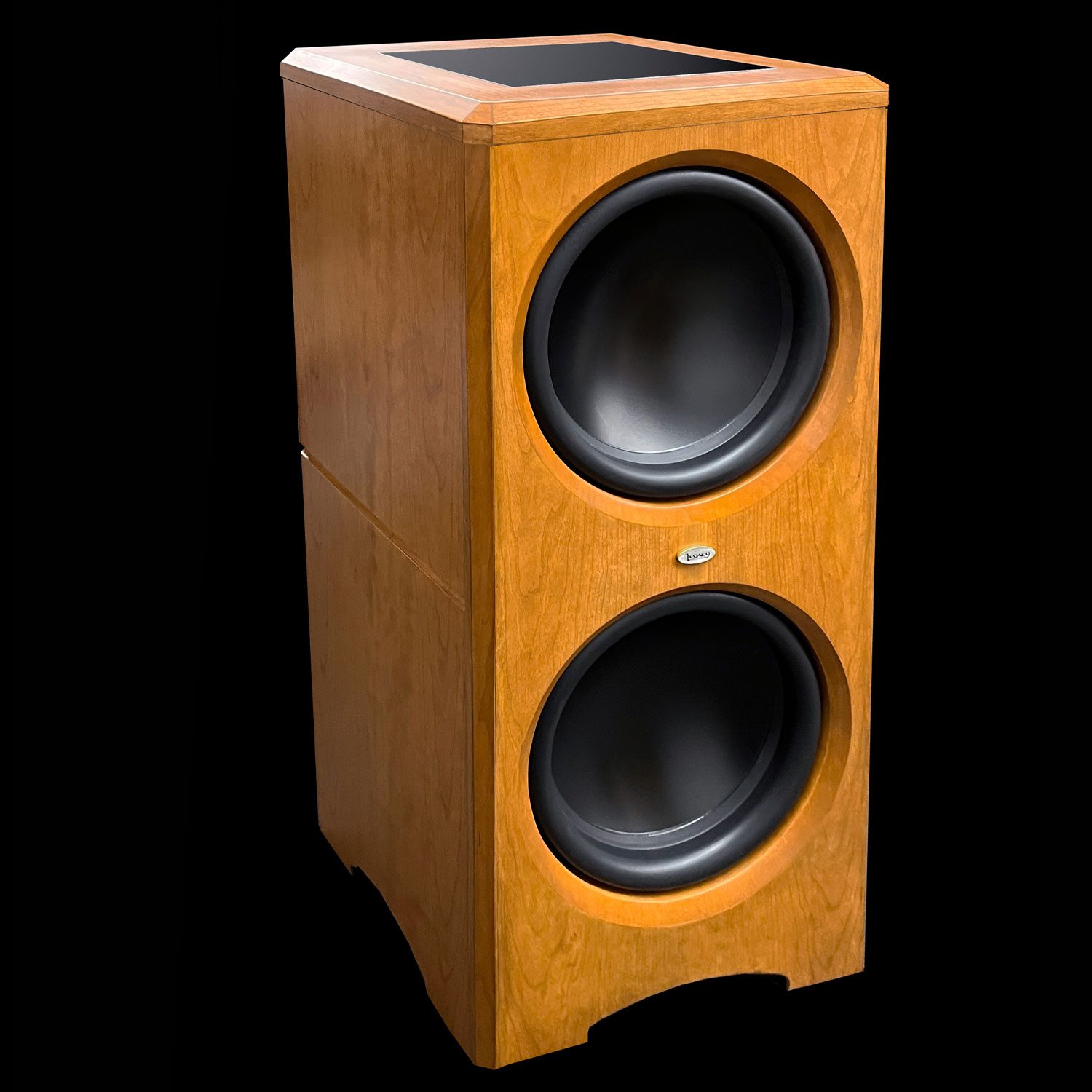

NATURAL CHERRY
WALNUT
Premium Colors

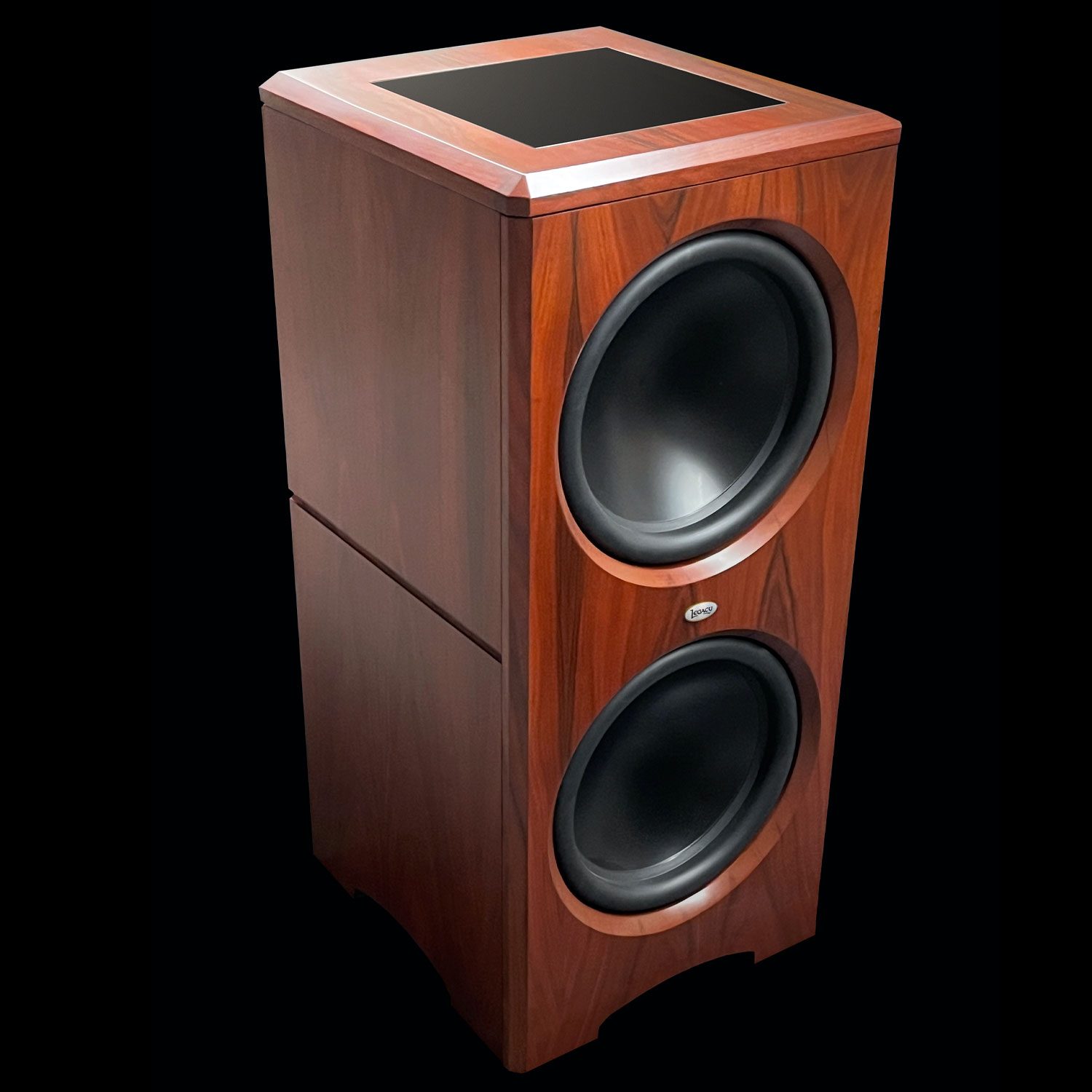

ROSEWOOD
BIRDSEYE MAPLE

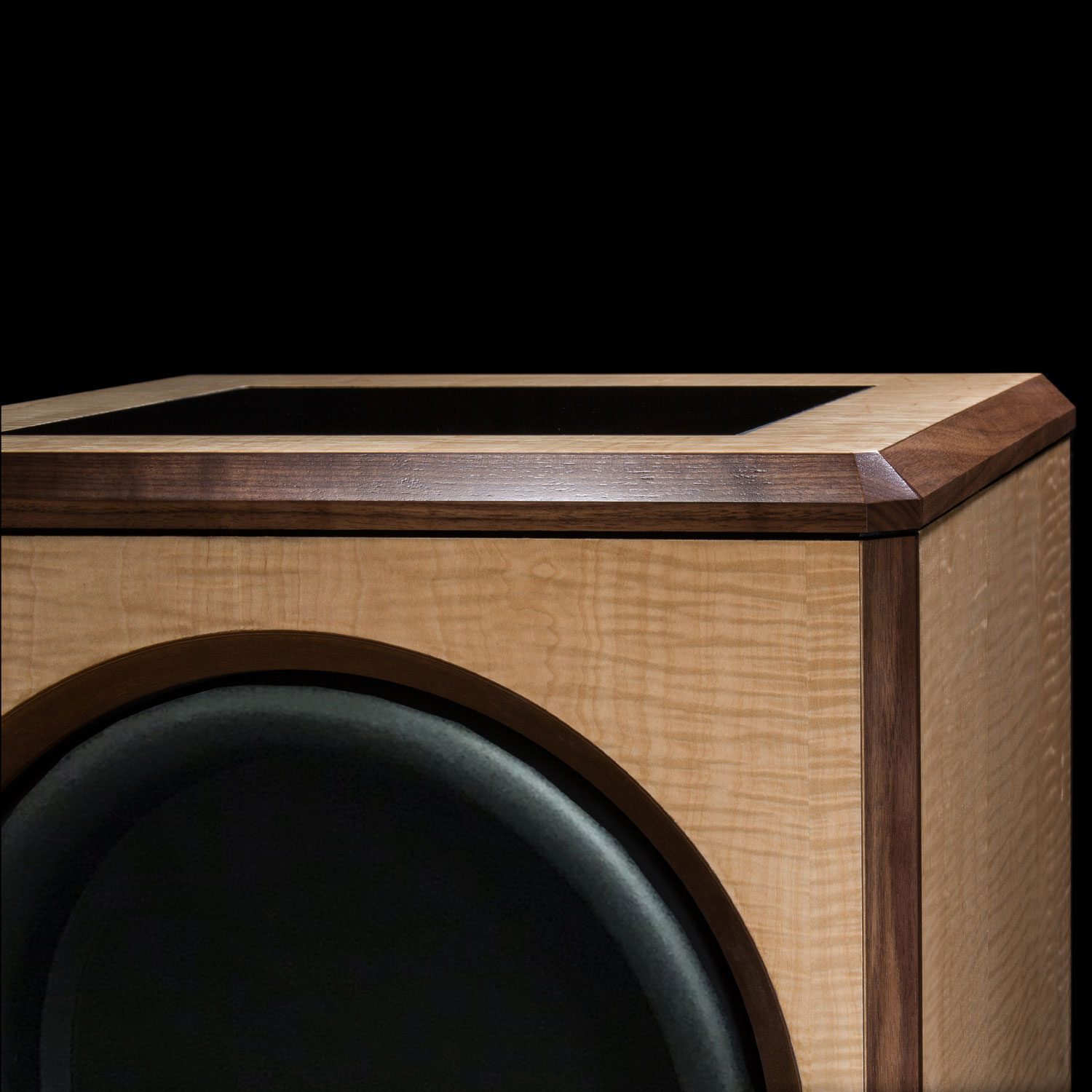

CURLY MAPLE
Exotic Colors

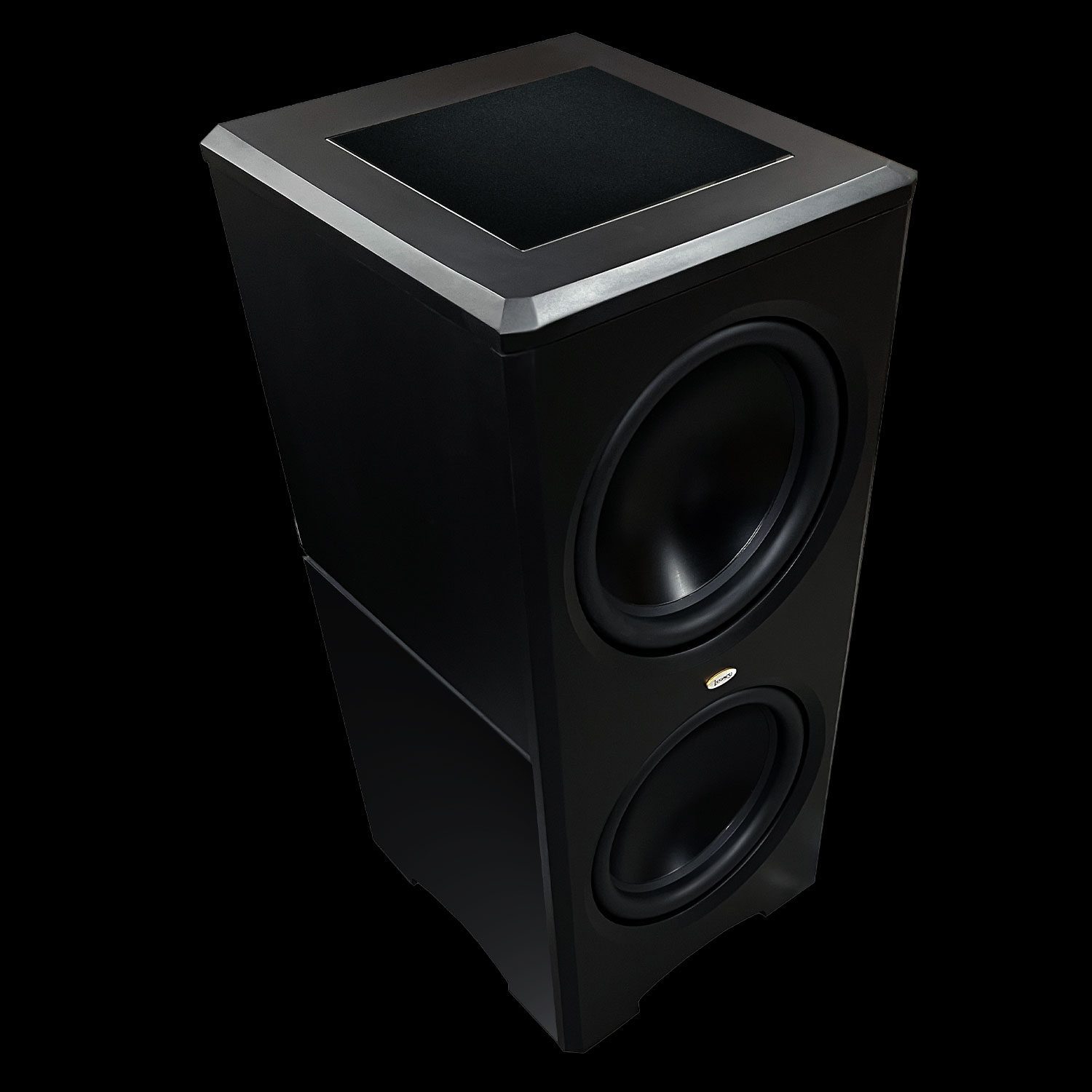

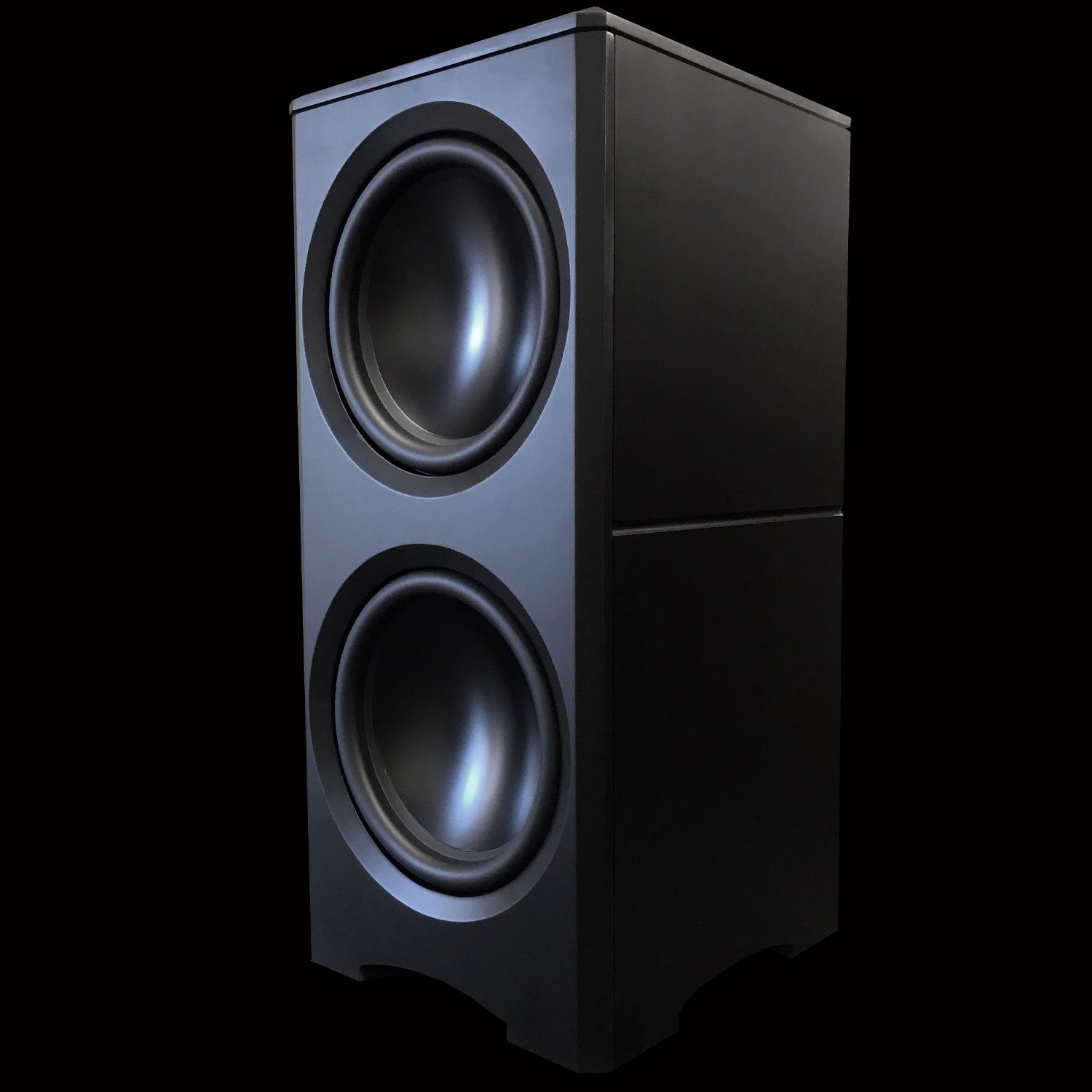

BLACK
PEARL
WHITE
PEARL
SAPELE POMMELE
NATURAL SATIN
SAPELE POMMELE

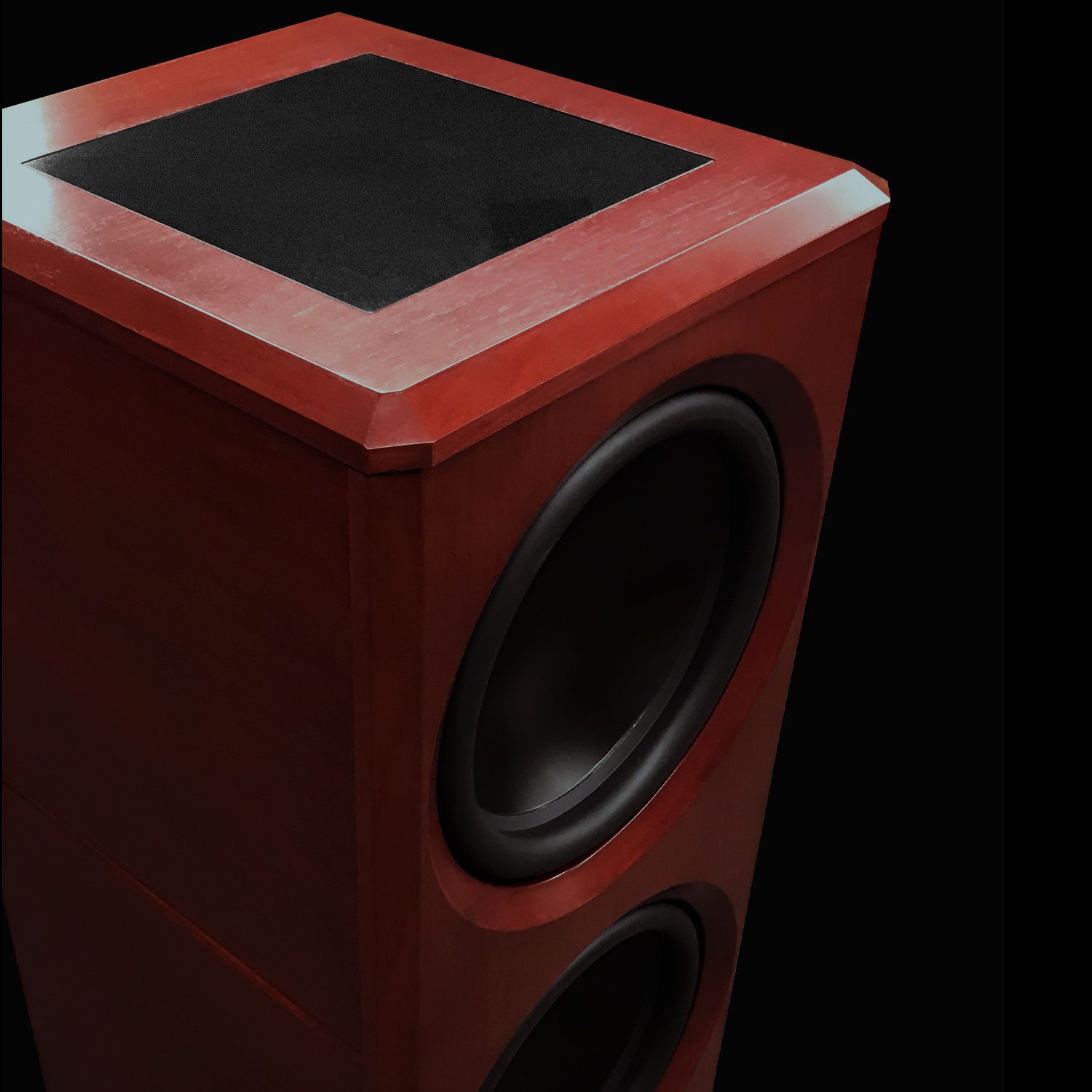

GLOSS CABERNET
OLIVE

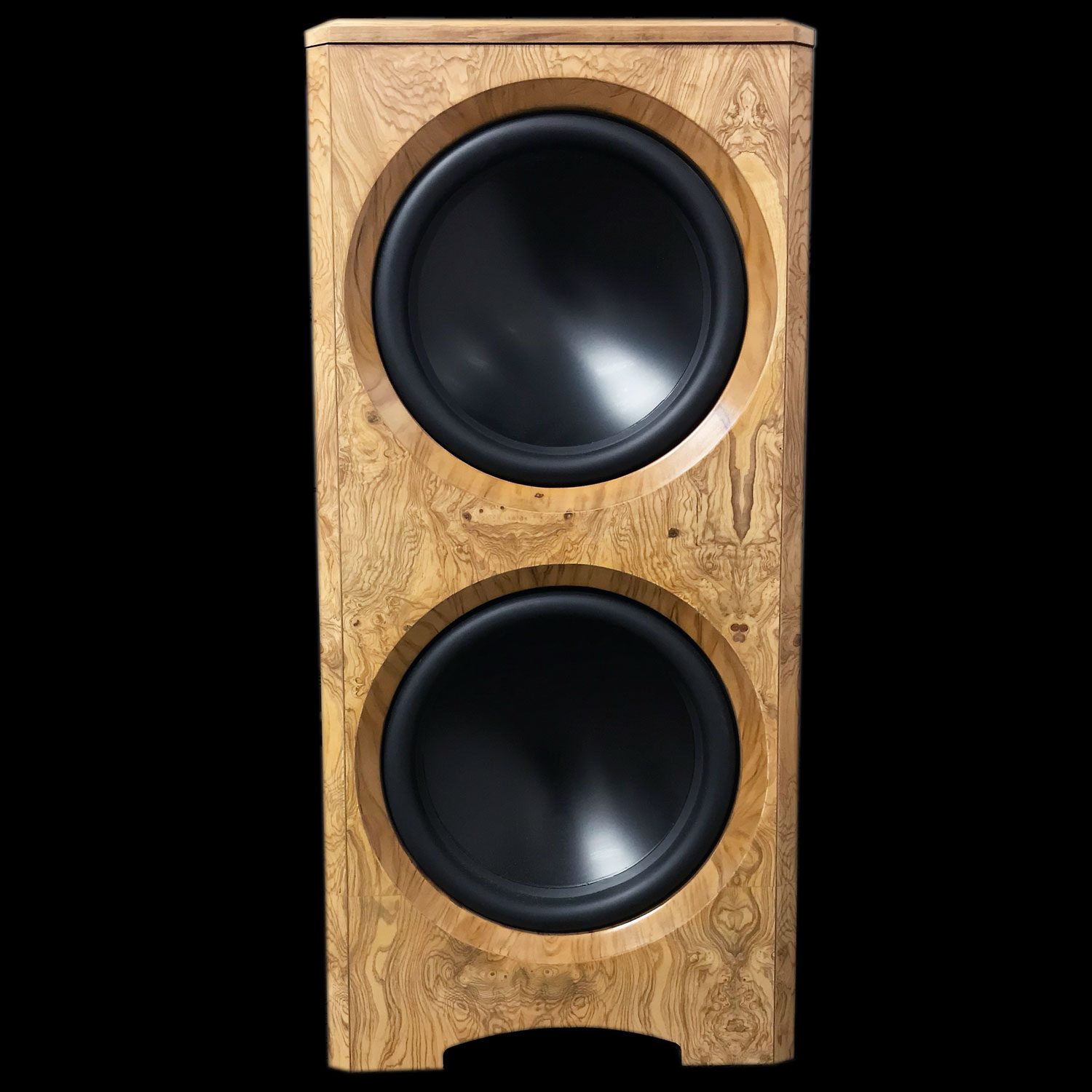

ASH BURL

Feel the Deepest Bass with the Legacy Goliath XD Subwoofer

The Legacy Goliath XD subwoofer is an unyielding force of low-frequency reproduction, designed for audiophiles who demand absolute authority in bass. The dual 15″ woofers are powered by 1400 watts of clean, high efficiency internal amplification.

The Legacy Audio Goliath XD employs a pair of custom-weighted passive radiators to achieve the deepest possible extension without any port noise. With its robust construction and ultra-long-throw drivers, the Goliath XD delivers a clean, powerful, and deeply impactful bass that transforms both music and movies.

This dual 15-inch subwoofer is the ultimate choice for a truly immersive and tactile bass experience.

Product Manual Download Manual
Application Highly Articulate reference grade dual sub-woofer system
System Type Mutually coupled, dynamically stabilized
Subwoofer Dual 15″ Spun aluminum diaphragm, cast frame, ultra long throw suspension
Radiator Dual 15″ mass loaded, bottom & rear firing
Low Frequency Alignment 8th Order/Back EMF cancelling
Inputs Dual XLR balanced
Internal Amplification Dual 700W (1400W total) ultra efficient amplifiers
Frequency Response (Hz, +/- 2dB) 12-150 Hz
Impedance 10K Ohm amp input
Phase Adjustment Available via external processor
Blend EQ Available via external processor
Max. SPL 130 dB @ 1m
Low Pass Filter Slope Linkwitz-Riley 6/12/24/48 dB per octave
Crossover (Hz) 30-200
Dimensions (WxHxD) 18.125 x 40.125 x 19.125
Weight 190 lbs
The following finishes are available
Standard Colors

BLACK OAK
MEDIUM OAK
NATURAL CHERRY
WALNUT
Premium Colors

ROSEWOOD
BIRDSEYE MAPLE
CURLY MAPLE
Exotic Colors

BLACK
PEARL
WHITE
PEARL
SAPELE POMMELE
NATURAL SATIN
SAPELE POMMELE
GLOSS CABERNET
OLIVE
ASH BURL
