PRICE:
Price range: $5,000.00 through $6,500.00

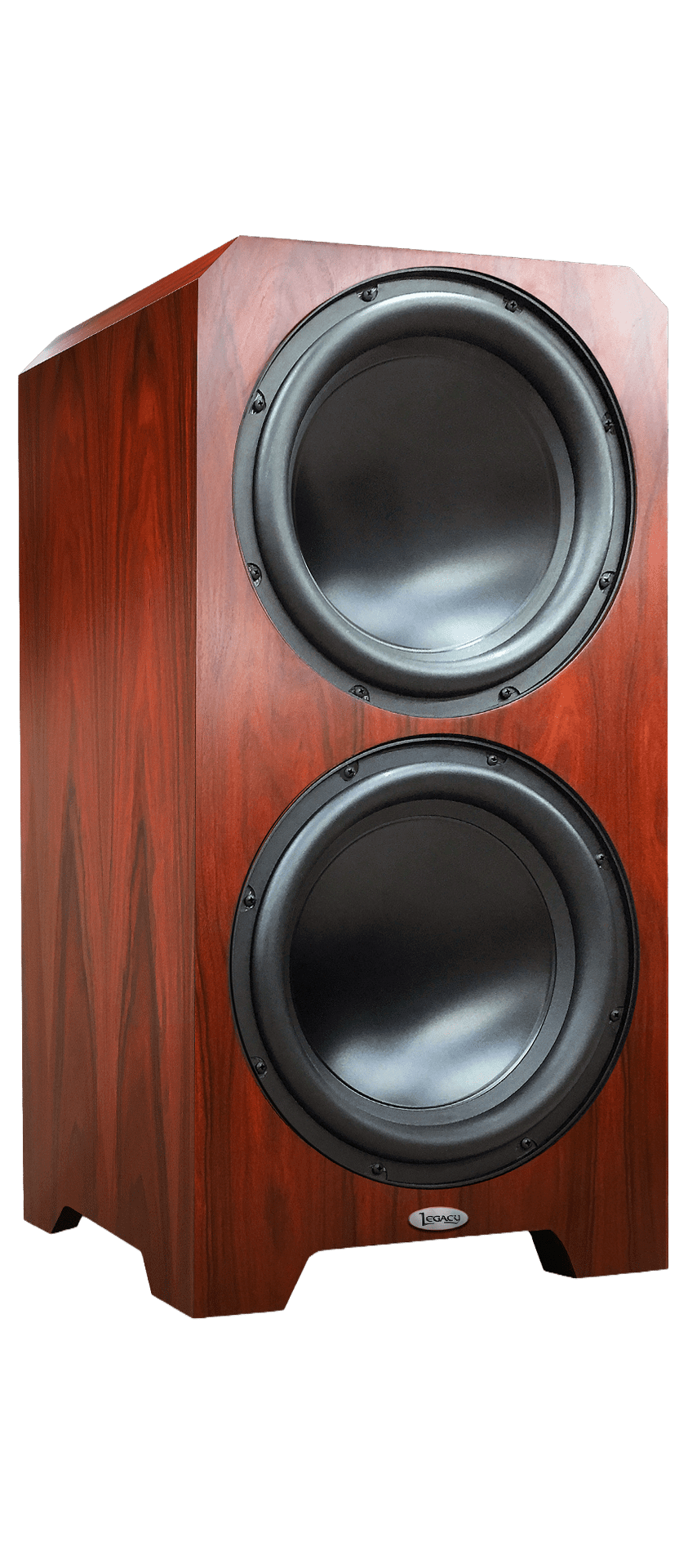

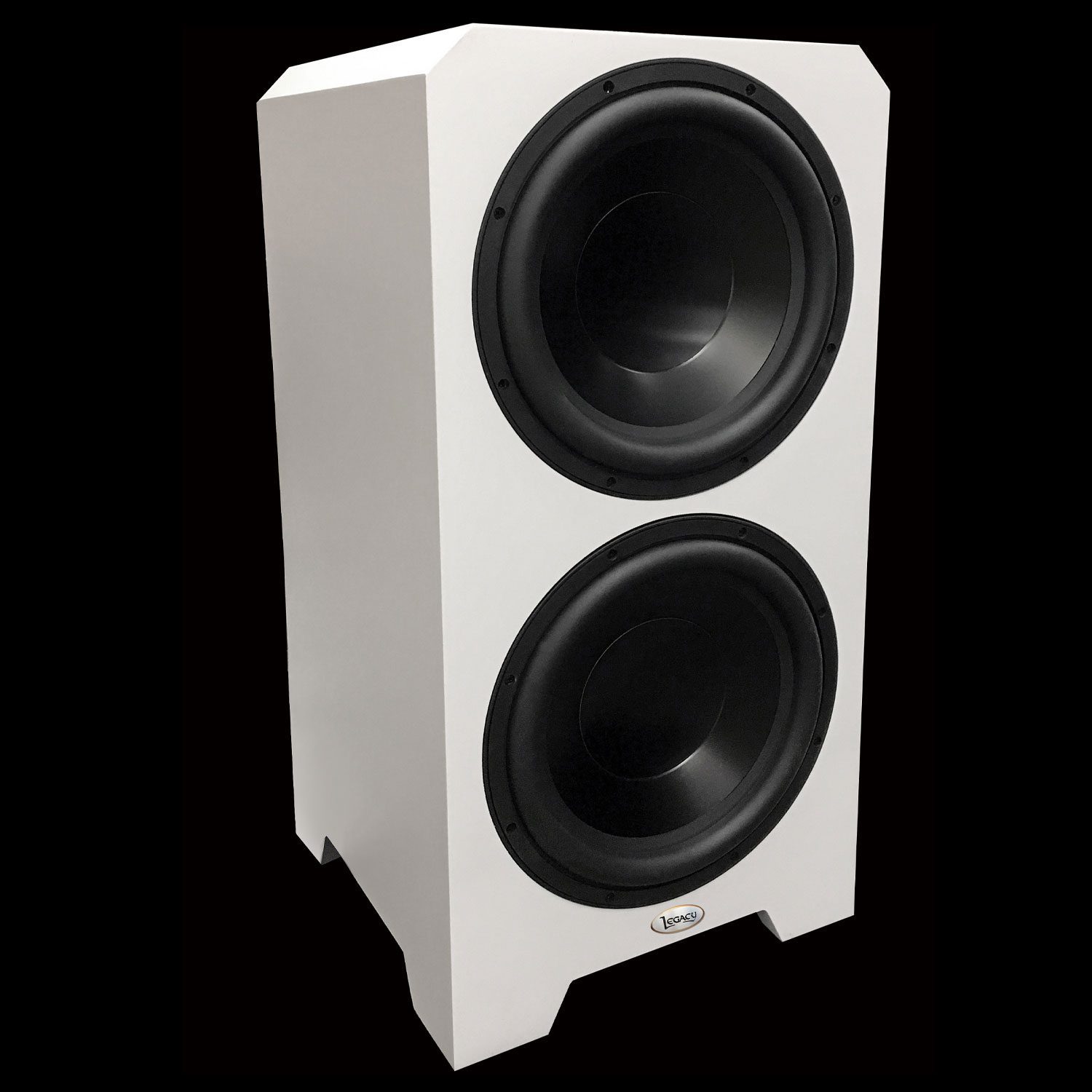

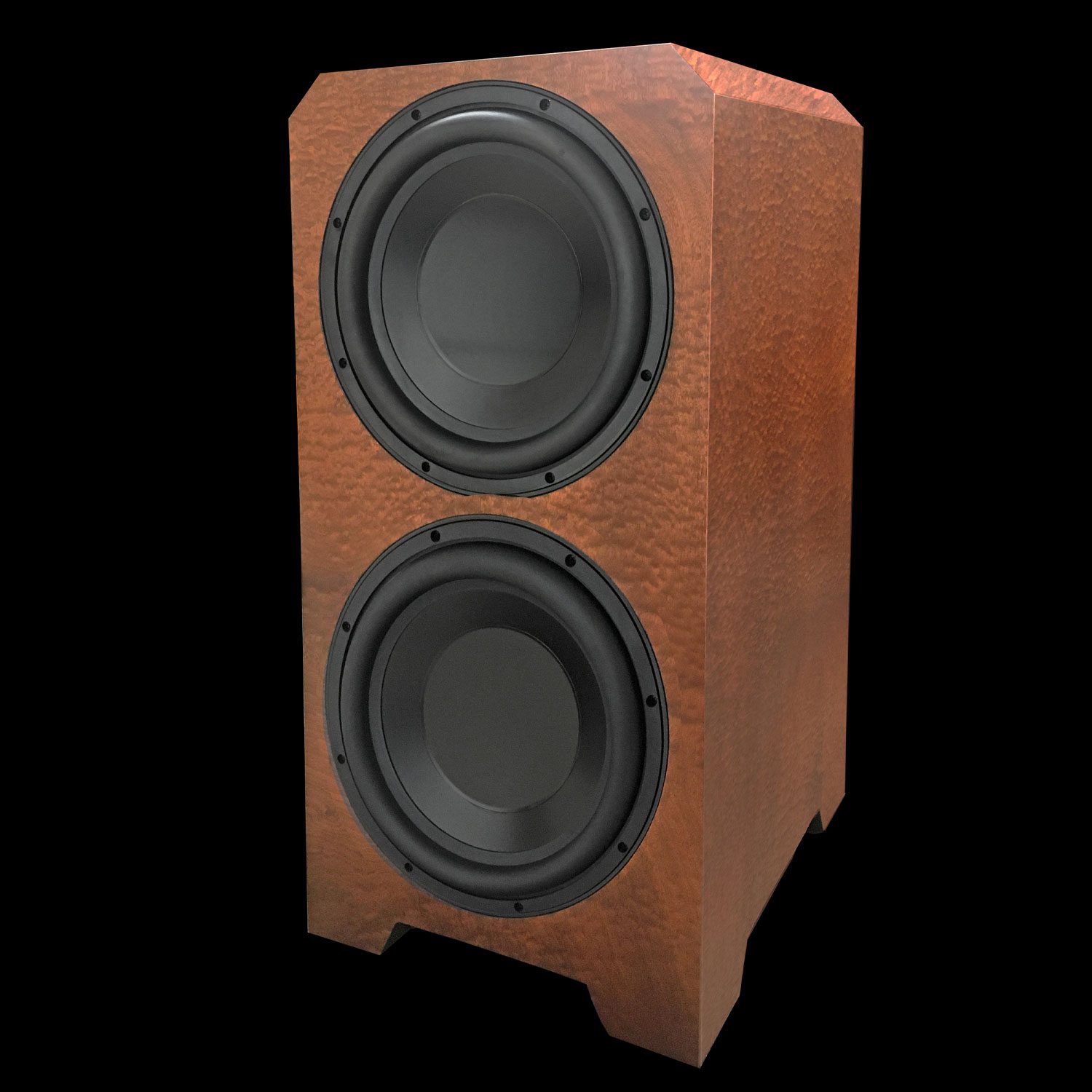

Legacy’s Foundation subwoofer is a dynamic dual sub system, delivering essential lower frequency output. Foundation delivers incredible attack with ultra-low distortion and world class definition utilizing only 1.5 square feet of floor space.
Experience Deep, Accurate Bass with the Legacy Foundation Subwoofer
The Legacy Foundation subwoofer is a high-end solution for adding powerful and defined bass to your audio system. This Legacy Audio home theater subwoofer features a patented compound passive radiator technology, delivering a forceful attack and natural bass weight without mechanical shuddering.
DEFINITION BY DESIGN
Implementing compound passive radiator technology and a pair of Legacy’s renown long throw 12″ woofers, Foundation delivers a more forceful attack, rebounding without the usual mechanical shuddering present in subwoofers. Foundation offers exceptional tonality and bass definition previously unattainable at this price level.
Powered by a 700W internal amplifier, the Foundation subwoofer benefits from 30 amps of peak current to provide tight control over its woofers. The result is a subwoofer with exceptional tonality, low distortion, and impressive bass definition, all within a compact footprint. The Foundation is a a top contender for audiophiles and home theater enthusiasts alike.
| Product Manual | Download Manual |
| Application: | Dynamic dual subwoofer system, delivering essential low frequency output |
| System Type: | Mutually coupled subwoofers, pneumatically loaded |
| Subwoofer: | (2) 12″ spun aluminum diaphragm, 480oz motor structure, cast frame, 3″ dual 4 layer voice coil, 2″ peak to peak travel |
| Passive Radiator: | (2) 12″ Patented Symmetrically Loaded Passive System radiators, 4″ peak to peak travel |
| Low Frequency Alignment: | Electrically assisted 6th order |
| Inputs: | Sub (LFE), L/R RCA, balanced XLR |
| Internal Amplification: | 700 Watts Class D ICEpower® |
| Freq. Response (Hz, +/- 2dB): | 16-120 |
| Impedance: | 10k Ohms |
| Phase Adjustment: | Continuous +/-180 |
| Blend EQ: | +/- 12 dB @45Hz |
| Max SPL: | 120 dB @ 1m |
| Low Pass Filter Slope: | 18 dB per octave |
| Crossover (Hz): | 40-120 |
| Dimensions (HxWxD, inches): | 29 x 14.5 x 15 |
| Weight: | 113 lbs |
PEARL
PEARL
NATURAL SATIN
GLOSS CABERNET
ASH BURL

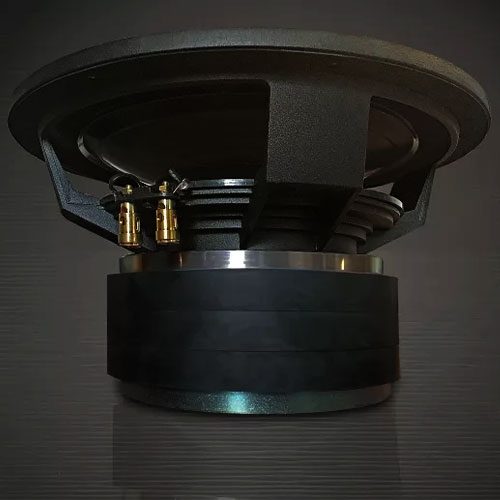

Foundation utilizes a pair of our ultra long throw 12″ subwoofers with a 3″ dual 4 layer voice coil and a 480oz (30lb) motor structure. The powerful motor structure and dual 3″ voice-coils keep the woofer’s heavy cone well damped electrically.

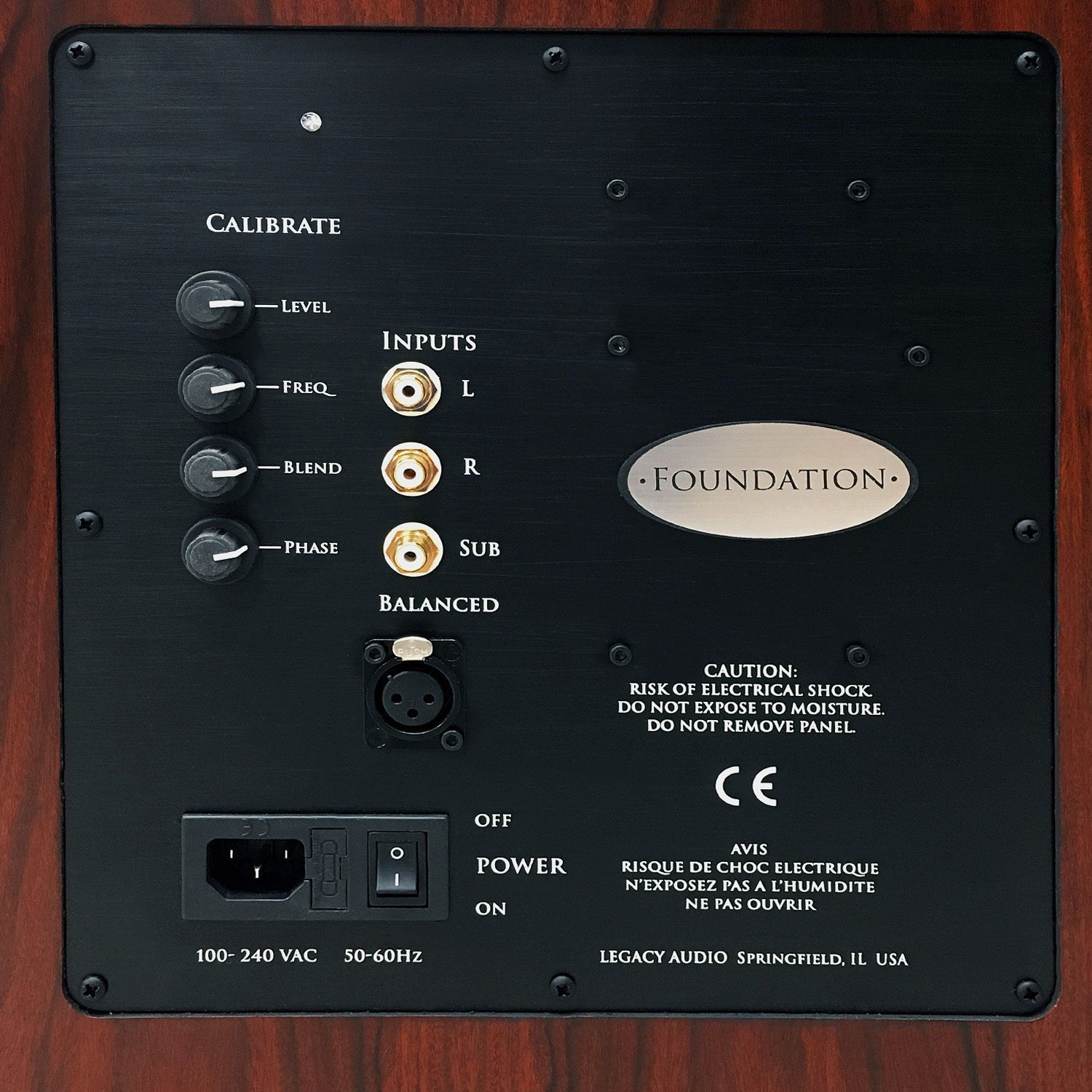

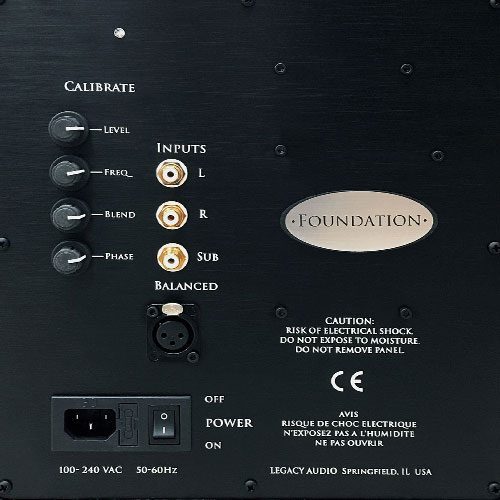

Foundation provides variable level control, continuous phase adjustment and a wide range of crossover frequencies. Also included is our unique blend control to finesse the transition in the overlap area from your main speakers. These controls will allow you to tailor the sound of the sub to your room and integrate with your main speakers.
