PRICE:
Price range: $30,000.00 through $36,000.00

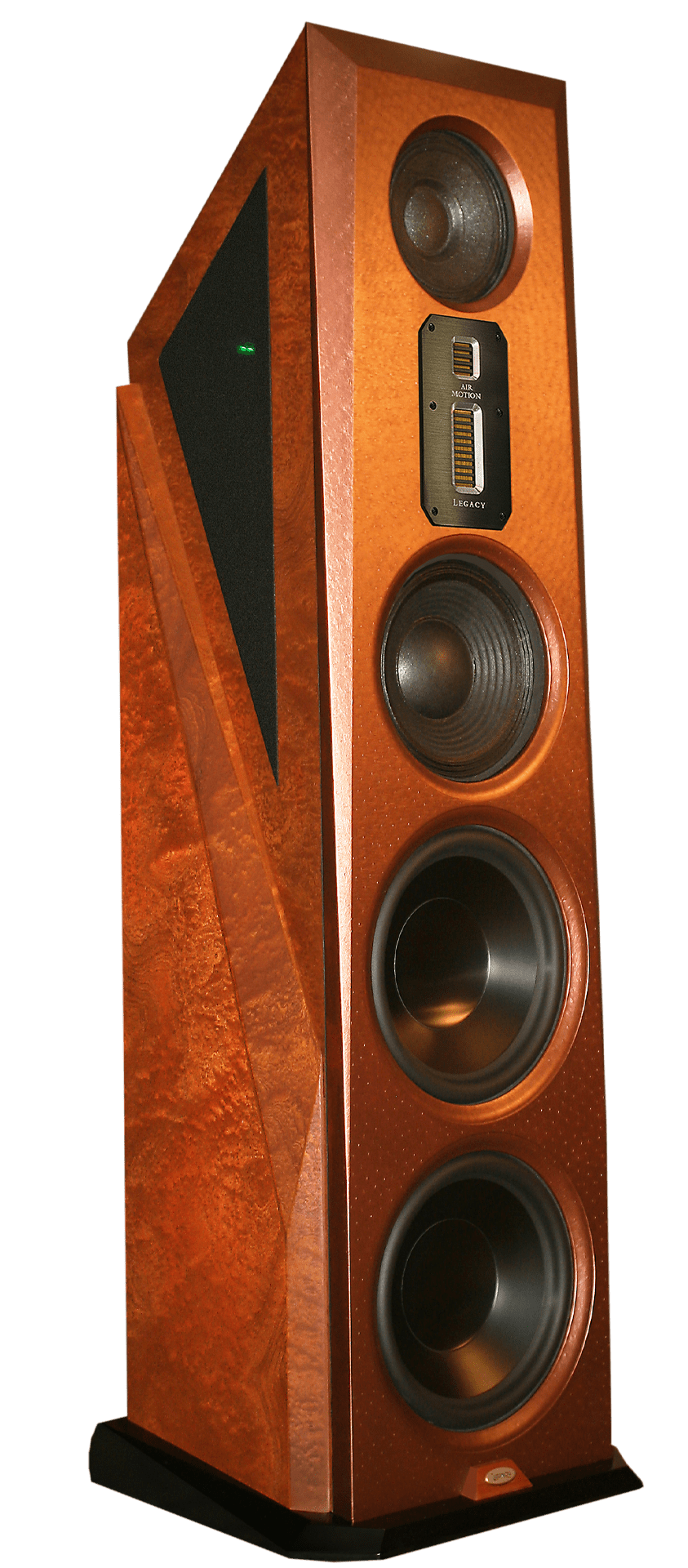

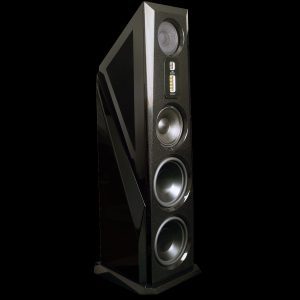

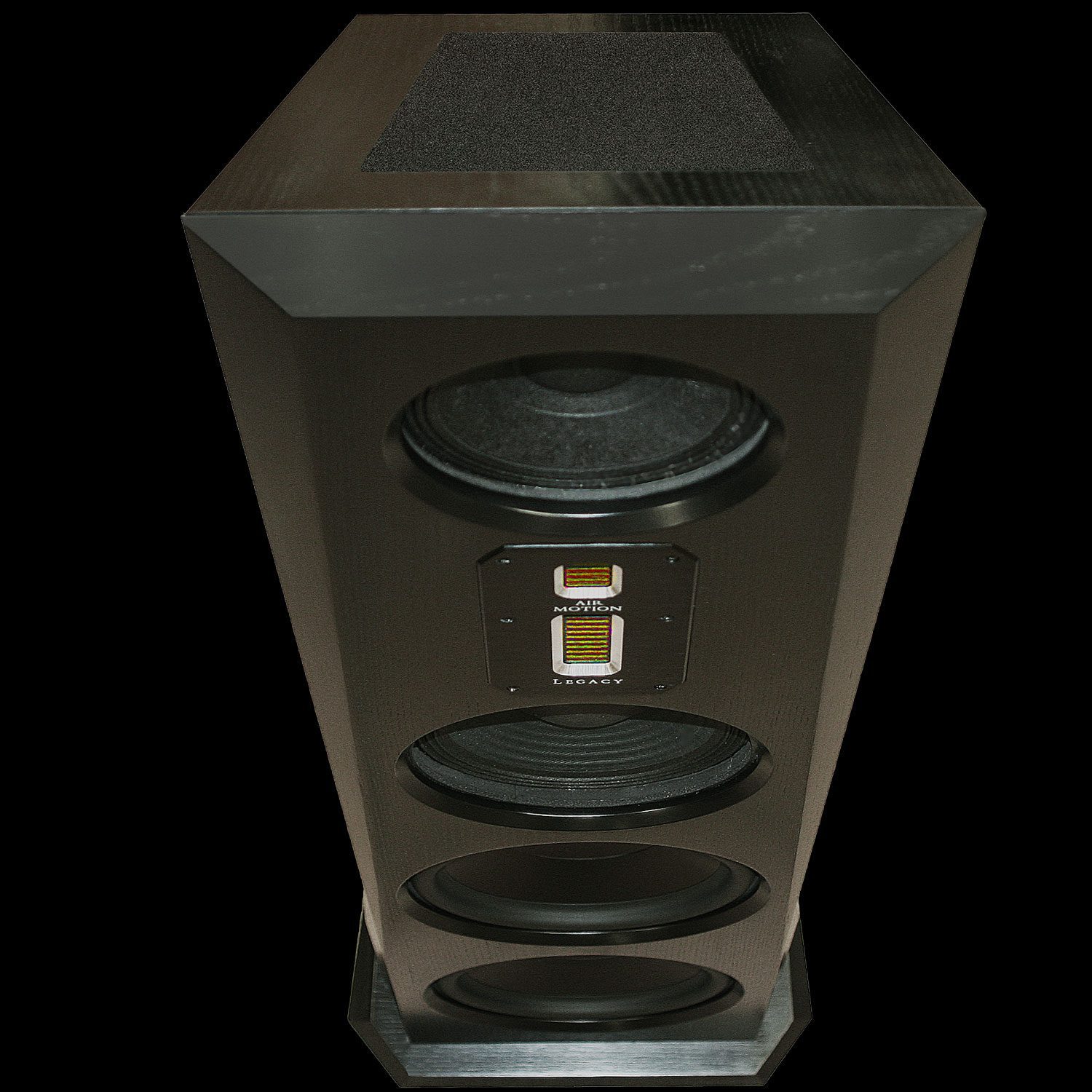

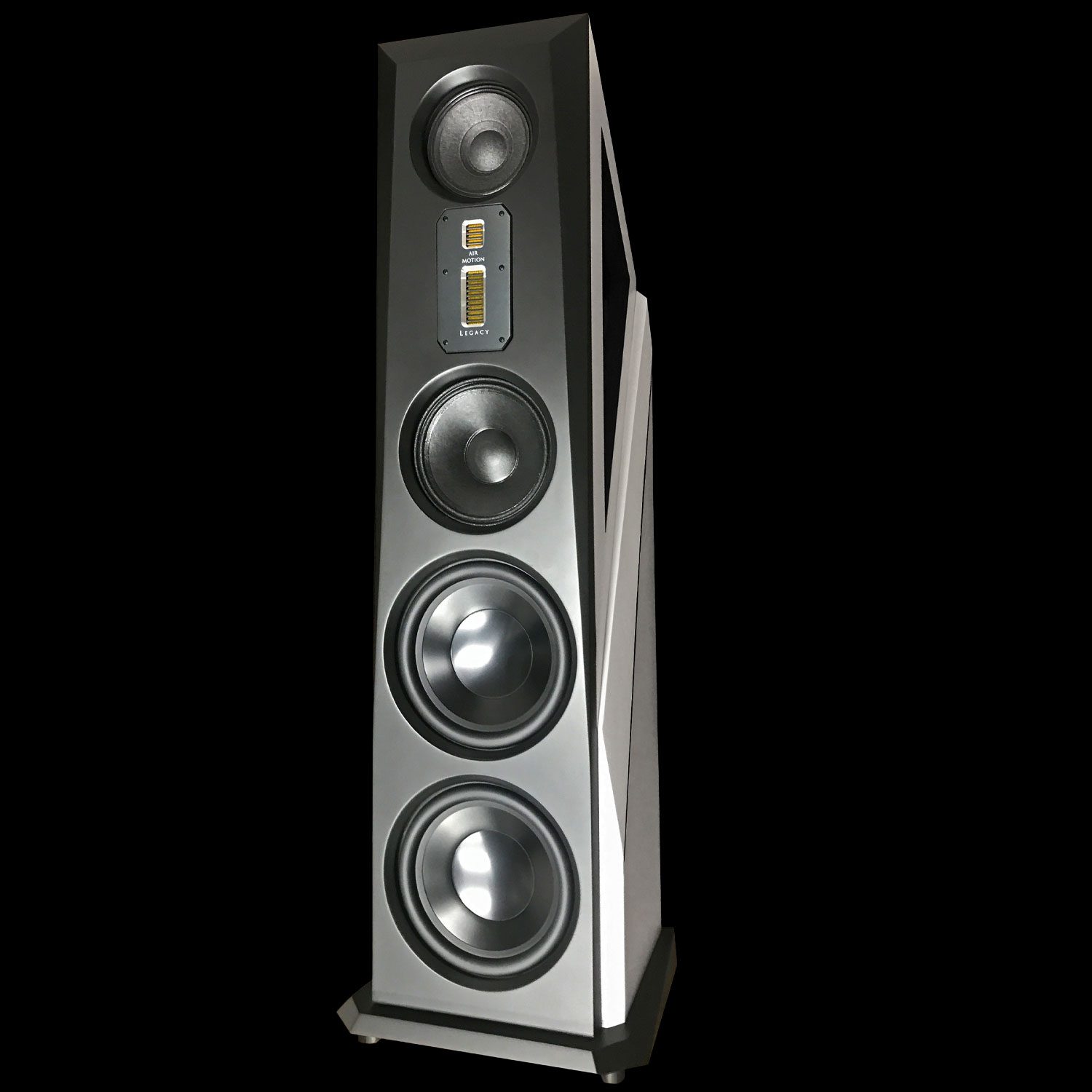

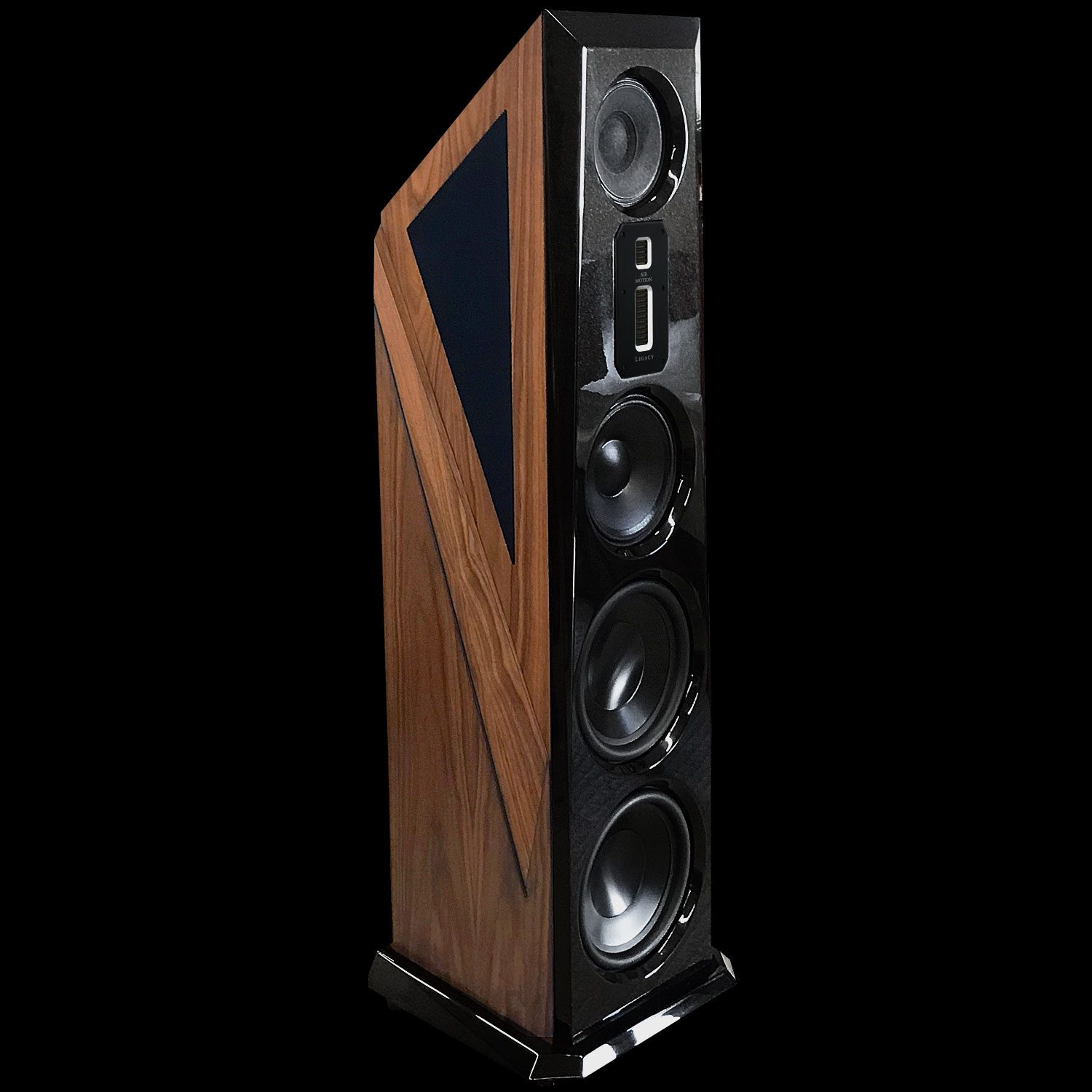

The Aeris XD is a speaker system whose striking looks are matched only by its performance capabilities. This 4.5 way system is the first to use the Legacy Dual Air Motion Tweeter (an advanced AMT design) and features open air dipole midrange, dual subwoofers with internal bass amplification, room correction and premium craftsmanship.
AerisXD: Experience Unrivaled Detail and Optimized Low-Frequency Power
The Aeris XD is an exceptional speaker that delivers outstanding sound quality. It features the Legacy Dual Air Motion Tweeter (an advanced AMT design) for clear high-frequencies and an Italian high efficiency titanium encrusted 8” mid-range with an enormous motor structure.
For powerful, deep bass, it uses a 10-inch mid-bass driver and two large 12-inch subwoofers. These subwoofers have dedicated built-in amplifiers, delivering a combined 1,400 watts of power per speaker to produce bass that is not only deep but also remarkably clean and punchy.
ADVANCED ROOM CORRECTION AND DSP

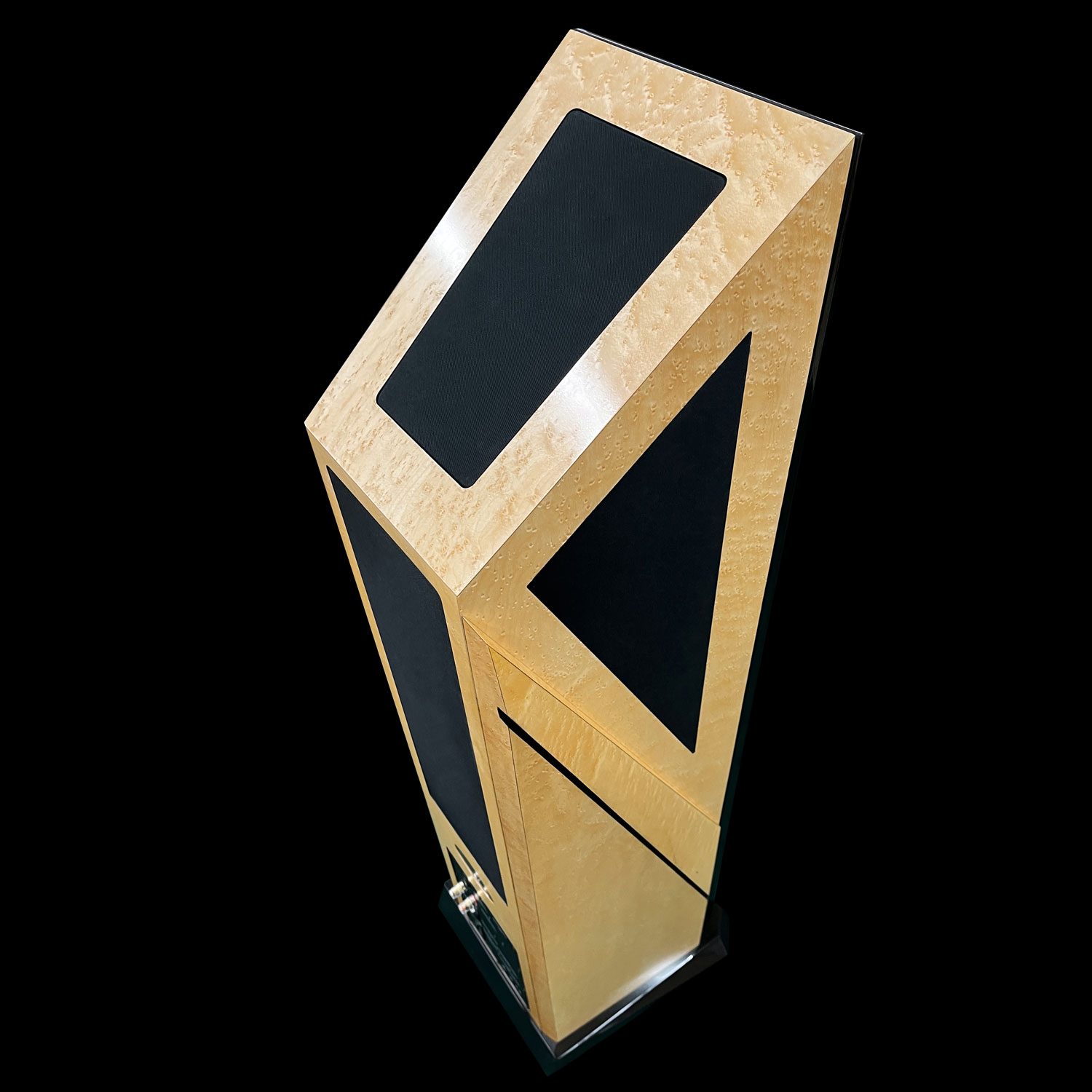

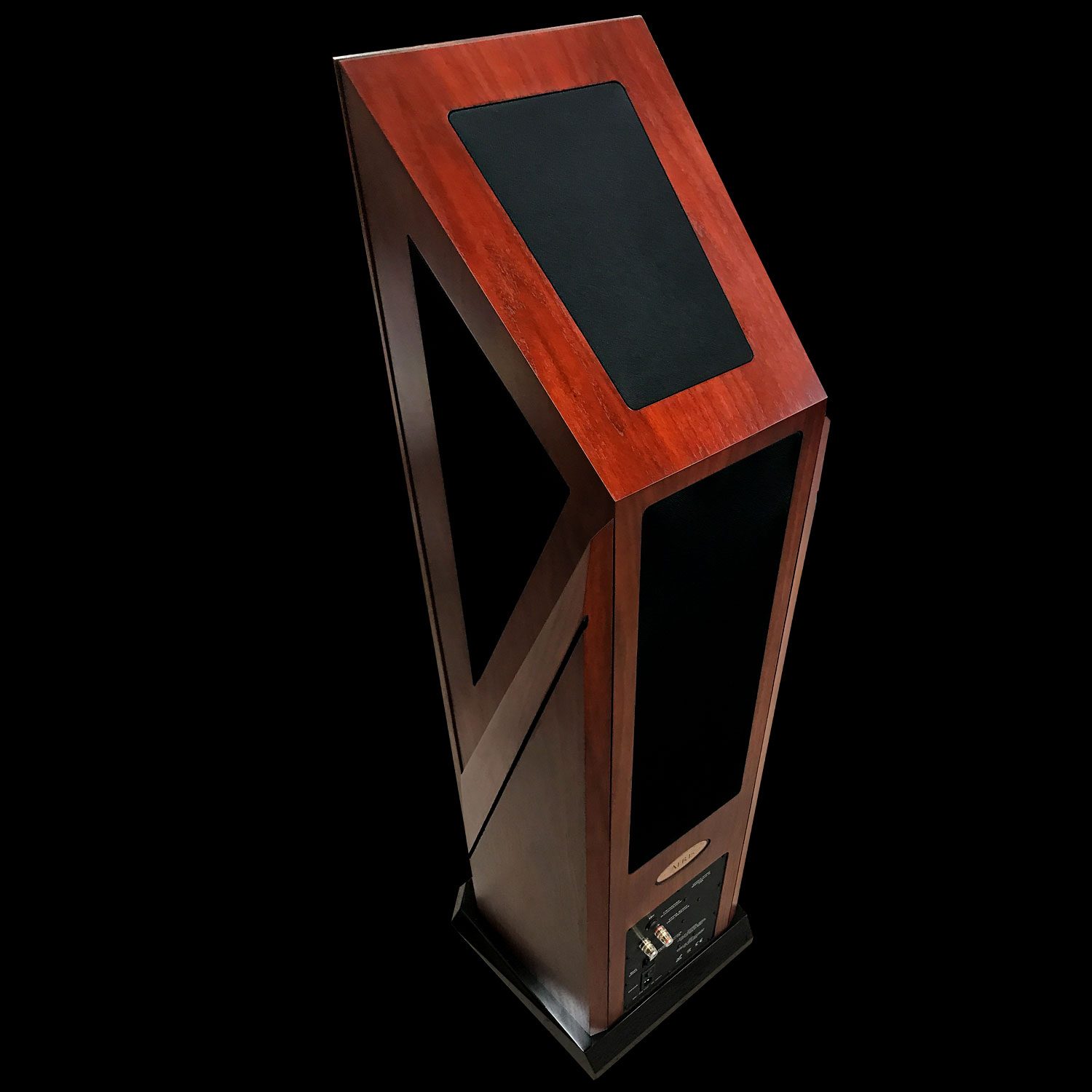

The speaker also includes the acclaimed Wavelet digital processor. This incredible technology adapts the speaker to your room’s unique acoustics, correcting any sound issues to ensure you always get the best possible performance. Its innovative design features an open-air top section, which makes the sound feel more spacious and natural. The cabinet itself is extremely strong and solid with a special LED-lit window to reveal the intricate wiring inside. While the bass drivers are self-powered, the user needs to supply an amplifier for the rest of the speaker system allowing for customization and integration with existing setups.
| Product Manual | Download Manual |
| Application | DSP based bi-amped hybrid dipole |
| System Type | 6 driver, 4.5 way |

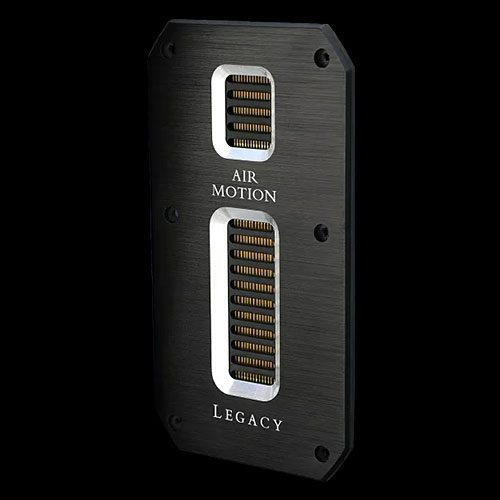

| Tweeter | Dual Air Motion Tweeter System- 1″ AMT super tweeter & 4″ AMT tweeter |
| Midrange | 8″ titanium encrusted, accordion edge with 6 lb magnetic structure |
| Midwoofer | 10″ accordion edge with 10 lb magnetic structure |
| Subwoofer | Dual 12″ ultra-linear bass drivers with 15 lb motor |

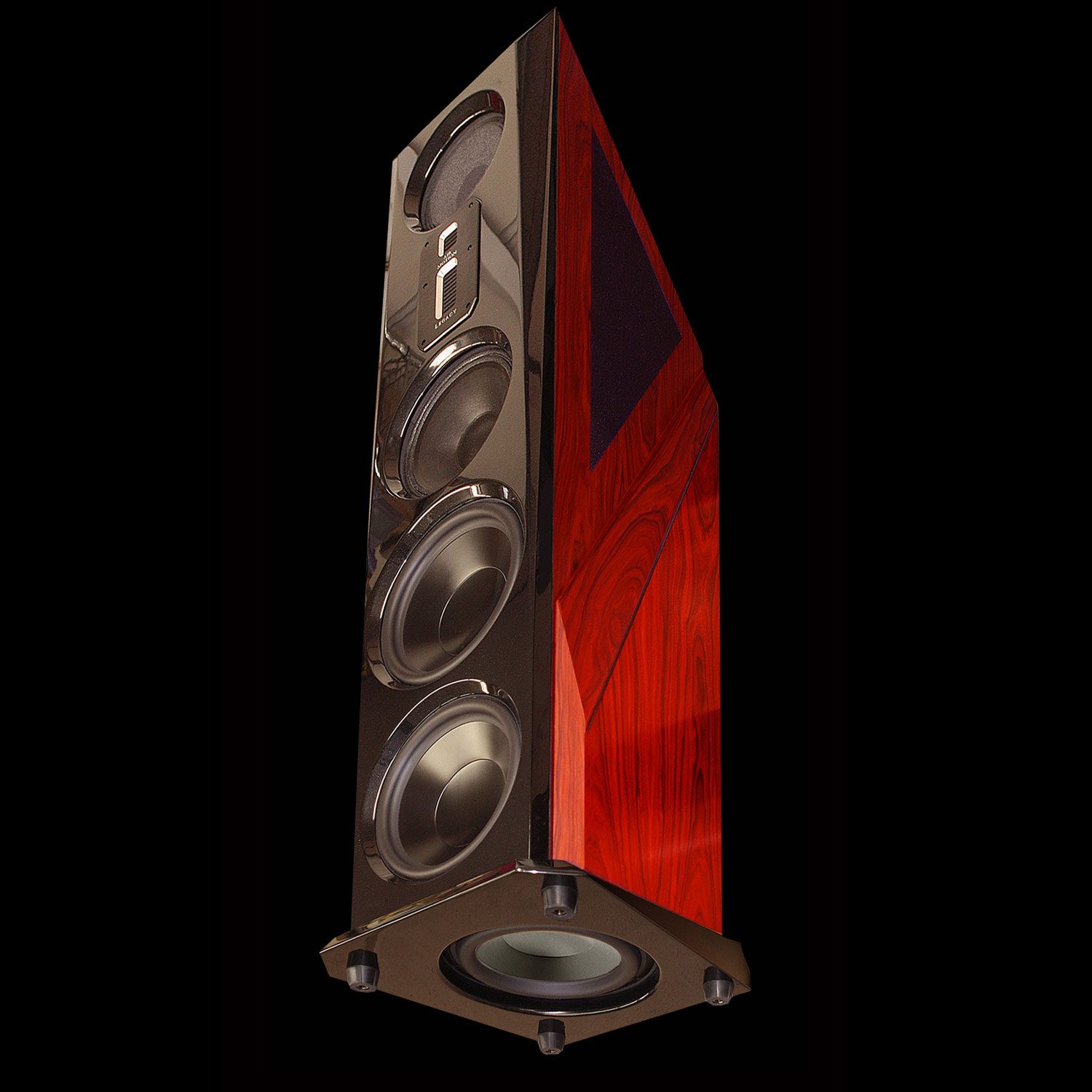

| Passive Radiator | 10″ Mass loaded pneumatic |
| Low Frequency Alignment | Hybrid Cardioid, dual rear ported |

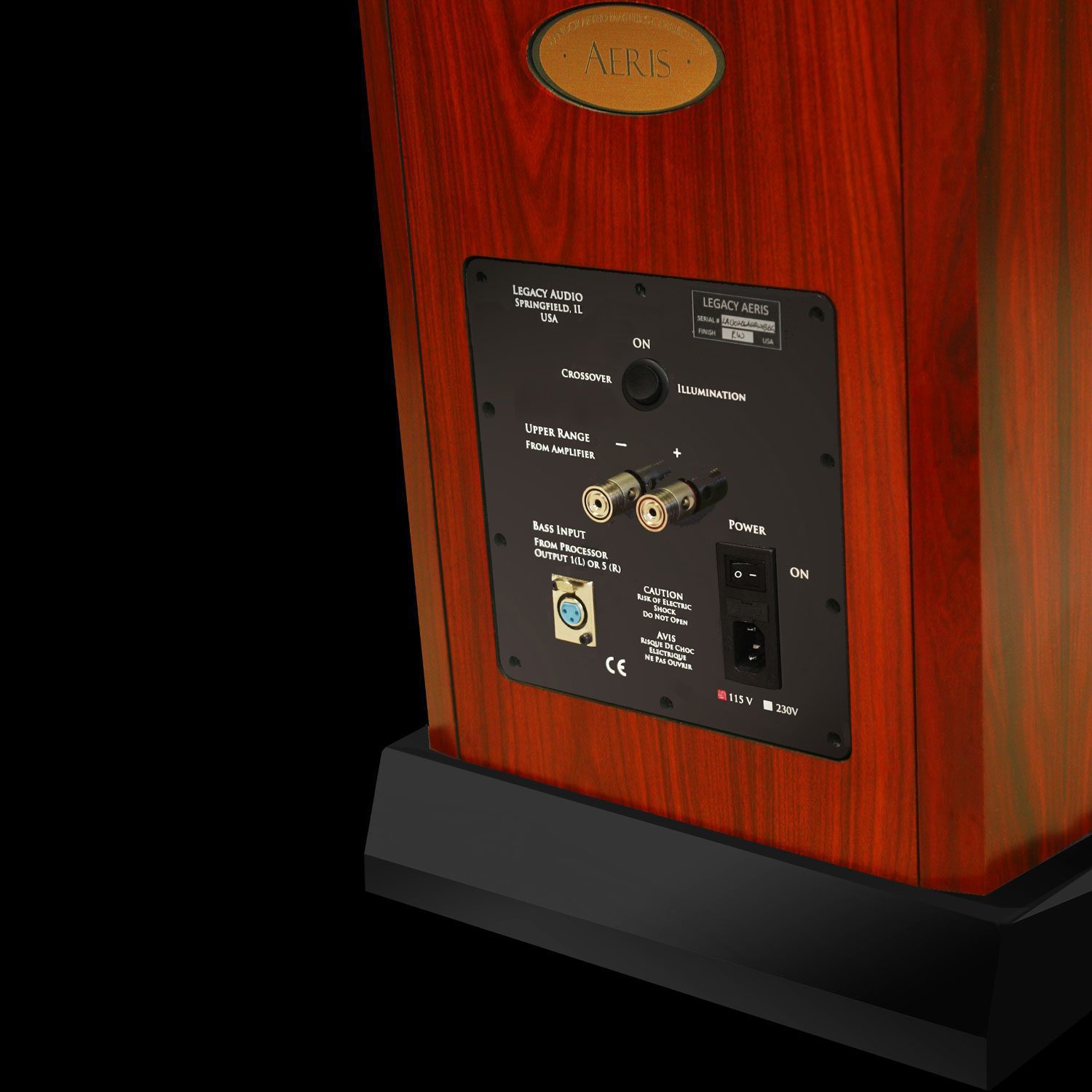

| Inputs | 1 Pair binding posts for Upper range, 1 XLR balanced for Bass |
| Internal Amplification | 1400W via twin 700W amplifiers |
| Recommended Amplification | 1 External channel of 15w or greater required. Bass section is driven with 1,400w of internal power |
| Freq. Response (Hz, +/-2dB) | 18-30k, includes 24 bit processor |
| Impedance | 4 Ohm/ 10k amp Input |
| Sensitivity | 95.4 dB (2.83V@1m) |
| Crossover (Hz) | 80, 2.8k, 8k |
| Cabinet Dimensions HxWxD (inches) | Upper Cabinet: 58 x 14.5 x 16 Base: 1 x 19 x 17.5 |
| Weight | 182 lbs each |
| Shipping Weight | 301 lbs each |
PEARL
PEARL
NATURAL SATIN
GLOSS CABERNET
ASH BURL

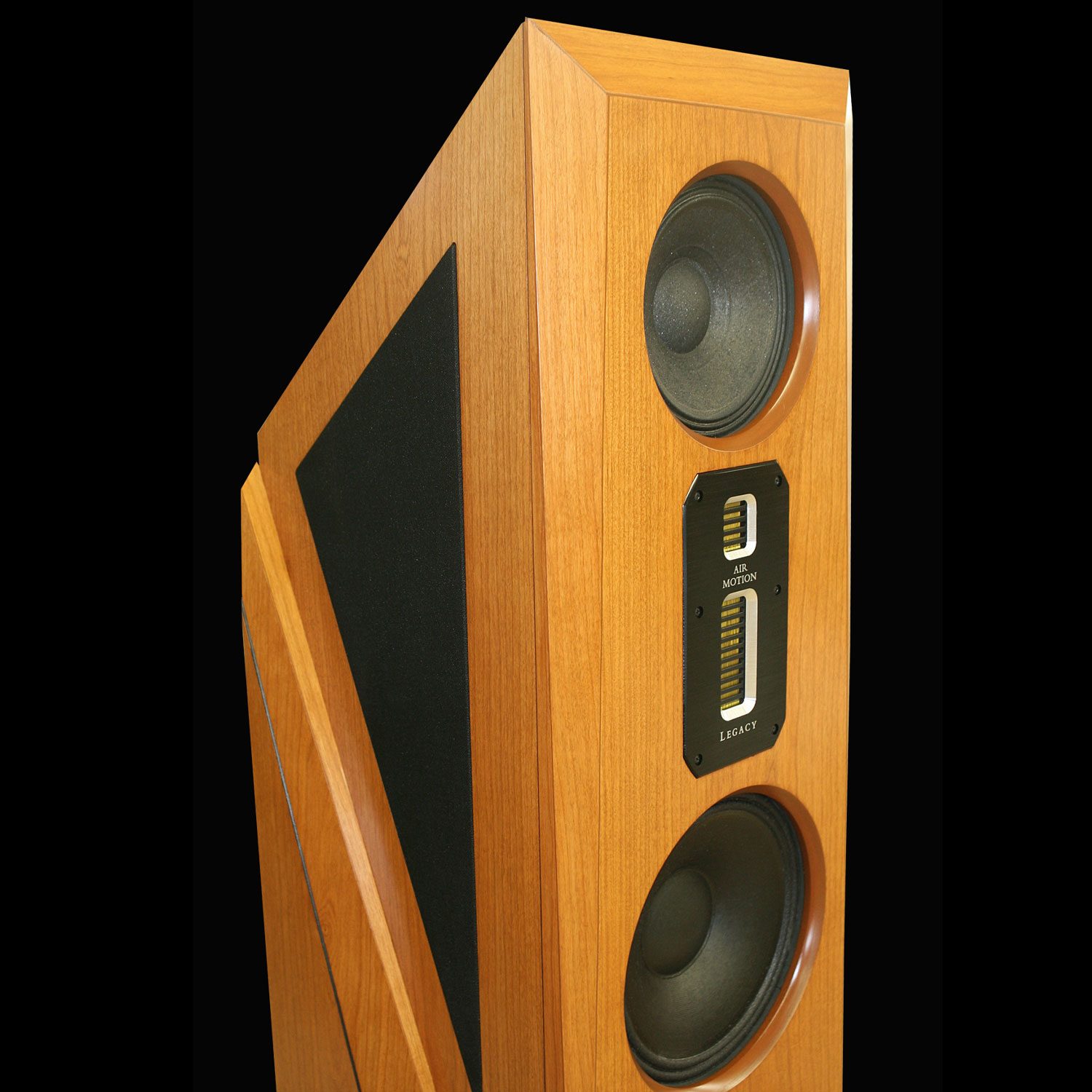

Chief Designer, Bill Dudleston, describes the development of the new AERIS loudspeaker: “…it gave me the opportunity to integrate a new AMT with the smoothest, high efficiency 8” mid-range built to date. The solution was made even more elegant by mounting the new 4” ribbon on the same faceplate as a 1” AMT ribbon super-tweeter. The results were more uniform dispersion and tremendous attack.”

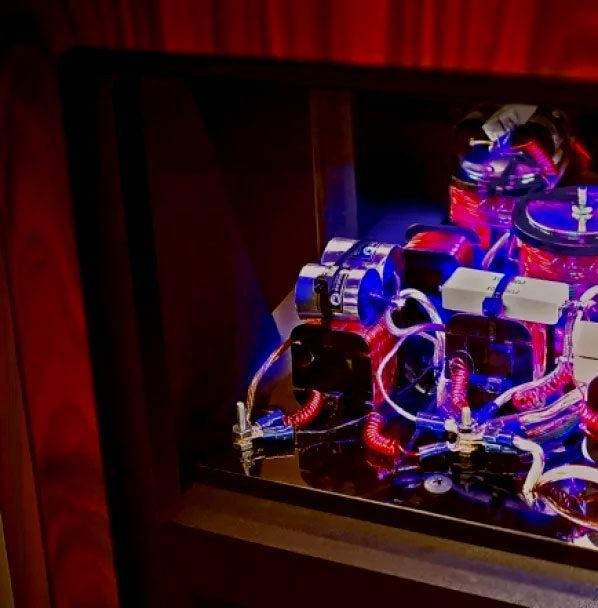

Featuring silver HF wiring, Clarity capacitors, and Oxygen Free Copper point to point wiring with star ground configuration, the upper section crossover is concealed within the Aeris body. The crossover can be illuminated, with the On/Off switch, in your choice of lighting, to show off the intricate details. The dual 12″ subwoofers are actively crossed over and time aligned by the included Legacy Wavelet or Wavelet II processor.
